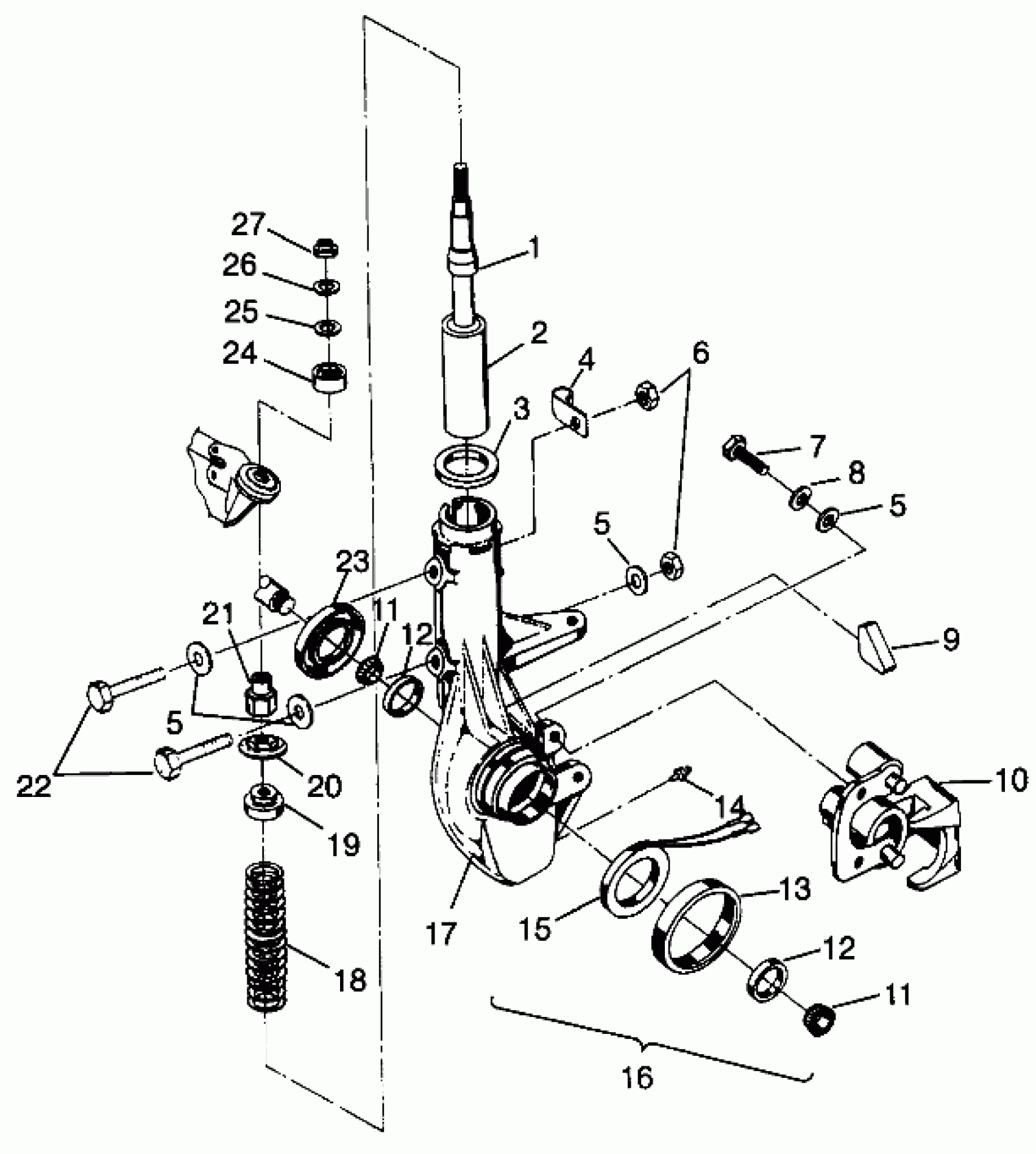

Polaris SPORTSMAN 4X4 - W968040 FRONT STRUT Sportsman 4x4 W968040 (4935943594B006) Diagram

#

Description
Price

1

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

2

STRUT,FRONT,32MM. Substituted by 7041755

7041374

Unavailable

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

NUT FLEX-LOC(10)

7542303

$6.39

7

SCREW, CAP(10)

7512365

$1.49

8

LOCK WASHER(10)

7552901

$1.49

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

Asm., Brake Caliper

-------

Unavailable

11

BEARING,TAPERED ROLLER

3554509

$23.99

11

BEARING,TAPERED ROLLER

3554509

$23.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

SLEEVE,STRUT HUB SEAL

5222193

$59.99

14

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

15

COIL,MAGNET.HVY,W/PLUG-IN Substituted by 2201313 NOTE: Order part numbers marked "

4170010

$121.41

15

COIL,MAGNETIC,HVY. Substituted by 2201313 *

4170016

$121.41

16

HUBSTRUT ASM,LH,HVY. Substituted by 2200975 (Incl. 9, 12-17, 23)

2200609

Unavailable

16

HUBSTRUT ASM,RH,HVY. Substituted by 2200976 (Incl. 9, 12-17, 23)

2200610

Unavailable

16

HUBSTRUT ASM,LH (Incl. 9, 12-17, 23)

2200973

Unavailable

16

HUBSTRUT ASM,RH * (Incl. 2, 9, 12-17, 23) (See NOTE with Ref. 15)

2200974

Unavailable

17

SUPPORT,LH,HUBSTRUT Substituted by 1843054

5131077

Unavailable

17

SUPPORT,RH,HUBSTRUT Substituted by 1843055

5131078

Unavailable

18

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99

19

RETAINER,SPRING,TOP

5220602

Unavailable

20

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

21

SPACER,THREADED

5130668

$27.99

22

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

23

SEAL, HUB STRUT

3610028

$31.99

24

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

25

SPACER-RUBBER

5810291

$3.99

26

WASHER(10)

7555749

$1.49

27

NUT,FLEX LOC(10)

7542507

$3.99
