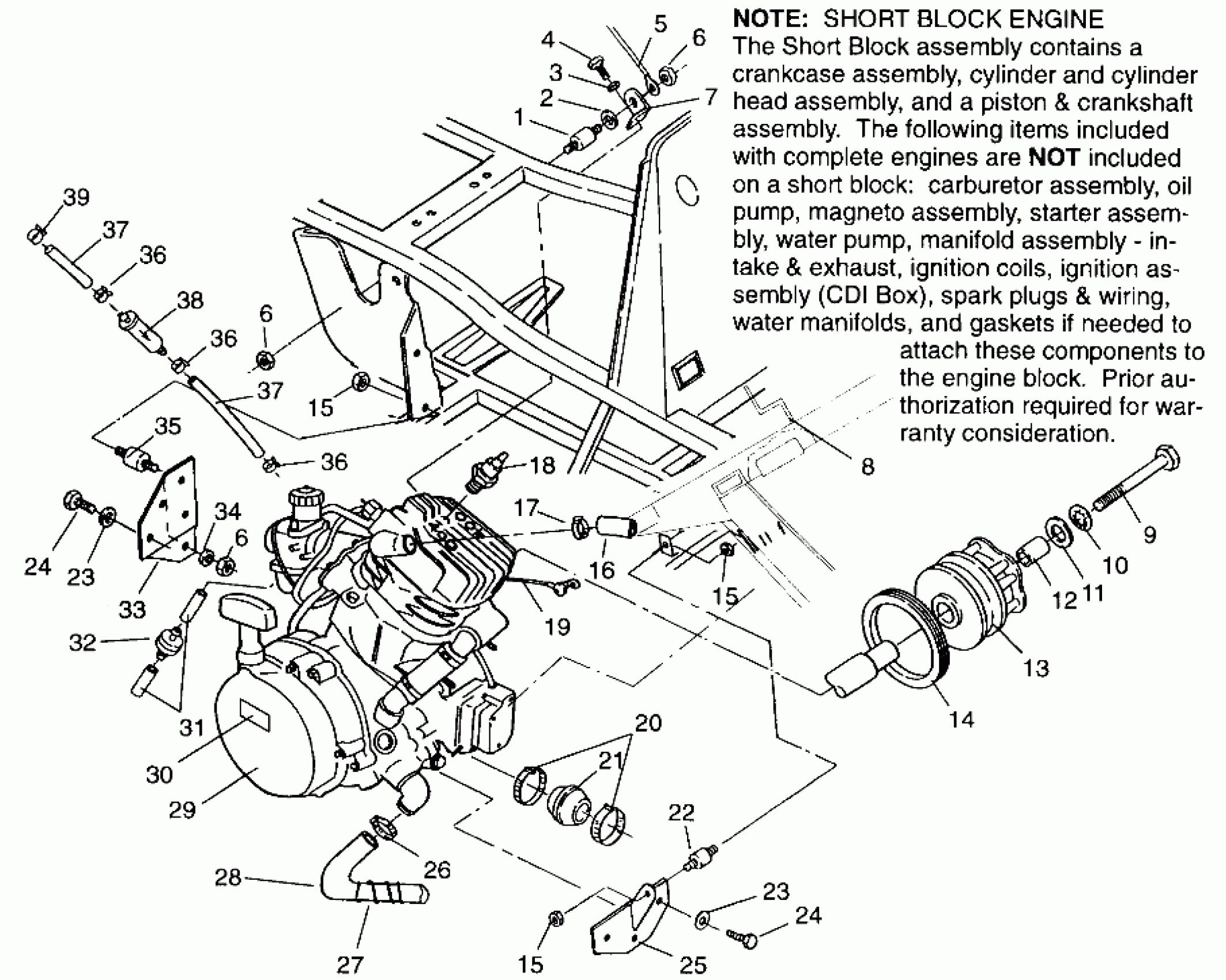

Polaris SPORTSMAN 4X4 - W968040 ENGINE MOUNTING Sportsman 4x4 W968040 (4935943594A010) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

MOUNT,ENG.TOP

5222415-067

Unavailable

8

EDGE TRIM - BLACK Substituted by 5521131

8360012

Unavailable

9

BOLT(10)

7512566

$30.79

10

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

11

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

12

BUSHING-.437 X.770 X.50

5430261

$7.19

13

Asm., Drive Clutch (See Pg., Ref.)

-------

Unavailable

14

Seal, Cover Case (See Pg., Ref.)

-------

Unavailable

15

NUT LOCK(10)

7542403

$3.99

15

NUT LOCK(10)

7542403

$3.99

15

NUT LOCK(10)

7542403

$3.99

16

HOSE,ENG,UPPER

5410570

$44.51

17

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

18

SPARKPLUG (10)

3070156

$3.99

19

INSULATOR-CABLE

5410346

$6.39

20

CABLE,SOLENOID/STARTER

4010064

Unavailable

21

CLAMP, NARROW BAND(10)

7080511

$4.79

22

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

23

MOUNT,MOTOR

3110026

Unavailable

24

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

24

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

25

SCREW(10)

7512490

$3.99

25

SCREW(10)

7512490

$3.99

26

MOUNT,ENGINE

1040231-067

Unavailable

27

CLAMP,HOSE,(10)

7080614

$7.19

28

SPRING,HOSE RETAINER

7041079

$4.95

29

HOSE,LOWER ENGINE

5411173

$91.99

30

ENG.(S.B.)EC38PL-SB [No Longer Available]

3084718

Unavailable

31

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

33

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

34

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

35

WASHER(10)

7555801

$3.99

36

MOUNT,RUBBER,ENG.

3110042

Unavailable

37

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

37

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

37

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

38

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

38

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

39

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

40

HOSE CLAMP, RED

7080003

$1.49
