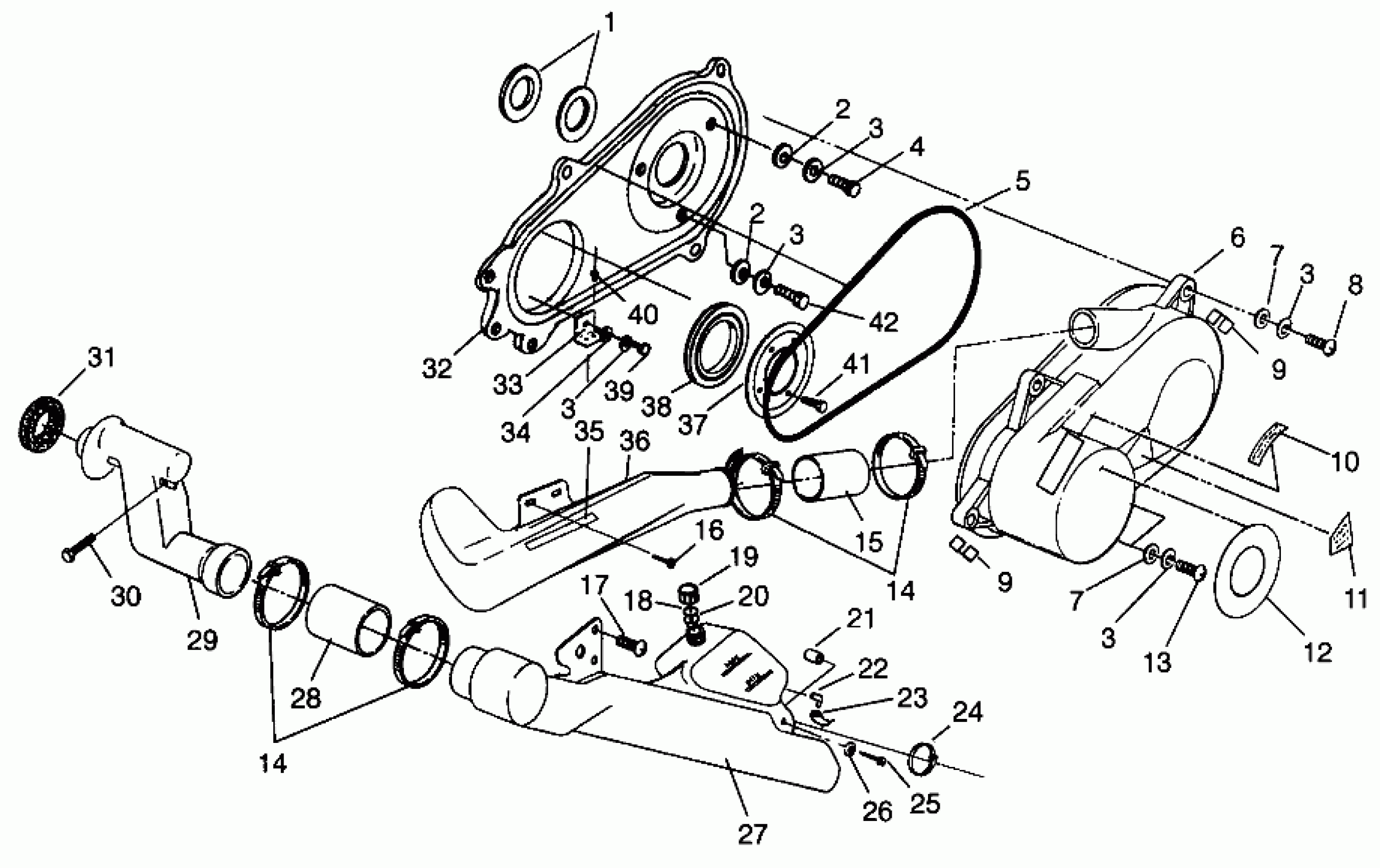

Polaris SPORTSMAN 4X4 - W968040 CLUTCH COVER Sportsman 4x4 W968040 (4935943594C007) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.75

1

SEAL,CVR,CASE 1/2

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

WASHER(10) (Not Used with Hi/Lo Screw)

7552605

$5.69

3

WASHER(10) (Not Used with Hi/Lo Screw)

7552605

$5.69

3

WASHER(10) (Not Used with Hi/Lo Screw)

7552605

$5.69

3

WASHER(10) (Not Used with Hi/Lo Screw)

7552605

$5.69

3

WASHER(10) (Not Used with Hi/Lo Screw)

7552605

$5.69

4

SCREW

7517219

$4.76

5

SEAL,CLUTCHCOVER

5521301

$32.37

6

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

7

WASHER(10) Substituted by 7558301

7555776

$1.19

7

WASHER(10) Substituted by 7558301

7555776

$1.19

8

SCREW(10)

7512093

$1.19

8

SCREW (10) Substituted by 7512281

7515176

$3.97

9

CLIP,CLUTCH COVER(10)

7670051

Unavailable

9

CLIP,CLUTCH COVER(10)

7670051

Unavailable

10

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

13

SCREW(10)

7512094

$1.59

13

SCREW(10)

7515186

Unavailable

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.32

16

BOLT(10)

7512232

$1.19

17

SCREW(10)

7512094

$1.59

18

GASKET-OVERFLOW CAP

5810279

$2.41

19

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

20

PLUG,CAP Substituted by 5433774

5431895

$5.65

21

SPACER, NYLON(10) [No Longer Available]

5432375

Unavailable

22

FITTING,90 DEGREE

7052065

$7.14

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

24

CLAMP, NARROW BAND(10)

7080511

$4.76

25

SCREW(10)

7512025

$4.76

26

WASHER(10)

7555783

$3.97

27

DUCT,INLET,DOWNTUBE

5432336

$133.56

28

BOOT, INTAKE

5410509

Unavailable

29

DUCT, INLET, TOP

5431261

$49.21

30

SCREW(10)

7512017

$4.76

31

SEAL, INTAKE

5810480

Unavailable

32

KIT,CVR,IN.CLUTCH,(400) Substituted by 2201159 (Incl. 8, 17, 39)

2200790

$149.75

33

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

34

WASHER(10)

7555935

$2.38

35

DECAL"DEMAND 4-DRIVE"

7075605

Unavailable

36

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

37

BRKT,RETAINER,SEAL

5222446-067

Unavailable

38

Seal, Cover Case

5410575

$44.51

39

SCREW(10)

7512095

Unavailable

39

SCREW(10)

7515187

$3.02

40

RIVET,INTERLOCK,B(50)

7661638

$1.19

41

Asm., Screw and Washer (See pg., Ref.)

----

Unavailable

42

BOLT(10)

7512278

Unavailable
