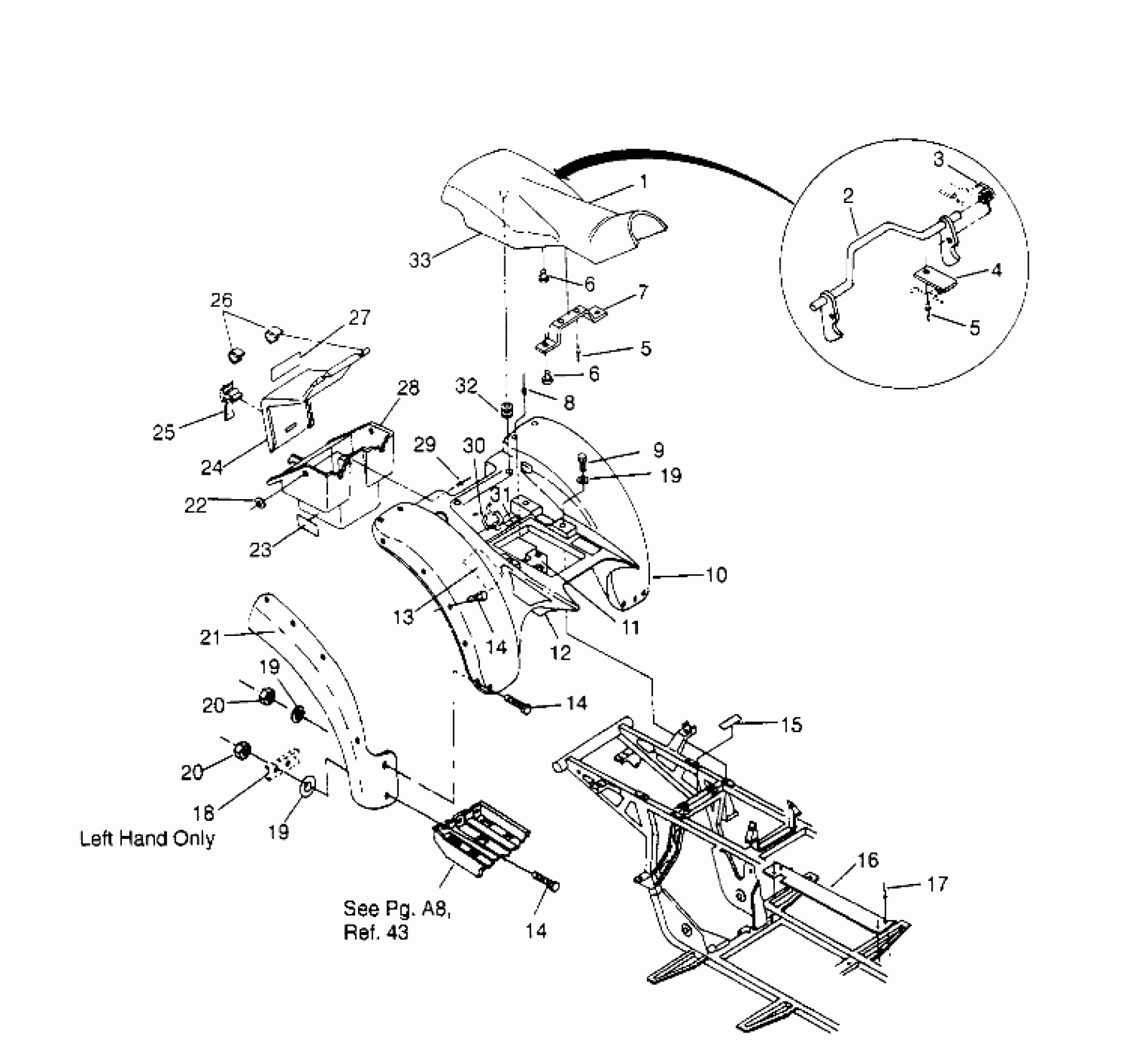

Polaris SPORTSMAN 4X4 - W958040 REAR CAB and SEAT ASSEMBLY Sportsman 4x4 W958040 (4930403040A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),BLK. Substituted by 2682203-070

2681724-070

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$29.25

5

BLIND RIVET(50)

7621403

$1.49

5

BLIND RIVET(50)

7621403

$1.49

6

Bumper, Rubber

5410414

$3.19

6

Bumper, Rubber

5410414

$3.19

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.49

9

BOLT(10)

7512232

$1.49

10

CAB,REAR,OLV.GRN.

5431271-191

Unavailable

11

BRKT,R.HOLDDOWN

5220880

Unavailable

12

Foil, Rear Cab

5810957

Unavailable

13

Foil, Rear Cab, Small

5810991

Unavailable

14

BOLT, BLACK(10)

7512282

$1.49

14

BOLT, BLACK(10)

7512282

$1.49

15

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

15

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

16

GUARD,CLUTCH,OUTER

5222860-067

$7.06

17

RIVET-3/16-.090-.290

7661637

$1.49

18

BRKT, LH MUD FLAP

5211131-067

Unavailable

19

WASHER, FLAT(10)

7555859

$1.49

19

WASHER, FLAT(10)

7555859

$1.49

19

WASHER, FLAT(10)

7555859

$1.49

20

NUT-LOCK(10)

7542122

$1.49

20

NUT-LOCK(10)

7542122

$1.49

21

MUDFLAP, LH, FULL

5850107

Unavailable

21

MUDFLAP,RH,FULL (w/Output Brk.)

5850110

$58.39

22

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

23

TAPE, FOIL

5810310

Unavailable

24

LID,TOOLBOX,OLV.GRN.

5430769-191

Unavailable

25

STRAP,TOOL COMPARTMENT

5410425

Unavailable

26

CLIP, LID HINGE(10)

7670050

Unavailable

27

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

28

BOX,TOOL COMP.

5430882

Unavailable

29

RIVET(50)

7621462

$1.49

30

RETAINER,TOOL POUCH

7080385

Unavailable

32

Grommet

5411042

Unavailable

33

COVER,SEAT,BLACK

2681723-070

Unavailable
