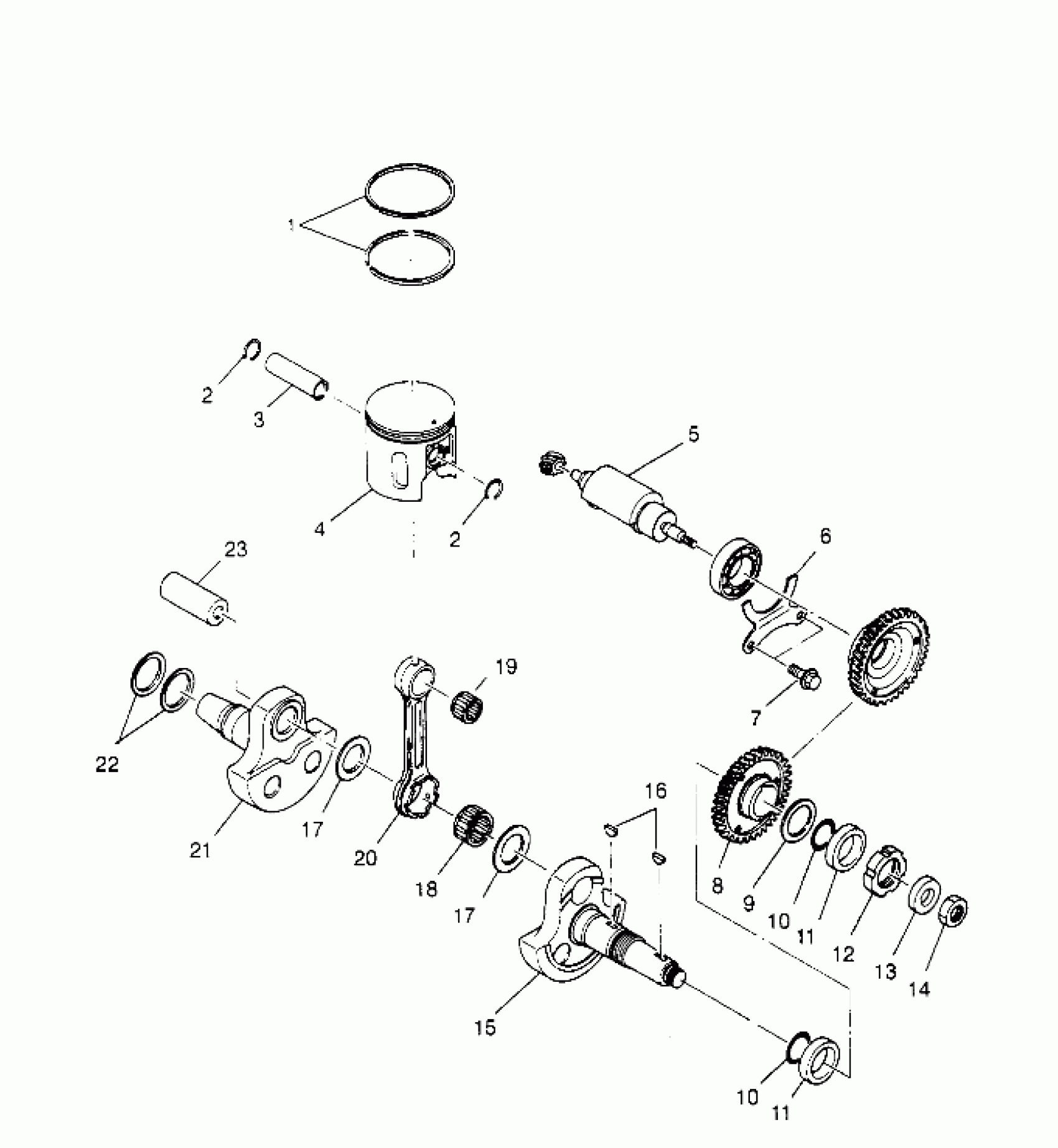

Polaris SPORTSMAN 4X4 - W958040 PISTON and CRANKSHAFT Sportsman 4x4 W958040 (4930403040D001) Diagram

#

Description
Price

-

RING,PISTON,(.50MM O/S) (0.50/.020mm O/S)

3084739

$23.99

1

RING,PISTON,(.25MM O/S) * (0.25/.010mm O/S)

3084738

$31.99

1

RING,PISTON,STD. (Std)

3084737

$28.56

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

3

Pin, Piston

3083838

$27.99

4

PISTON,(.25MM O/S) (0.25/.010mm O/S)

3084735

Unavailable

4

PISTON,(.50MM O/S) (0.50/.020mm O/S)

3084736

Unavailable

4

PISTON,STD. (Std)

3084734

Unavailable

5

BALANCER Substituted by 3087042

3084172

Unavailable

6

PLATE Substituted by 3086768

3084173

$25.40

7

BOLT, FLANGE Substituted by 3086769

3084174

Unavailable

8

GEAR, DRIVE *

3084156

$110.32

9

WASHER, GUIDE Substituted by 3086764

3084159

Unavailable

10

O RING

3084160

Unavailable

10

O RING

3084160

Unavailable

11

COLLAR Substituted by 3086763

3084158

Unavailable

11

COLLAR Substituted by 3086763

3084158

Unavailable

12

NUT, SLIT Substituted by 3086762

3084157

Unavailable

13

WASHER Substituted by 3086767

3083904

Unavailable

14

LOCKNUT

3083905

Unavailable

15

CRANKSHAFT #1,MAG SIDE

3084149

$216.99

15

CRANKSHAFT ASM. * (Incl. 15, 17, 18, 20, 21, 23)

3084776

Unavailable

16

KEY Substituted by 3081543

3080130

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

18

Bearing, Large End

3084154

Unavailable

19

Bearing, Small End

3084168

$31.99

20

Rod, Connecting

3084153

Unavailable

21

CRANKSHAFT #2,PTO SIDE

3084777

$149.99

22

SPACER #2 Substituted by 3086766

3084779

Unavailable

22

SPACER #1 Substituted by 3086765

3084778

Unavailable

23

PIN, CRANK #1

3084152

$78.39
