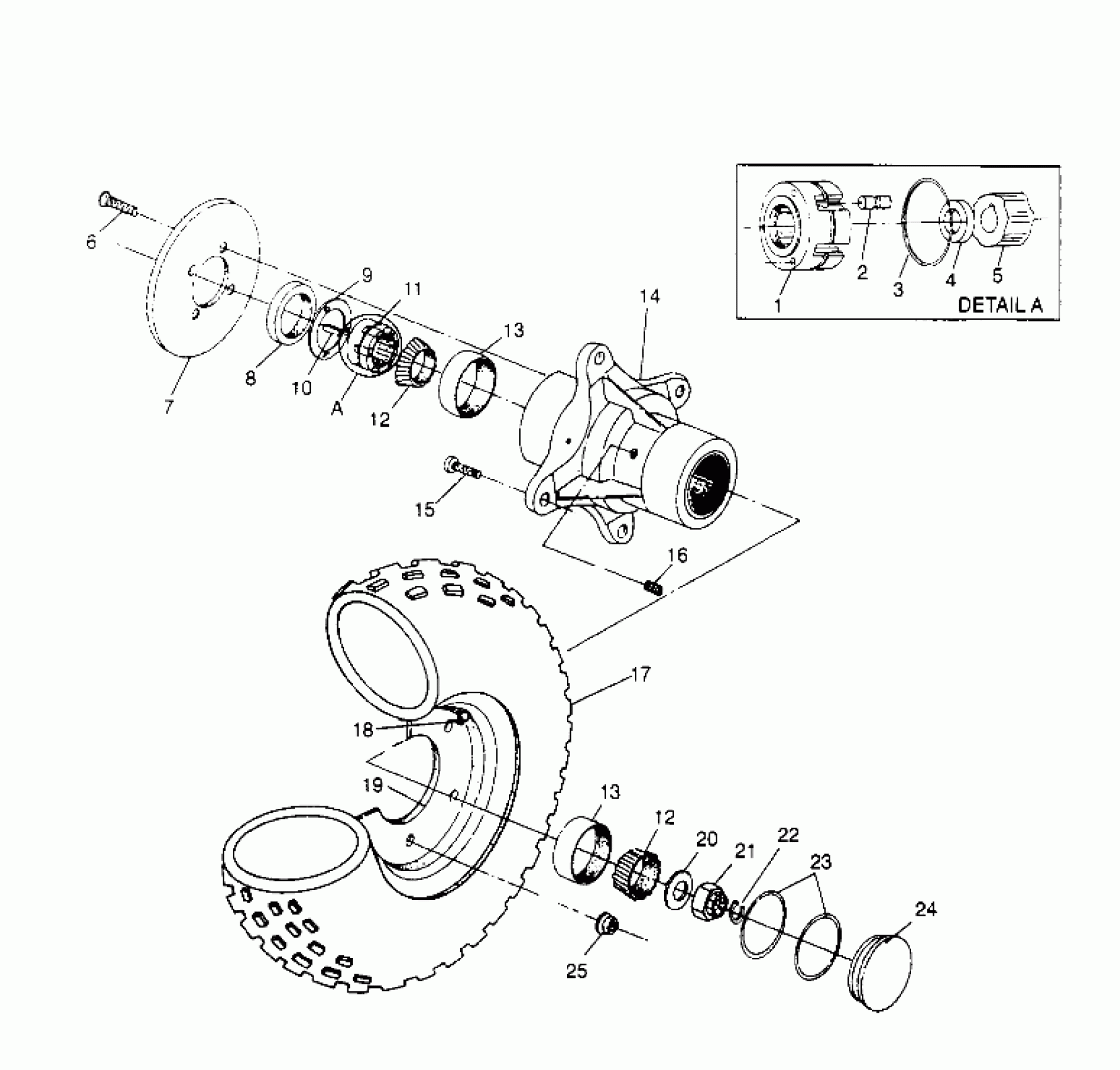

Polaris SPORTSMAN 4X4 - W958040 FRONT WHEEL ASSEMBLY Sportsman 4x4 W958040 (4930403040B007) Diagram

#

Description
Price

1

Cage, Roll

3250028

$218.56

2

ROLLS

3250010

$35.99

3

SPRING,GARTER

3250032

$17.59

4

SPACER Substituted by 1321814

3250031

$24.99

5

Cam

3250030

$198.48

6

BOLT(10)

7515321

$1.49

7

DISC, BRAKE Substituted by 5242935

5211326

$89.03

8

SEAL, FR. HUB

3610019

$35.99

9

Plate, Armature

5211148

$23.99

10

KEY

7721115

Unavailable

11

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

1520214

$354.99

12

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER,ROLL CUP

3554507

$31.99

13

BRG,TAPER,ROLL CUP

3554507

$31.99

14

HUB ASM,W/BRG.RACE (Incl. 8, 13, 15)

1520182

Unavailable

15

STUD(10)

7515523

$3.19

16

PLUG,PIPE

7052045

$12.79

17

TIRE,FR(25X8-12) (25x8x12)

5410947

Unavailable

18

VALVE-RIM

1525017

$5.59

19

RIM,FRONT(SPORTSMAN) Substituted by 1520269-067

1520179-067

Unavailable

20

WASHER(10)

7555903

Unavailable

21

NUT,LH THREAD

7543204

Unavailable

21

NUT,RH THREAD

7543201

Unavailable

22

RING,RETAINING(10)

7710436

$4.79

23

O RING

5410470

$2.41

24

CAP, HUB

5431368

$23.99

25

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59
