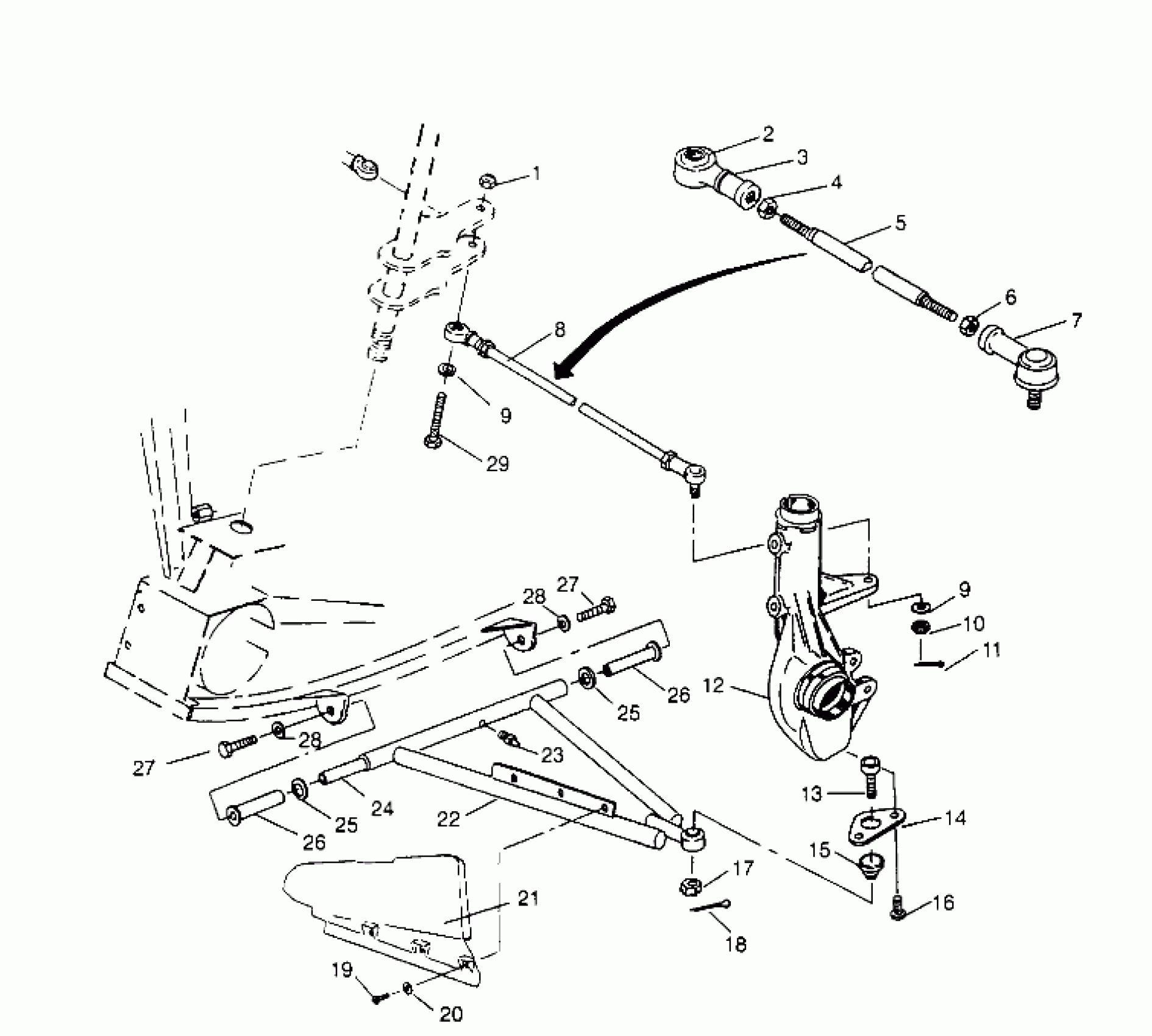

Polaris SPORTSMAN 4X4 - W958040 A-ARM/STRUT MOUNTING Sportsman 4x4 W958040 (4930403040B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BOOT, SEAL, ROD END

5410540

$7.14

3

ROD END, RH Substituted by 1822179

7060149

Unavailable

4

NUT HEX(10)

7542401

$2.38

5

ROD, TIE

5020745

$53.32

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END,LH,W/FTG,10 MM.

7060171

$60.70

8

TIEROD ASM,RELUBE

1822309

Unavailable

9

WASHER(10)

7555806

$0.79

9

WASHER(10)

7555806

$0.79

10

NUT, CASTLE(10)

7546904

$4.76

11

PIN COTTER(10)

7661203

$1.19

12

Kit - Hub Strut, LH (See Pg. , Ref. )

----

Unavailable

12

Kit - Hub Strut, RH (See Pg. , Ref. )

----

Unavailable

13

BALL JOINT Substituted by 7080673

7080364

$28.32

14

BRACKET-BALL JOINT

5211121

$32.37

15

Boot, Rubber

5410548

$4.84

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

COTTER PIN(10)

7661401

$0.79

19

SCREW(10)

7512017

$4.76

20

WASHER(10)

7555792

$4.76

21

SHIELD,LH.CV,BLK.

5431837

Unavailable

21

SHIELD,RH.CV,BLK.

5431838

Unavailable

22

KIT,A-FRAME,LH (Incl. 18, 22, 23, 25-28)

2200627

$151.99

22

KIT,A-FRAME,RH (Incl. 18, 22, 23, 25-28)

2200628

$151.99

23

ZERK,FITTING,THREADED(10)

7080433

$1.19

24

Shaft, A-Arm

5020681

$33.24

25

BUSHING,A-ARM SPACER(10)

5020677

$10.32

25

BUSHING,A-ARM SPACER(10)

5020677

$10.32

26

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

26

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

27

BOLT(10) Substituted by 7512492

7515458

$1.19

27

BOLT(10) Substituted by 7512492

7515458

$1.19

28

WASHER(10)

7552603

$0.79

28

WASHER(10)

7552603

$0.79

29

BOLT(10) Substituted by 7515554

7515507

Unavailable
