REAR CAB ASSEMBLY Sportsman 4x4 W948040 (4926842684A006)

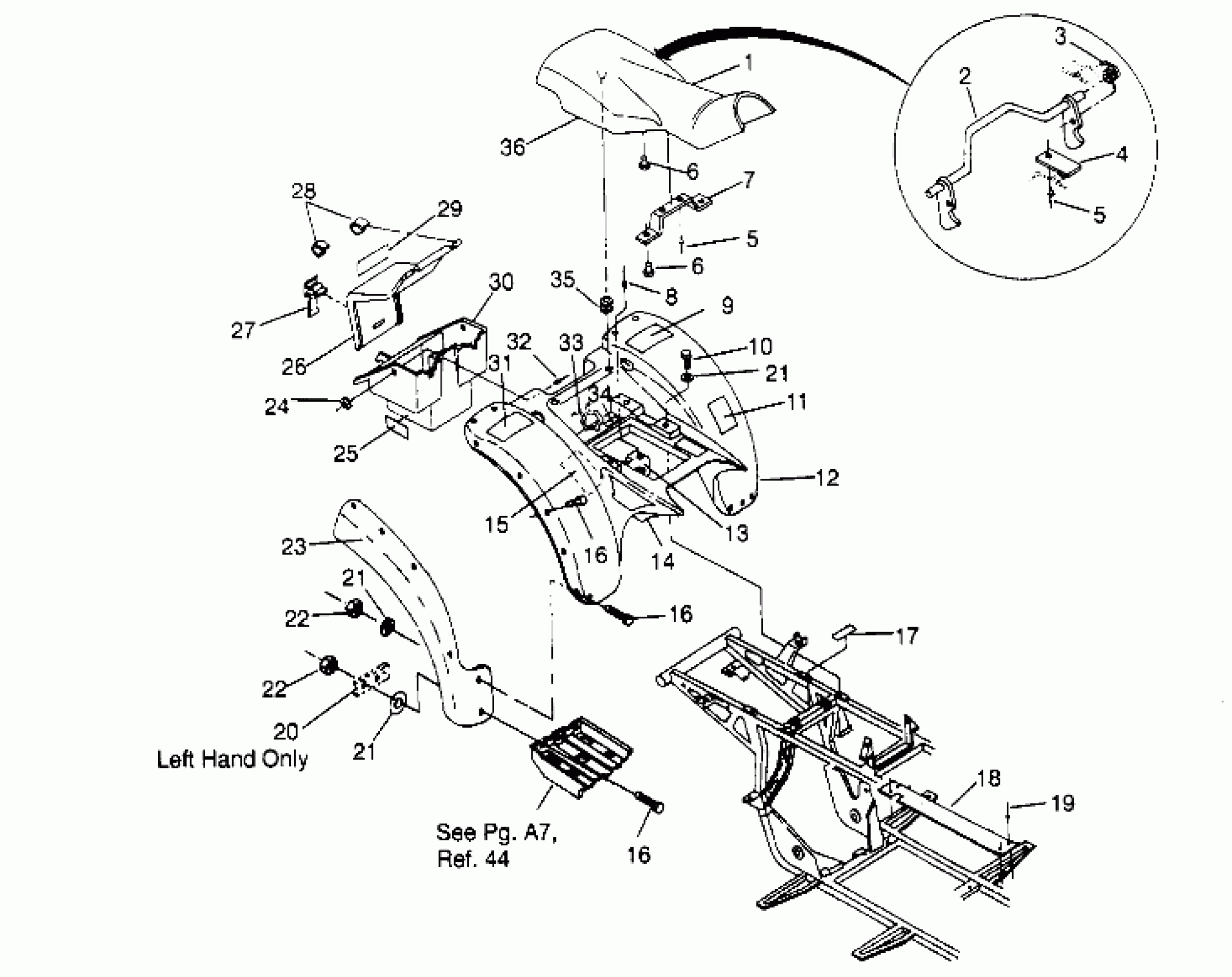

Polaris SPORTSMAN 4X4 - W948039 REAR CAB ASSEMBLY Sportsman 4x4 W948040 (4926842684A006) Diagram
#
1
SEAT ASM,(ATV),BLK. Substituted by 2682203-070
2681724-070
Unavailable
2
LATCH,SEAT
1011558
Unavailable
3
SPRING, LATCH
7041158
Unavailable
4
BRACKET,LEVER RETAINER
5211033
$29.25
5
BLIND RIVET(50)
7621403
$1.49
5
BLIND RIVET(50)
7621403
$1.49
6
Bumper, Rubber
5410414
$3.19
6
Bumper, Rubber
5410414
$3.19
7
BRKT,SUPPORT SEAT BASE
5222837-067
Unavailable
8
RIVET,3/16X.402(50)
7621432
$1.49
9
DECAL(CPSC),WARN,R.RACK [No Longer Available]
7072788
Unavailable
10
BOLT(10)
7512232
$1.49
11
DECAL(CPSC),TIRE PRESS.
7073069
Unavailable
12
CAB,REAR,OLV.GRN.
5431271-191
Unavailable
13
BRKT,R.HOLDDOWN
5220880
Unavailable
14
Foil, Rear Cab
5810957
Unavailable
15
Foil, Rear Cab, Small
5810991
Unavailable
16
BOLT, BLACK(10)
7512282
$1.49
16
BOLT, BLACK(10)
7512282
$1.49
16
BOLT, BLACK(10)
7512282
$1.49
17
DECAL,FILTER ELEMENT [No Longer Available]
7072791
Unavailable
18
GUARD,CLUTCH,OUTER
5222860-067
$7.06
19
RIVET-3/16-.090-.290
7661637
$1.49
20
BRKT, LH MUD FLAP
5211131-067
Unavailable
21
WASHER, FLAT(10)
7555859
$1.49
21
WASHER, FLAT(10)
7555859
$1.49
21
WASHER, FLAT(10)
7555859
$1.49
22
NUT-LOCK(10)
7542122
$1.49
22
NUT-LOCK(10)
7542122
$1.49
23
MUDFLAP, LH, FULL
5850107
Unavailable
23
MUDFLAP,RH,FULL (w/Output Brk.)
5850110
$58.39
24
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
25
TAPE, FOIL
5810310
Unavailable
26
LID,TOOLBOX,OLV.GRN.
5430769-191
Unavailable
27
STRAP,TOOL COMPARTMENT
5410425
Unavailable
28
CLIP, LID HINGE(10)
7670050
Unavailable
29
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
Unavailable
30
BOX,TOOL COMP.
5430882
Unavailable
31
DECAL,LOAD DIST.(4 WHL.)
7074110
Unavailable
32
RIVET(50)
7621462
$1.49
33
RETAINER,TOOL POUCH
7080385
Unavailable
34
DECAL,CARB.INFO.
7073761
Unavailable
35
GROMMET
5410413
Unavailable
36
COVER,SEAT,BLACK
2681723-070
Unavailable
