GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W948040 (4926842684C003)

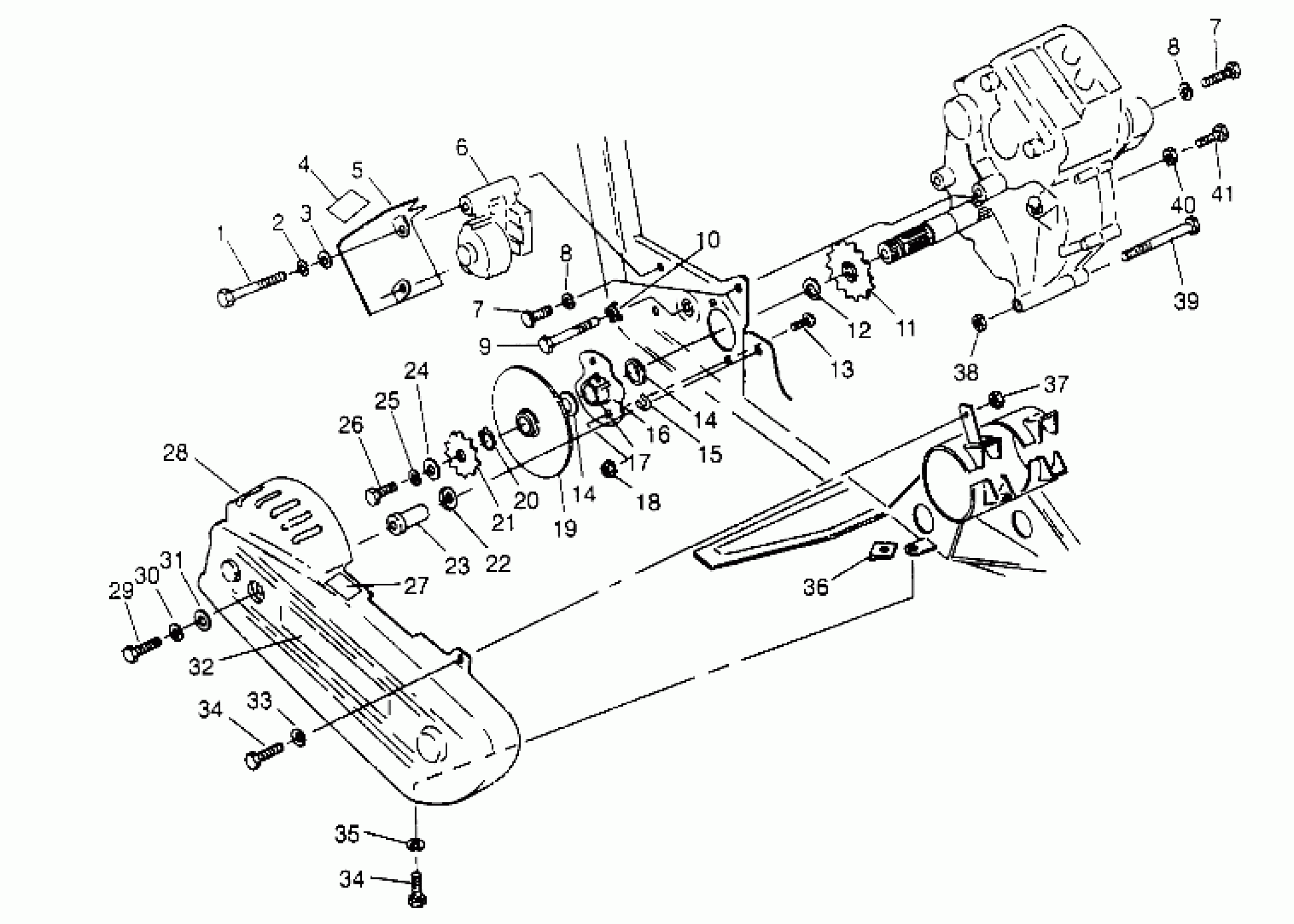

Polaris SPORTSMAN 4X4 - W948039 GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W948040 (4926842684C003) Diagram
#
1
BOLT(10)
7515345
$5.59
2
LOCK WASHER(10)
7552901
$1.49
3
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
4
DECAL(CPSC),BRAKE SHIELD Substituted by 7075339
7072790
Unavailable
5
SHIELD,R.CALIPER,BLK.
5240149-067
Unavailable
6
CAL.ASM,REAR BRAKE Substituted by 1910180
1910156
Unavailable
7
BOLT(10)
7515522
$3.99
7
BOLT(10)
7515522
$3.99
8
WASHER(10)
7552603
$1.49
8
WASHER(10)
7552603
$1.49
9
Bolt, Shoulder (See Pg. A27, Ref. 13)
-------
Unavailable
10
Plate, Bolt Lock (See Pg. A27, Ref. 14)
-------
Unavailable
11
Sprocket, (See Pg. A35, Ref. 46)
-------
Unavailable
12
Ring, Retaining (See Pg. A35, Ref. 45)
-------
Unavailable
13
BOLT,CARRIAGE(10)
7515484
Unavailable
14
SEAL, BRAKE
3610026
$7.99
14
SEAL, BRAKE
3610026
$7.99
15
SPACER,(10)
5210764
Unavailable
15
SHIM,.010,GEARCASE
5211065
Unavailable
15
SHIM,(.030)
5211517
Unavailable
16
BRG.ASM,O/P SHAFT
1590237
$84.99
17
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
18
NUT,FLANGE LOCK(10)
7542449
$3.99
19
Weld., Brake Disc (See Pg. A35, Ref. 39)
-------
Unavailable
20
Ring, Retaining (See Pg.A35, Ref.40)
-------
Unavailable
21
Sprocket, 11T (See Pg. A35, Ref. 41)
-------
Unavailable
22
WASHER(10)
7555734
$1.49
23
SPACER, CHAIN GUARD
5333244
Unavailable
24
Washer (See Pg. A35, Ref. 42)
-------
Unavailable
25
Washer, Spring Lock (See Pg. A35, Ref. 43)
-------
Unavailable
26
Bolt (See Pg. A35, Ref. 44)
-------
Unavailable
27
DECAL,LUBRICATION
7074214
Unavailable
28
GUARD,CHAIN,CTR.
5431717
Unavailable
29
BOLT(10)
7515346
$5.59
30
WASHER(10)
7552606
$4.79
31
WASHER(10) Substituted by 7558402
7555770
Unavailable
32
DECAL,DEMAND 4 DRIVE
7074226
Unavailable
33
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
34
BOLT(10)
7512269
Unavailable
34
BOLT(10)
7512269
Unavailable
35
WASHER(10)
7552605
$5.27
36
NUT, SPEED(10)
7670060
$3.99
37
NUT(10)
7542124
Unavailable
38
NUT LOCK(10)
7542403
$3.99
39
BOLT(10)
7515472
$2.39
40
NUT(10)
7542404
$1.59
41
BOLT(10)
7515485
$3.03
