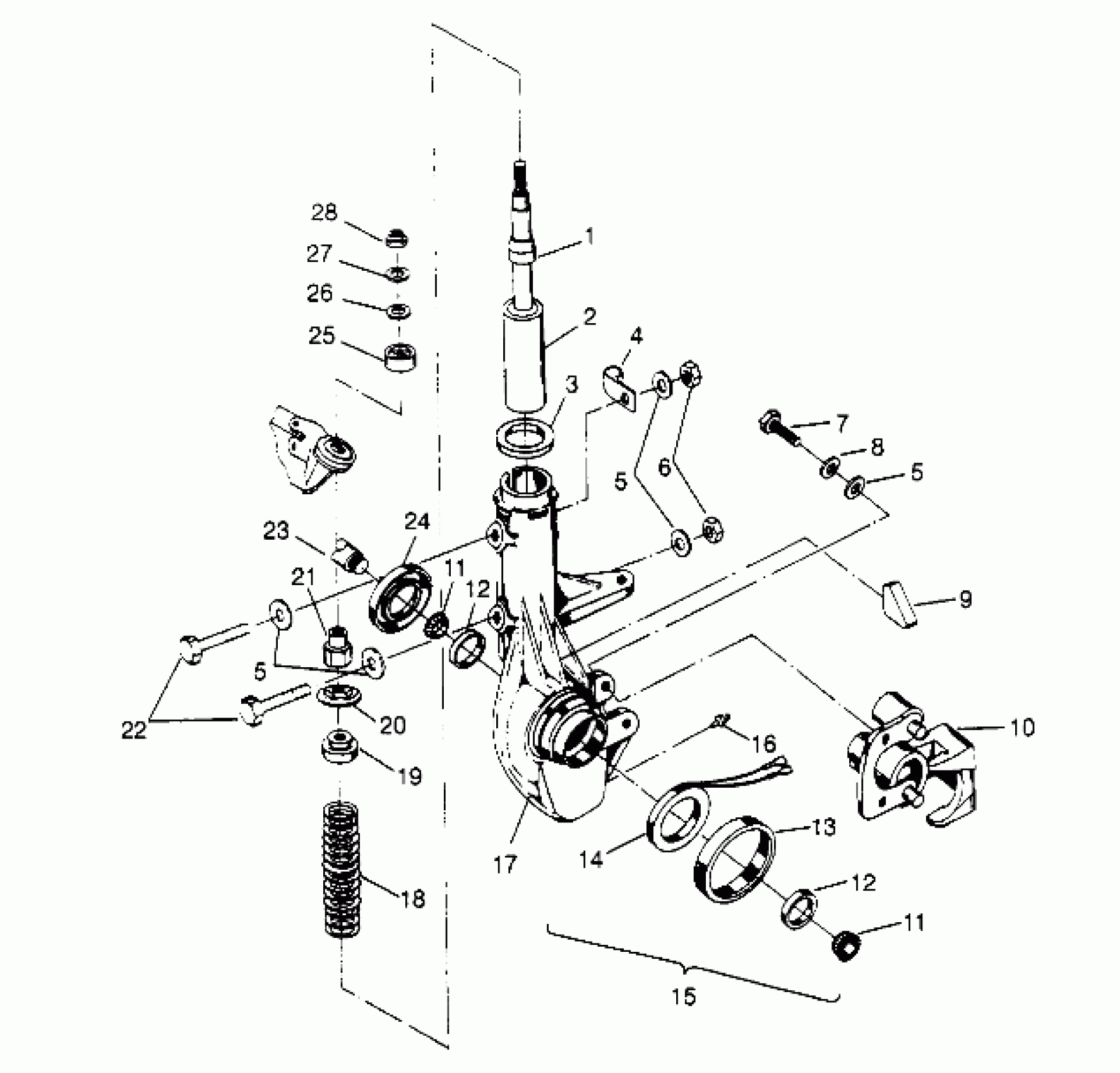

Polaris SPORTSMAN 4X4 - W948039 FRONT STRUT ASSEMBLY Sportsman 4x4 W948040 (4926842684B004) Diagram

#

Description
Price

1

BUMPER, RUBBER

5410429

Unavailable

2

STRUT, FRONT Substituted by 7041451

7041304

Unavailable

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP(10) Substituted by 7080573

7080347

Unavailable

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

NUT FLEX-LOC(10)

7542303

$6.39

7

SCREW, CAP(10)

7512365

$1.49

8

LOCK WASHER(10)

7552901

$1.49

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

CAL.ASM,LH FR.BRAKE Substituted by 1910181 (See pg. A20)

1910078

$288.87

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

SLEEVE,STRUT HUB SEAL

5222193

$59.99

14

COIL, MAGNETIC

4170003

$59.99

15

HUBSTRUT ASM, LH (Incl. 9, 13-15, 17)

2200316

Unavailable

15

HUBSTRUT ASM, RH (Incl. 9, 13-15, 17)

2200317

Unavailable

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

17

SUPPORT,LH,HUBSTRUT Substituted by 2200601

5131016

Unavailable

17

SUPPORT,RH,HUBSTRUT Substituted by 2200602

5131017

Unavailable

18

SPRING, STRUT

7041161-067

Unavailable

19

RETAINER,SPRING,TOP

5220602

Unavailable

20

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

21

SPACER,THREADED

5130668

$27.99

22

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

23

Asm., Drive Shaft w/Sleeve (See Pg. A17, Ref. 11)

-------

Unavailable

24

SEAL, HUB STRUT

3610028

$31.99

25

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

26

SPACER-RUBBER

5810291

$3.99

27

WASHER(10)

7555749

$1.49

28

NUT,FLEX LOC(10)

7542507

$3.99
