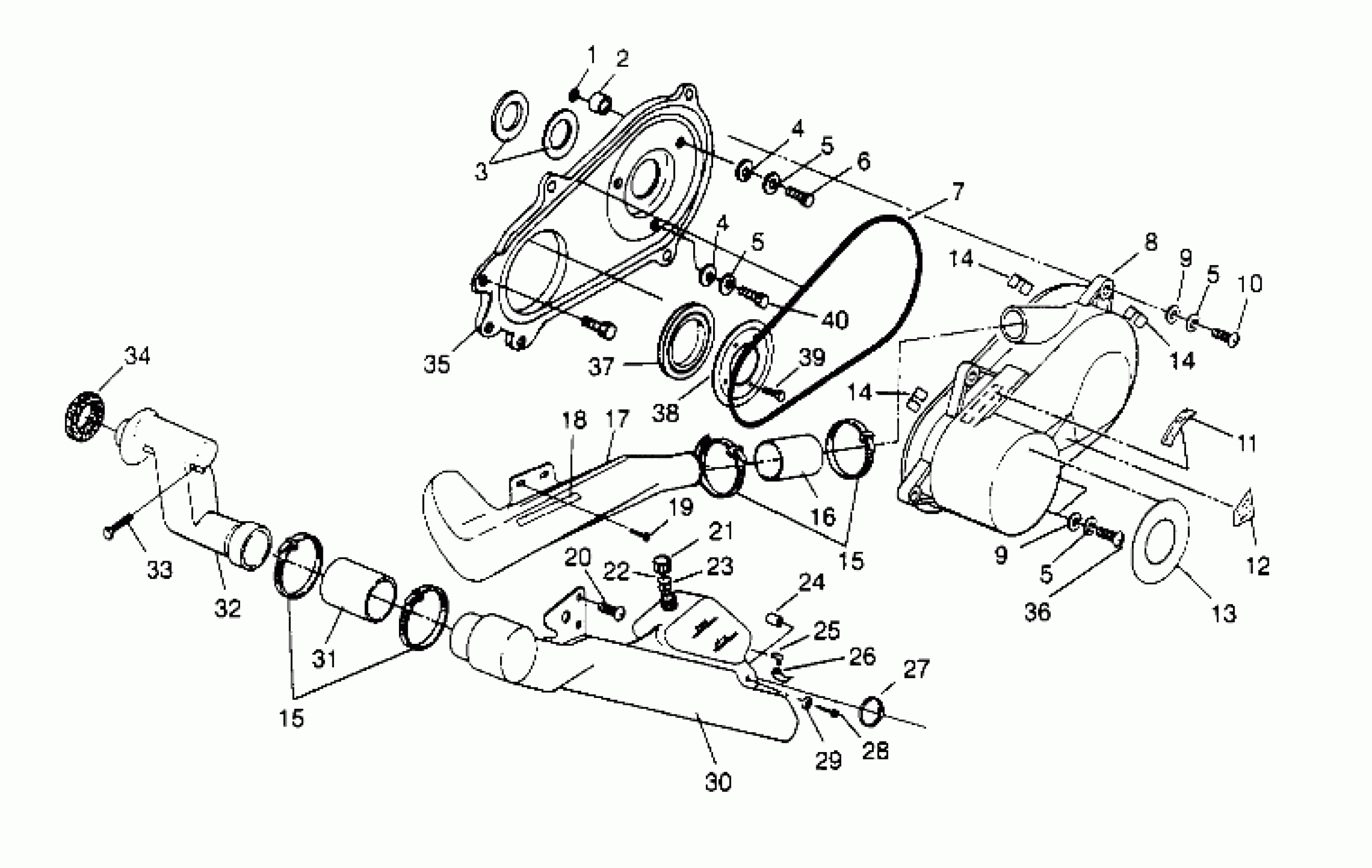

Polaris SPORTSMAN 4X4 - W948039 CLUTCH COVER ASSEMBLY Sportsman 4x4 W948040 (4926842684B014) Diagram

#

Description
Price

1

O RING

5410565

Unavailable

2

SPACER

5333062

Unavailable

3

SEAL,COVER CASE

5410489

$13.59

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

5

WASHER(10)

7552605

$5.27

5

WASHER(10)

7552605

$5.27

5

WASHER(10)

7552605

$5.27

5

WASHER(10)

7552605

$5.27

6

BOLT(10)

7512277

$4.79

7

SEAL,CLUTCHCOVER

5521301

$30.88

8

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

9

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

WASHER(10) Substituted by 7558301

7555776

Unavailable

10

BOLT(10)

7512281

$3.99

11

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

12

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

13

DECAL, PVT [No Longer Available]

7072386

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

$2.99

14

CLIP,CLUTCH COVER(10)

7670051

$2.99

14

CLIP,CLUTCH COVER(10)

7670051

$2.99

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

BOOT,CLUTCH INTAKE

5410421

$11.19

17

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

18

DECAL,DEMAND 4 DRIVE

7074226

Unavailable

19

SCREW(10)

7512252

Unavailable

20

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

21

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

22

GASKET-OVERFLOW CAP

5810279

$2.41

23

PLUG,CAP Substituted by 5433774

5431895

Unavailable

24

SPACER

5020577

Unavailable

25

FITTING,90 DEGREE

7052065

$7.19

26

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

27

CLAMP, NARROW BAND(10)

7080511

$4.79

28

SCREW(10)

7512025

$4.79

29

WASHER(10)

7555783

$3.99

30

DOWNTUBE,DUAL INLET Substituted by 5432336

5431185

$119.68

31

BOOT, INTAKE

5410509

$7.99

32

DUCT, INLET, TOP

5431261

$49.59

33

SCREW(10)

7512017

$4.79

34

SEAL, INTAKE

5810480

Unavailable

35

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$294.99

36

SCREW(10)

7512222

$2.39

37

Seal, Cover Case

5410575

Unavailable

38

BRKT,RETAINER,SEAL

5222446-067

Unavailable

39

SCREW & WASHER(10)

3084205

$3.99

40

BOLT(10)

7512278

Unavailable
