BUMPER/RACK MOUNTING Sportsman 4x4 W948040 (4926842684A007)

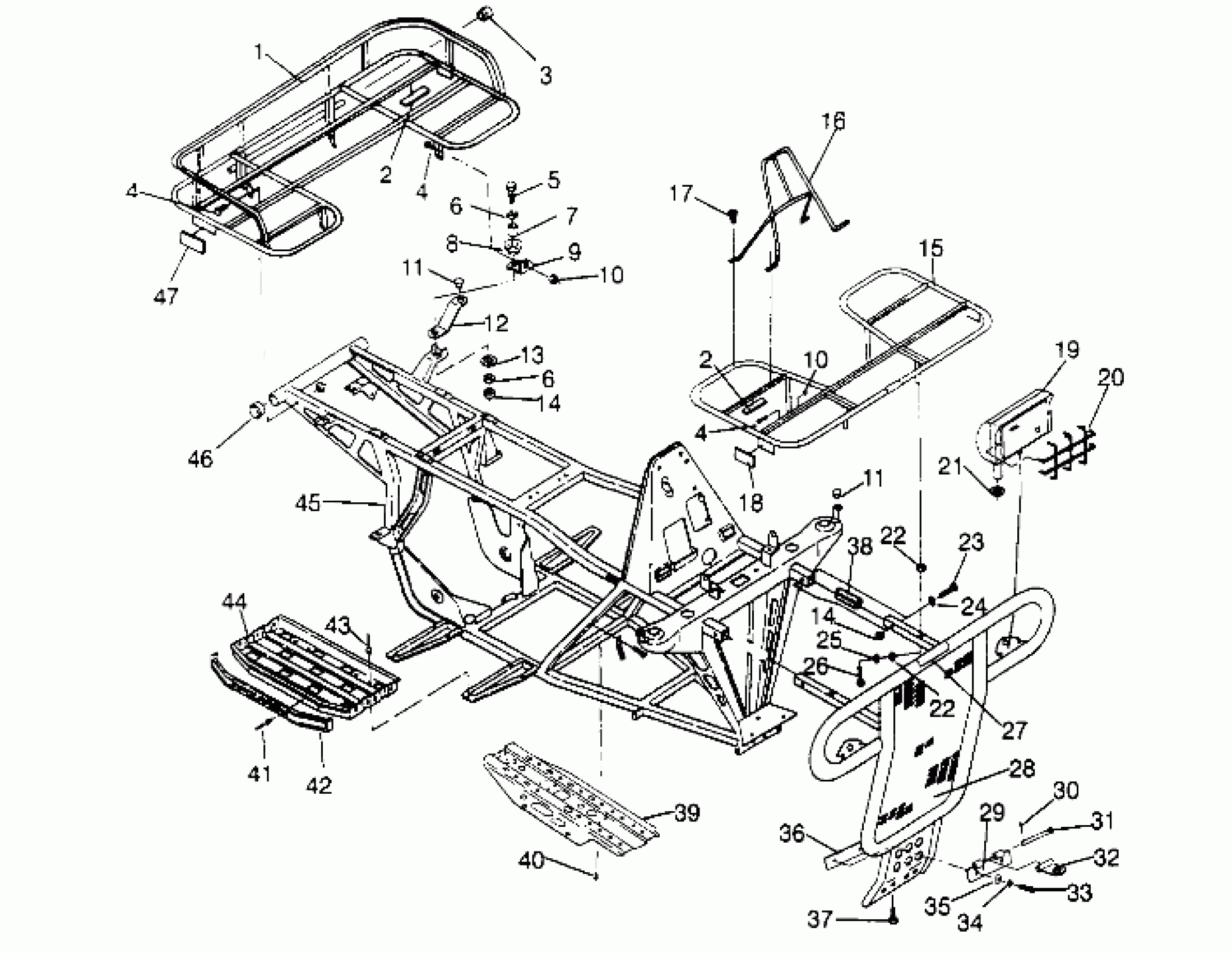

Polaris SPORTSMAN 4X4 - W948039 BUMPER/RACK MOUNTING Sportsman 4x4 W948040 (4926842684A007) Diagram
#
1
RACK,REAR,BLK.
2670153-067
Unavailable
2
PAD,RACK MOUNT
5810455
$3.19
2
PAD,RACK MOUNT
5810455
$3.19
3
CAP,BUMPER,FR,BLK.
5431013-067
Unavailable
4
SCREW(10)
7515355
Unavailable
4
SCREW(10)
7515355
Unavailable
4
SCREW(10)
7515355
Unavailable
5
SCREW-FLANGED(10)
7515304
$5.59
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
7
BUSHING-RES. MT.
5010192
$6.39
8
DAMPENER
5410241
Unavailable
9
BRKT,LH SUPPORT RACK Substituted by 5243468-067
5220899-067
Unavailable
9
BRKT,RH SUPPORT RACK Substituted by 5243469-067
5220901-067
Unavailable
10
NUT, NYLOK(10)
7542327
$4.79
10
NUT, NYLOK(10)
7542327
$4.79
11
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
11
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
12
SUPPORT,R.FENDER
5220902-067
$48.40
13
WASHER,RUBBER
5410436
$1.59
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
RACK,FRONT
2670155-067
Unavailable
16
GUARD,SPEEDO. Substituted by 2871316
1040346
Unavailable
17
SCREW(10) Substituted by 7512018
7512013
Unavailable
18
REFLECTOR ASM,AMBER
2670134
$9.70
19
HEADLIGHT ASM (35.5W)
4032067
Unavailable
19
BULB Substituted by 4030048
4030046
$29.03
20
GUARD, HEADLIGHT (Optional)
4032057
Unavailable
21
Grommet
5410437
$2.39
22
WASHER(10)
7558301
$1.49
22
WASHER(10)
7558301
$1.49
23
BOLT(10)
7512329
$3.99
24
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
25
LOCK WASHER(10)
7552801
$1.59
26
SCREW(10)
7512126
$4.79
27
DECAL,MACPHERSON STRUT
7074220
Unavailable
28
BUMPER,FRONT,BLK. Substituted by 2670190-067
2670148-067
Unavailable
29
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
30
COTTER PIN(10)
7661401
$1.49
31
CLEVIS PIN(10)
7662209
$9.59
32
HITCH TONGUE,BLK.
1040330-067
$18.89
33
BOLT(10) Substituted by 7512492
7515458
Unavailable
34
WASHER(10)
7552603
$1.49
35
WASHER(10) Substituted by 7555832
7555851
Unavailable
36
PLATE,HITCH,BLK,
5211437-067
$9.91
37
SCREW(10)
7512252
Unavailable
38
PLUG, FRAME
5810467
Unavailable
39
GUARD,ROCK,BLK.
5240560-067
$87.99
40
BOLT(10)
7512232
$1.49
41
RIVET,(50)
7661825
$1.49
42
Trim, Footrest
5431484
Unavailable
43
RIVET,INTERLOCK,B(50)
7661638
$1.49
44
FOOTPAD,LH,BLK.
1040274-067
$81.75
44
FOOTPAD,RH,BLK.
1040351-067
Unavailable
45
FRAME,MAIN,BLK.
1040340-067
$695.22
46
PLUG, BUMPER CAP(10) Substituted by 5432047
5410794
$4.92
47
REFLECTOR ASM,RED
2670133
$5.75
