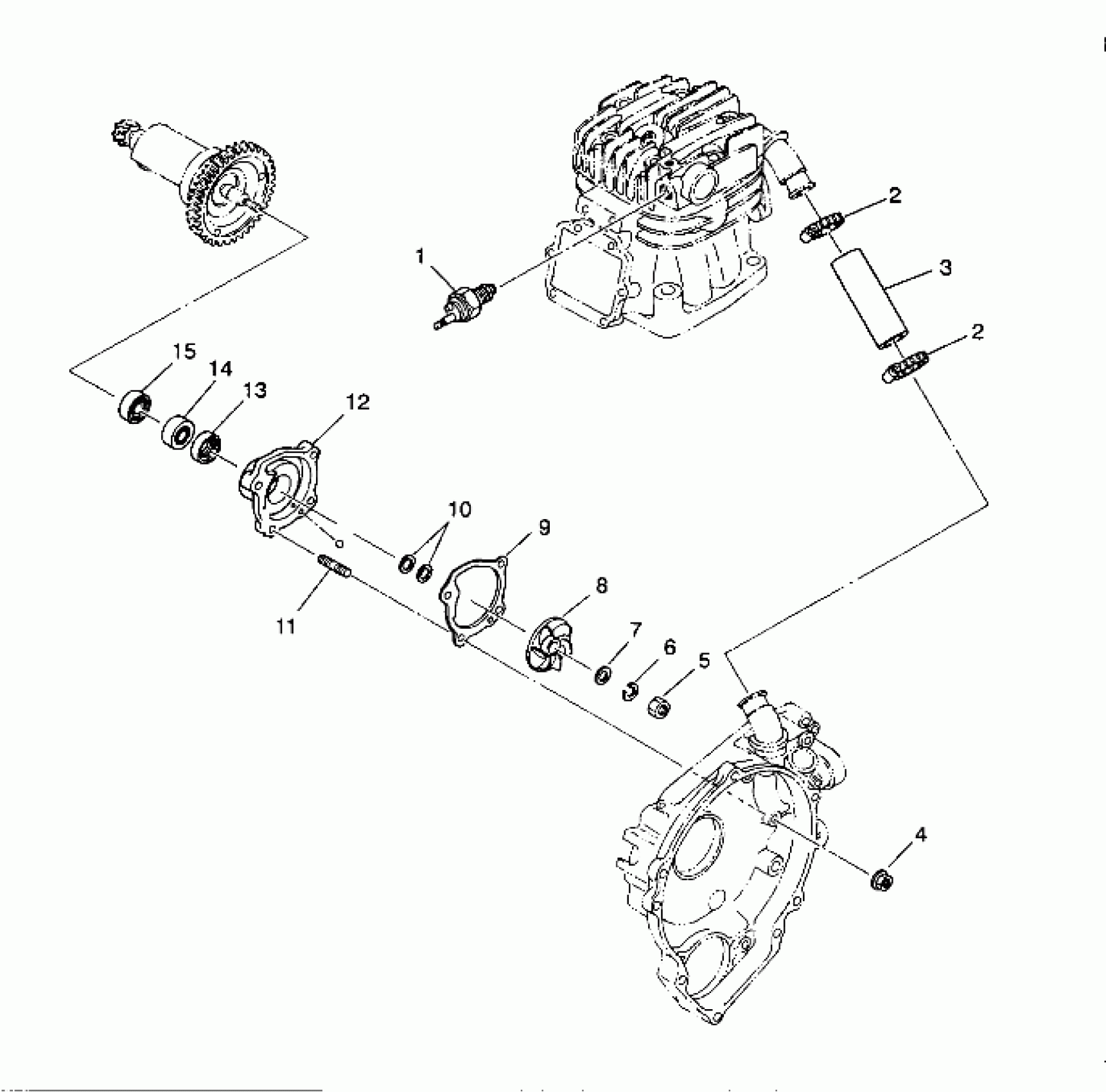

Polaris SPORTSMAN 4X4 - W938039 WATER PUMP Sportsman 4X4 / W938039 (4926382638038A) Diagram

#

Description

Price

1

SWITCH,THERMAL,IOS

3084284

Unavailable

1

SWITCH,THERMAL,IOS

3084284

Unavailable

2

CLAMP, HOSE Substituted by 3086774

3084191

Unavailable

2

CLAMP, HOSE Substituted by 3086774

3084191

Unavailable

3

HOSE, MAIN Substituted by 3086773

3084190

Unavailable

4

NUT, FLANGE(10)

3083856

$2.38

5

Nut

3083073

$2.38

6

WASHER SPRING(10)

3080077

$2.38

7

SCREW&WASHER,(10)

3083784

$2.38

8

Impeller

3084186

Unavailable

9

GASKET (Casing)

3084187

Unavailable

11

STUD

3084182

Unavailable

12

CASING, WATER PUMP (Incl. 11)

3084181

Unavailable

13

Seal, Oil

3084185

Unavailable

14

Seal, Oil

3084184

Unavailable

15

Bearing, Ball

3084183

Unavailable
