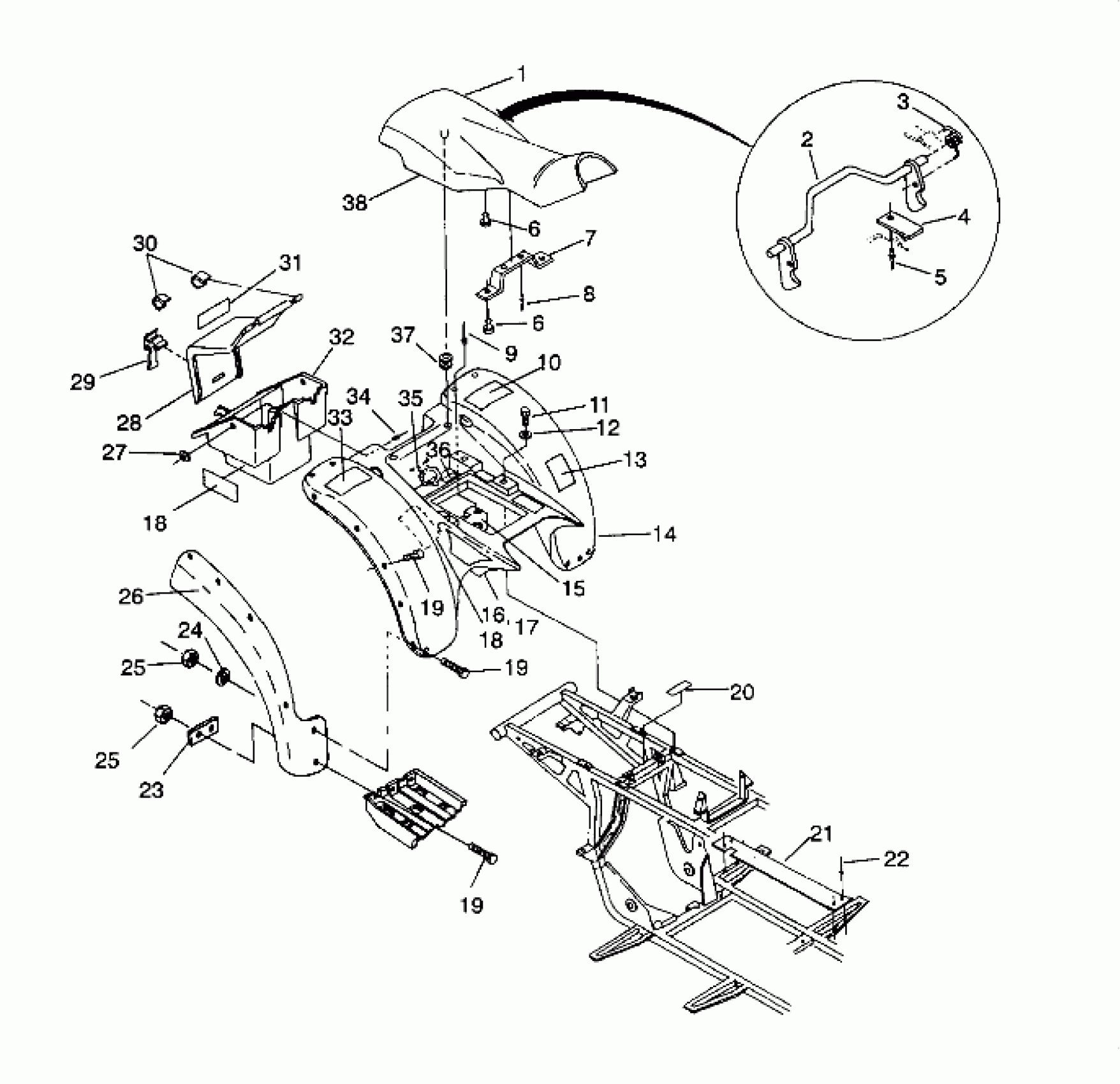

Polaris SPORTSMAN 4X4 - W938039 REAR CAB ASSEMBLY Sportsman 4X4 / W938039 (4926382638002A) Diagram

#

Description
Price

1

SEAT ASM,BLK. Substituted by 2682357-070

2681706

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$29.25

5

BLIND RIVET(50)

7621403

$1.49

6

Bumper, Rubber

5410414

$3.19

6

Bumper, Rubber

5410414

$3.19

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET

7621481

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.49

10

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

11

BOLT(10)

7512232

$1.49

12

WASHER,WROUGHT(10)

7558302

$1.59

13

DECAL(CPSC),TIRE PRESS.

7073069

Unavailable

14

CAB,REAR,OLV.GRN.

5431271-191

Unavailable

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

17

TAPE, FOIL

5810424

Unavailable

18

TAPE, FOIL

5810310

Unavailable

18

TAPE, FOIL

5810310

Unavailable

19

BOLT, BLACK(10)

7512282

$1.49

19

BOLT, BLACK(10)

7512282

$1.49

19

BOLT, BLACK(10)

7512282

$1.49

20

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

21

GUARD,CLUTCH,OUTER

5222860-067

$7.06

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

BRKT, LH MUD FLAP

5211131-067

Unavailable

23

BRKT,RH MUD FLAP

5211020-067

Unavailable

24

WASHER, FLAT(10)

7555859

$1.49

25

NUT-LOCK(10)

7542122

$1.49

25

NUT-LOCK(10)

7542122

$1.49

26

MUDFLAP, LH, FULL

5850107

Unavailable

26

MUDFLAP,RH,FULL

5850110

$58.39

27

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

28

LID,TOOLBOX,OLV.GRN.

5430769-191

Unavailable

29

STRAP,TOOL COMPARTMENT

5410425

Unavailable

30

CLIP, LID HINGE(10)

7670050

Unavailable

31

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

32

BOX,TOOL COMP.

5430882

Unavailable

33

DECAL,LOAD DIST.(4 WHL.)

7074110

Unavailable

34

RIVET(50)

7621462

$1.49

35

RETAINER,TOOL POUCH

7080385

Unavailable

36

DECAL,CARB.INFO.

7073761

Unavailable

37

GROMMET

5410413

Unavailable

38

COVER,SEAT,BLK. Substituted by 2681723-070

2681707

Unavailable
