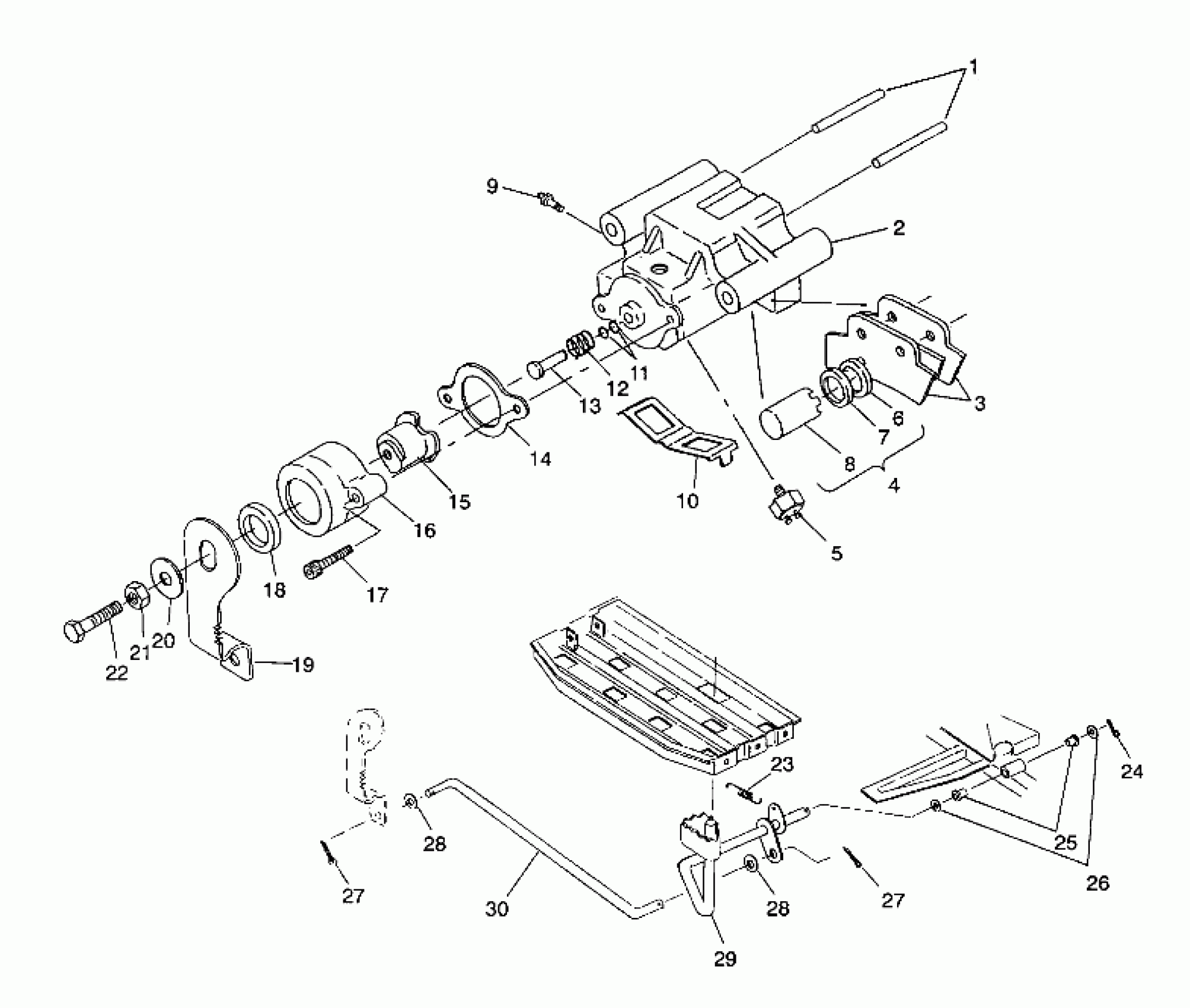

Polaris SPORTSMAN 4X4 - W938039 REAR BRAKE ASSEMBLY Sportsman 4X4 / W938039 (4926382638028A) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,BRAKE,MACH. Substituted by 5131117

5130946

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT-PISTON & SEAL (Incl. 6 - 8)

2200463

$97.76

5

SWITCH, STOPLIGHT

4110089

Unavailable

6

Square Ring (.134 Sq.)

----

Unavailable

7

Square Ring (.099 Sq.)

----

Unavailable

8

Piston, Brake

----

Unavailable

9

SCREW,BLEEDER

7080352

$3.17

10

SPRING,ANTI-RATTLE

5222232

Unavailable

11

O RING-.364X.504X.07

5410542

$4.84

12

SPRING,BRAKE,COMP.

7041219

Unavailable

13

PIN,BRAKE CALIPER

5020666

Unavailable

14

GASKET, BRAKE

5830009

Unavailable

15

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

16

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

17

SCREW(10)

7512173

Unavailable

18

SEAL, BRAKE

3610026

Unavailable

19

ARM,BRAKE,CALIPER

5222984

Unavailable

20

WASHER, SPRING(10)

7555828

Unavailable

21

NUT(10)

7542129

$4.76

22

BOLT

7515145

Unavailable

23

SPRING-EXHAUST(10)

7042029

$5.65

24

COTTER PIN(10)

7661401

$0.79

25

BUSHING-PEDAL PIVOT

5431107

$8.73

26

WASHER THRUST(10)

7558702

$1.59

27

PIN COTTER(10)

7661203

$1.19

27

PIN COTTER(10)

7661203

$1.19

28

WASHER(10)

7555806

$0.79

28

WASHER(10)

7555806

$0.79

29

BRAKE,FOOT,BLK.

1910134-067

Unavailable

30

ROD,BRAKE Substituted by 5224506

5224506-067

Unavailable
