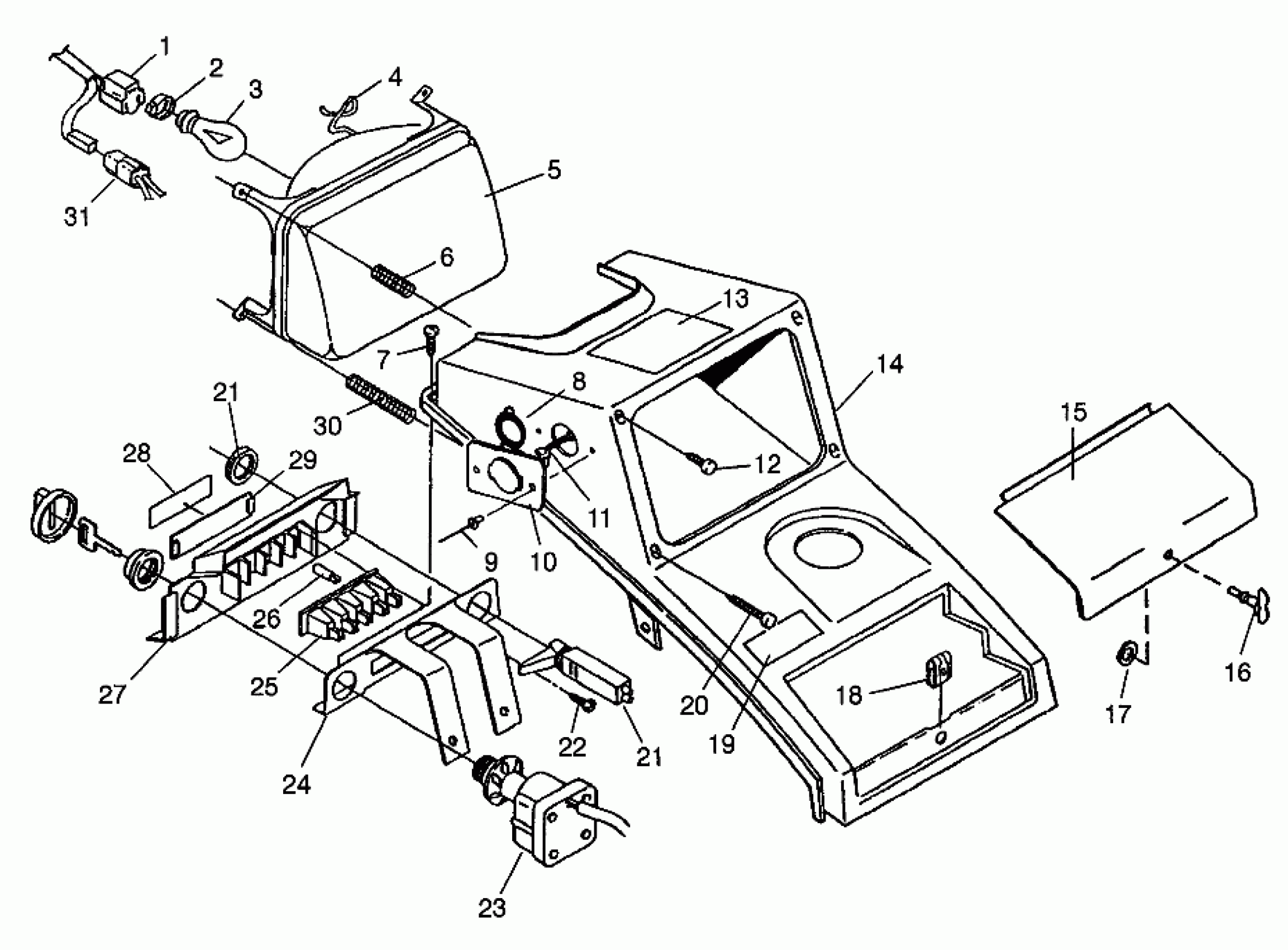

Polaris SPORTSMAN 4X4 - W938039 HEADLIGHT Sportsman 4X4 / W938039 (4926382638009A) Diagram

#

Description
Price

1

HARNESS, HEADLIGHT

2460424

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW(10)

7512017

$4.79

8

COVER,12VOLT PLUG

5411081

Unavailable

9

RIVET(50)

7621334

$1.49

10

POWERPLUG ASM,12V

2410025

Unavailable

11

HARNESS,12V OUTLET

2460471

Unavailable

12

SCREW, ADJ.(10)

4032003

Unavailable

13

DECAL,CERTIF.,ATV Substituted by 7075909

7073464

Unavailable

14

COVER,OILTANK/HL,W/HOLE

5431660

$66.39

15

DOOR,ACCESS,BLK.

5431201-070

$62.39

16

FASTENER, 1/4 TURN(10)

7670064

$6.23

17

RING,SPLIT RETAINER(10)

7670065

$1.99

18

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

19

LABEL, 'U.S.A.'

7073024

Unavailable

20

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

21

KIT-CHOKE CONTROL

2200188

$24.27

21

CABLE, CHOKE

7080371

$97.13

21

KIT-CHOKE CONTROL

2200188

$24.27

21

CABLE, CHOKE

7080371

$97.13

22

SCREW, SEM(10)

7511862

$6.99

23

SWITCH, IGNITION Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4110140

$137.60

24

BRKT, IGN. PANEL

5220965-067

Unavailable

25

STRIP, SOCKET

4032037

$27.19

26

BULB

4030042

Unavailable

27

PANEL, IGNITION

5430995

Unavailable

28

DECAL, PANEL [No Longer Available]

7072528

Unavailable

29

LENS ASM,PILOT LIGHT (Incl. 28)

2652049

Unavailable

30

SPRING,ADJ.

4032041

Unavailable

31

HSG,DUAL,FEMALE

4040024

$3.99
