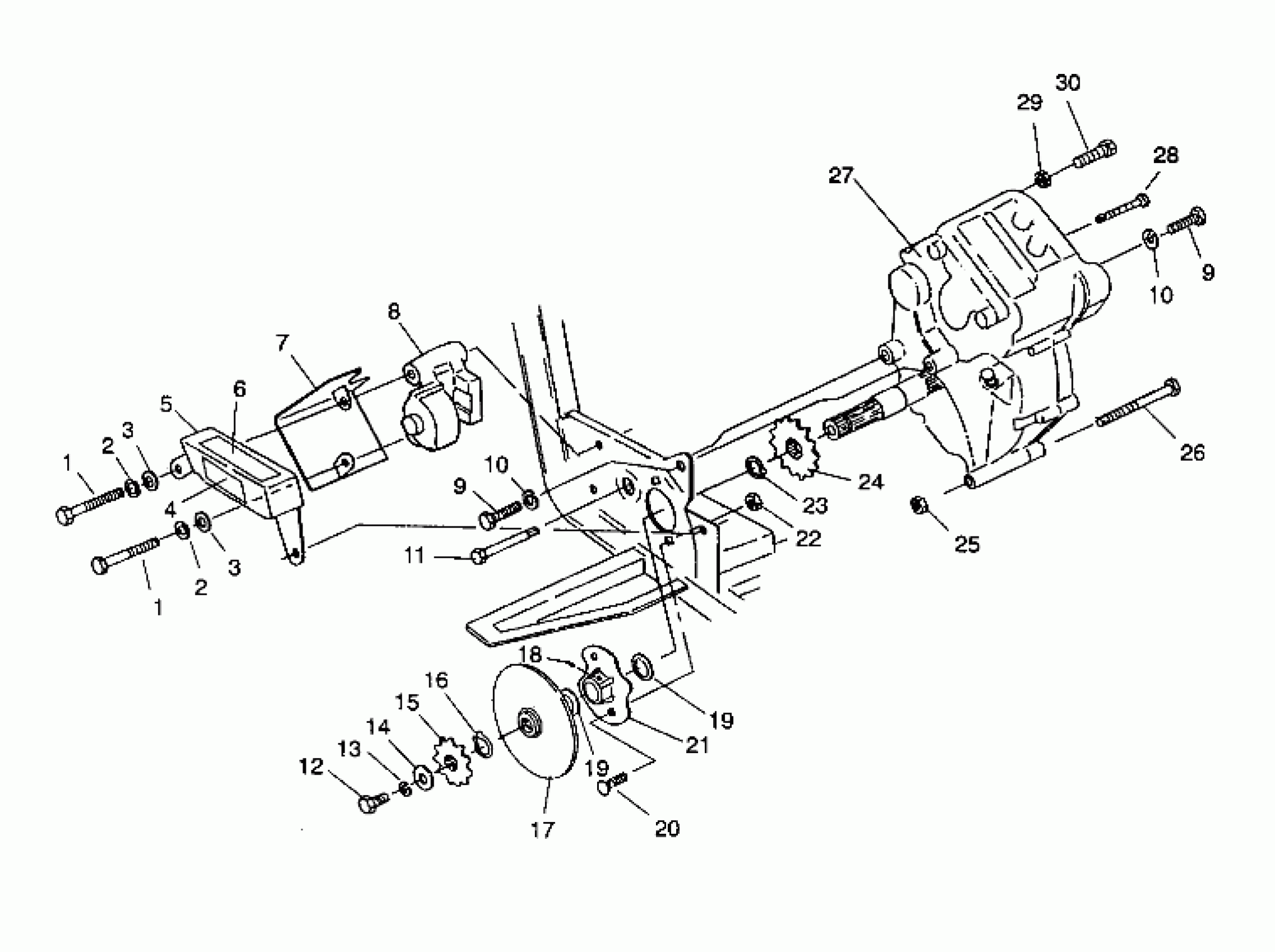

Polaris SPORTSMAN 4X4 - W938039 GEARCASE/BRAKE MOUNTING Sportsman 4X4 / W938039 (4926382638027A) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

DECAL,LUBRICATION

7074214

Unavailable

5

COVER,BRAKE DISC,BLK.

5431557-067

Unavailable

6

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

7

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

8

CALIPER ASM,R.(SCAND)

1910130

Unavailable

9

BOLT(10)

7515522

$3.99

9

BOLT(10)

7515522

$3.99

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

11

Bolt, Shoulder, Long (See 14, pg. A27)

-------

Unavailable

12

Bolt (See 43, Pg. A37)

-------

Unavailable

13

Washer, Lock (See 42, Pg. A37)

-------

Unavailable

14

Washer (See 41, Pg. A37)

-------

Unavailable

15

Sprocket (See 40, Pg. A37)

-------

Unavailable

16

Ring, Retaining (See 39, Pg. A37)

-------

Unavailable

17

Weld., Brake Disc (See 38, Pg. A37)

-------

Unavailable

18

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

19

SEAL, BRAKE

3610026

$7.99

19

SEAL, BRAKE

3610026

$7.99

20

BOLT,CARRIAGE(10)

7515484

Unavailable

21

BRG.ASM,O/P SHAFT

1590237

$84.99

22

NUT,FLANGE LOCK(10)

7542449

$3.99

23

Ring, Retaining (See 44, Pg. A37)

-------

Unavailable

24

Sprocket (See 45, Pg. A37)

-------

Unavailable

25

NUT LOCK(10)

7542403

$3.99

26

BOLT(10)

7515472

$2.39

27

GEARCASE ASM.(ATV) Substituted by 1341123

1341122

Unavailable

28

BOLT, SHOULDER

7512703

Unavailable

29

NUT(10)

7542404

$1.59

30

BOLT(10)

7515485

$3.03
