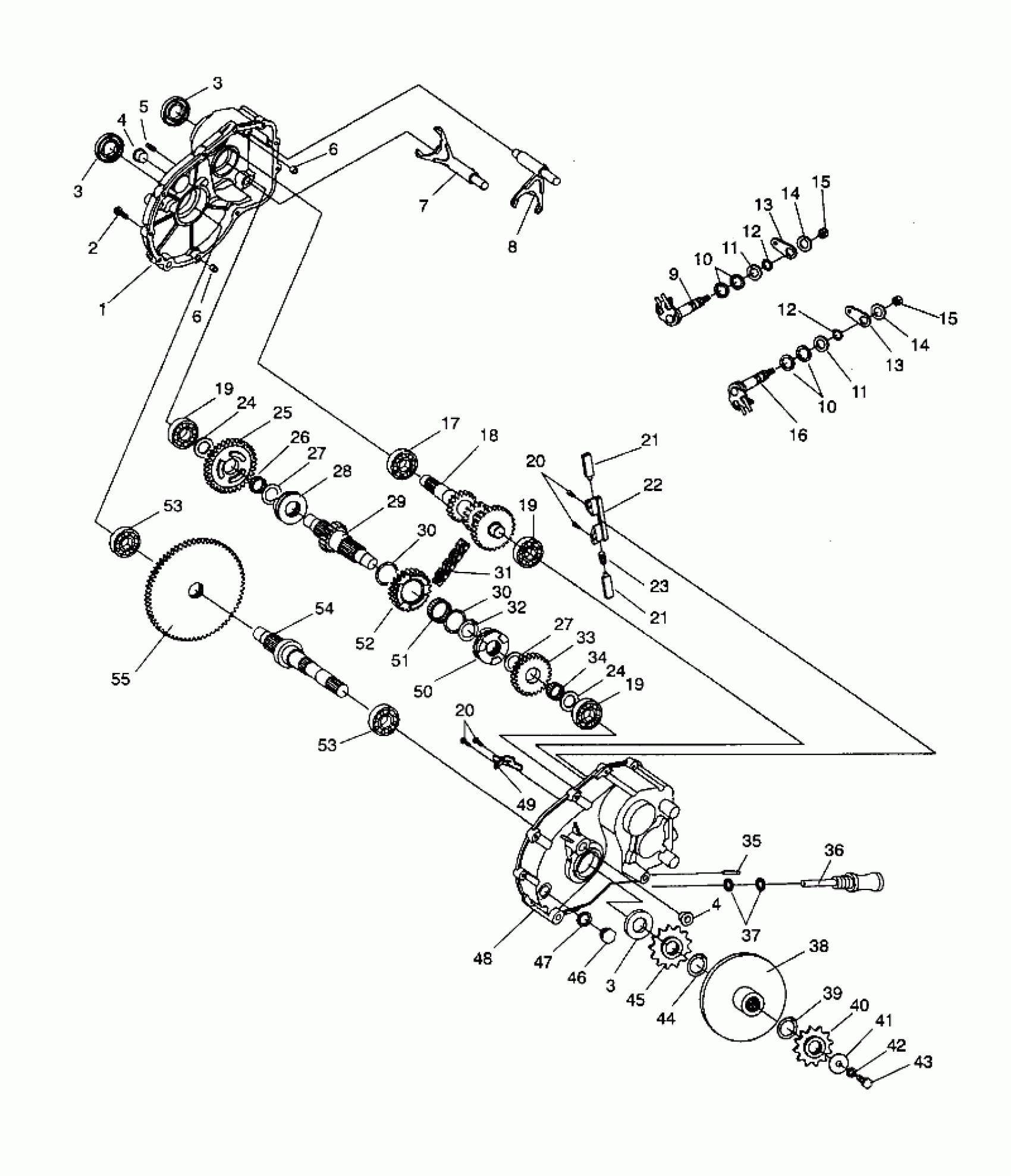

Polaris SPORTSMAN 4X4 - W938039 GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A) Diagram

#

Description
Price

-

GEARCASE ASM.(ATV) Substituted by 1341123 (Incl. 1-39,41-44, 46-54)

1341122

Unavailable

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

SEAL,OIL Substituted by 3233097

3233027

Unavailable

3

SEAL,OIL Substituted by 3233097

3233027

Unavailable

3

SEAL,OIL Substituted by 3233097

3233027

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

7

SHIFTRAIL,LOW

3233022

Unavailable

8

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

9

SHAFT,LOW SHIFT

3233038

Unavailable

10

O-RING Substituted by 3233548

3233044

Unavailable

10

O-RING Substituted by 3233548

3233044

Unavailable

11

Washer

3233040

$9.59

11

Washer

3233040

$9.59

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

BELL,CRANK Substituted by 3233153

3233041

$27.02

13

BELL,CRANK Substituted by 3233153

3233041

$27.02

14

Washer

3233054

$6.46

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

15

Nut

3233055

Unavailable

16

SHAFT,HI/REV,SHIFT

3233039

Unavailable

17

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

18

SHAFT,INPUT

3233004

Unavailable

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

SCREW Substituted by 3233747

3233033

Unavailable

20

SCREW Substituted by 3233747

3233033

Unavailable

21

PIN

3233031

$32.11

21

PIN

3233031

$32.11

22

BRACKET

3233030

$21.43

23

Spring

3233032

$12.94

24

WASHER

3233007

Unavailable

24

WASHER

3233007

Unavailable

25

GEAR, 33T (33T)

3233008

Unavailable

26

BEARING,NEEDLE

3233009

$39.99

27

Washer

3233010

Unavailable

27

Washer

3233010

Unavailable

28

DOG,LOW,ENGAGEMENT

3233011

$74.39

29

SHAFT,REVERSE

3233006

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

CHAIN,SILENT,34P

3233036

Unavailable

32

RING,RETAINING

3233029

$5.59

33

GEAR, 25T Substituted by 2201315

3233016

Unavailable

34

BEARING,NEEDLE

3233017

$35.99

35

Vent

3233037

Unavailable

36

DIPSTICK Substituted by 3233115

3233034

Unavailable

37

O-RING

3233053

Unavailable

38

DISC,BRAKE,WELD. Substituted by 1910177

1910121

Unavailable

39

RING,RETAINING(10) Substituted by 7710433

3233048

$4.62

40

SPKT, 11T

3221058

$74.99

41

WASHER(10) Substituted by 7555701

3233050

Unavailable

42

WASHER Substituted by 7552901

3233051

Unavailable

43

BOLT Substituted by 7515321

3233052

Unavailable

44

RING,RETAINING(10) Substituted by 7710434

3233047

Unavailable

45

SPKT, 12T

3221044

$43.99

46

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

47

Washer

3233035

Unavailable

48

CASE, RH

3233003

Unavailable

49

DEFLECTOR,OIL

3233043

$13.19

50

DOG,HI/REV,ENGAGEMENT Substituted by 2201315

3233015

Unavailable

51

BEARING, NEEDLE

3233014

$43.99

52

SPROCKET, 24T Substituted by 2201315

3233013

Unavailable

53

BEARING

3233020

$47.99

53

BEARING

3233020

$47.99

54

SHAFT,OUTPUT

3233005

Unavailable

55

GEAR, 66T

3233092

$238.08
