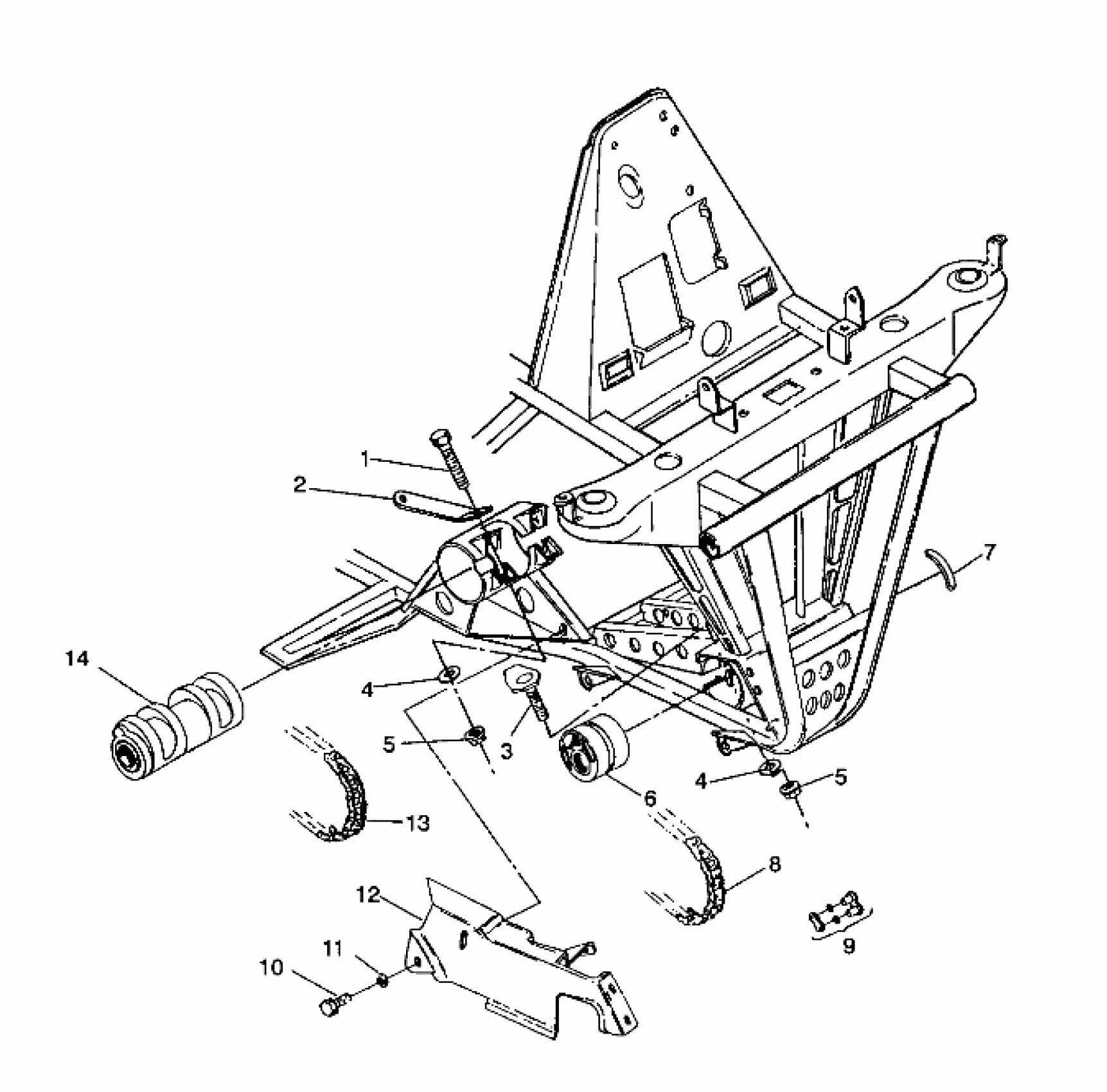

Polaris SPORTSMAN 4X4 - W938039 FRONT DRIVE ASSEMBLY Sportsman 4X4 / W938039 (4926382638011A) Diagram

BOLT(10)

7512551

Unavailable

BRKT,UP.COVER MT.

5222270-067

Unavailable

BOLT, FLAG(10)

7512577

Unavailable

WASHER(10)

7555883

$3.97

WASHER(10)

7555883

$3.97

NUT, LOCK,(10)

7542503

$10.32

NUT, LOCK,(10)

7542503

$10.32

Asm., Front Tightener (See Pg. A16)

----

Unavailable

SPACER,F.ECCENTRIC Substituted by 5811519

5431095

Unavailable

CHAIN, DRIVE Substituted by 3224056-064

3224041

$105.22

CONNECTOR LINK

3225024

$24.27

SCREW(10)

7512252

Unavailable

WASHER(10) Substituted by 7558301

7555776

$1.19

GUARD,CHAIN,FRONT

5431472

Unavailable

CHAIN, DRIVE Substituted by 3224056-070 (70P)

3224044

$113.32

Asm., Center Tightener (See Pg. A26)

----

Unavailable
