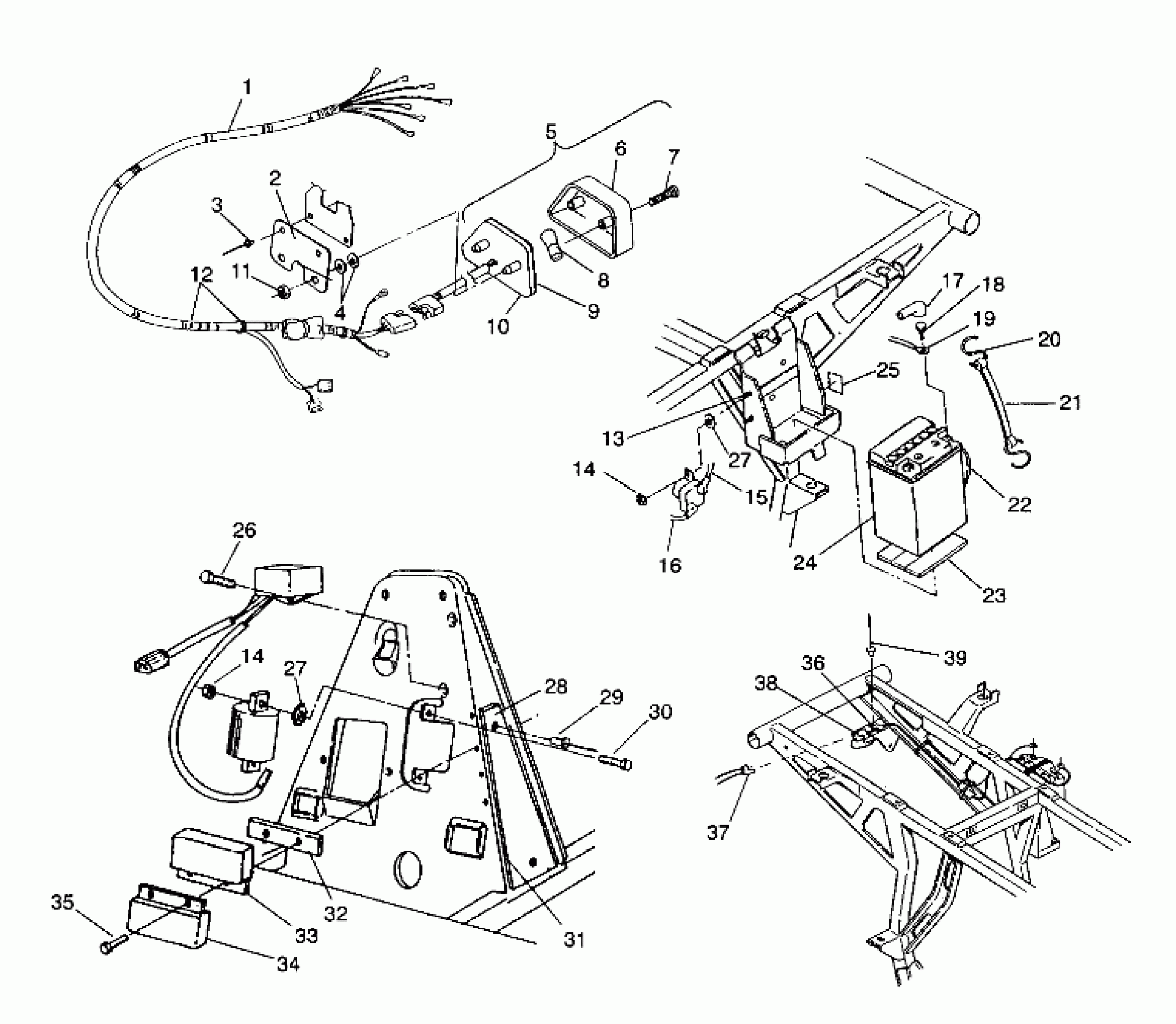

Polaris SPORTSMAN 4X4 - W938039 ELECTRICAL/TAILLIGHT ASSEMBLY Sportsman 4X4 / W938039 (4926382638032A) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460453

Unavailable

2

ISOLATOR,TAILLIGHT

5211391-067

$13.39

3

RIVET(50)

7621470

$3.17

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

5

TAIL LIGHT ASM.

2432034

$55.99

6

LENS,TAILLIGHT

4032046

$32.37

7

Screw, Taillight

4032029

$4.79

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,TAILLIGHT

4032045

$4.03

10

BACKING,TAILLIGHT

4032064

$83.99

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

SCREW(10)

7512027

$1.49

14

NUT(10)

7541925

$1.49

14

NUT(10)

7541925

$1.49

15

CABLE,SOLENOID-STRTR.

4010075

Unavailable

16

CABLE,SOLENOID/STARTER

4010064

Unavailable

17

INSULATOR-CABLE

5410346

$6.39

18

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

19

CABLE,BATTERY-SOLENOID

4010076

Unavailable

20

HOOK-BATT.H/D(10)

7010032

$1.59

21

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

22

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

23

PAD-BATTERY

5810290

$7.27

24

Battery

4140006

$99.99

25

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

26

BOLT(10)

7512232

$1.49

27

WASHER(10)

7571602

$4.79

27

WASHER(10)

7571602

$4.79

28

BOARD,TERMINAL

4040022

Unavailable

29

RIVET, POP(50)

7621322

$0.56

30

SCREW(10)

7512007

$3.99

31

SHIELD,TERM.BOARD

5431152

Unavailable

32

HEAT SINK

5210650

Unavailable

33

RECTIFIER, VOLTAGE

4060087

Unavailable

34

LIMITER,REV.SPEED

4060085

Unavailable

35

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

36

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

37

PIGTAIL, POWER

2460442

$12.39

38

POWER ASM,12V

2410022

Unavailable

39

RIVET,(50)

7621336

$1.59
