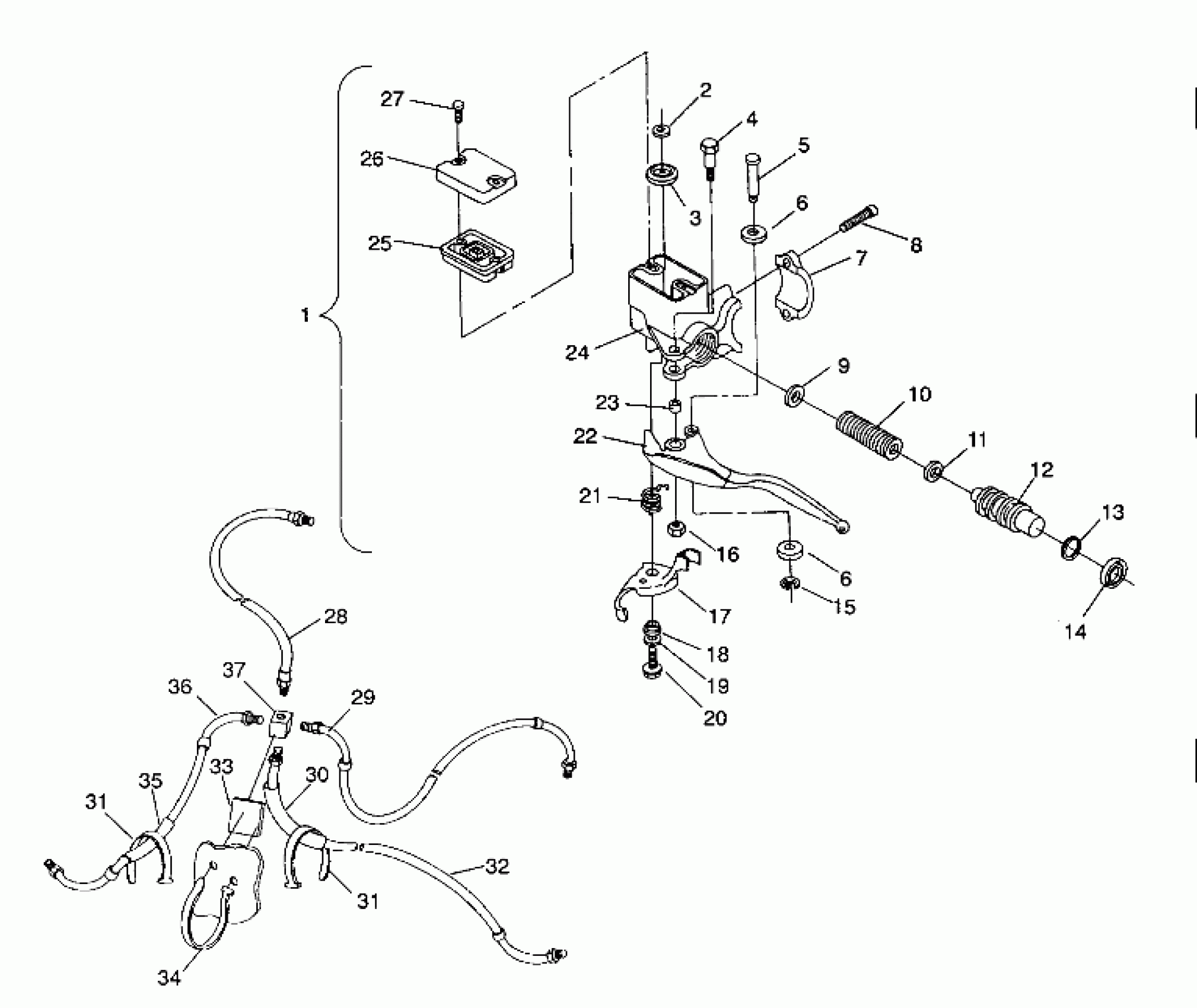

Polaris SPORTSMAN 4X4 - W938039 CONTROLS - MASTER CYLINDER/BRAKE LINE Sportsman 4X4 / W938039 (4926382638021A) Diagram

#

Description
Price

1

MASTER CYL.ASM. Substituted by 2050073 (Incl. 2 - 27)

2050062

$235.51

2

WASHER, BAFFLE(10)

1930662

Unavailable

3

BAFFLE,MASTER CYL.

1930673

Unavailable

4

BOLT,BRAKE LEVER(10)

7512287

Unavailable

5

PIN,BRAKELEVER ROLLER

7661627

Unavailable

6

ROLLER, BRAKE LEVER

5020598

Unavailable

6

ROLLER, BRAKE LEVER

5020598

Unavailable

7

CLAMP, MASTER CYL.

5630342

Unavailable

8

BOLT,SOCKET HEAD(10)

7512290

$4.79

9

WASHER(10)

7555708

$3.99

10

SPRING, MASTERCYL.

7041311

Unavailable

11

SEALCUP, MASTER CYL. Substituted by 5410994

5410784

Unavailable

12

PISTON, MASTER CYL.

5020671

$47.99

13

O RING

5410163

$1.60

14

SEAL, OIL

3610022

Unavailable

15

RING, RETAINING(10)

7710425

Unavailable

16

NUT(10)

7542124

Unavailable

17

LEVER,PARK.BRAKE Substituted by 5240865

5240133

Unavailable

18

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

19

RIVET BURR(50)

7555756

$2.99

20

SCREW(10)

7511876

Unavailable

21

SPRING,PK.BRAKE

7041229

$32.37

22

LEVER, BRAKE,(ATV)

5630455

Unavailable

23

BUSHING,BRAKE LEVER

5332931

Unavailable

24

HOUSING,MASTERCYL.

5130955

$293.65

25

GASKET,MASTER CYL.

5410527

$8.99

26

COVER,MASTER CYL.

5630338

Unavailable

27

SCREW,W/WASHER(10)

7512050

$3.99

28

LINE,BRAKE,UP./FTGS.

1930748

$87.99

29

LINE, R.BRAKE

1930742

Unavailable

30

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

31

STRAP, BLK

7080272

Unavailable

31

STRAP, BLK

7080272

Unavailable

32

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

33

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CONDUIT, 38 CM.

8360031-38

$2.63

36

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

37

FITTING, TEE

7052044

Unavailable
