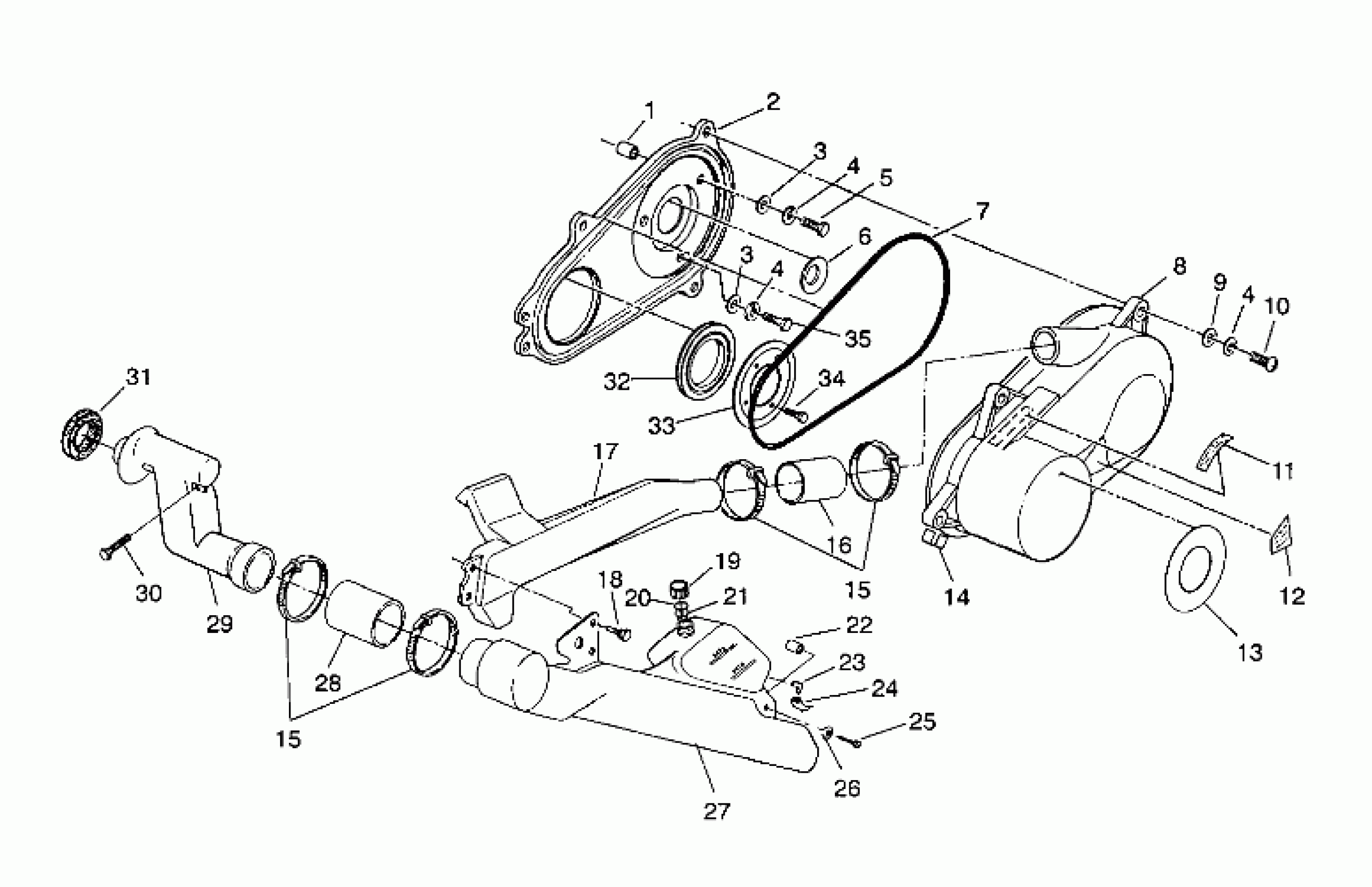

Polaris SPORTSMAN 4X4 - W938039 CLUTCH COVER ASSEMBLY Sportsman 4X4 / W938039 (4926382638024A) Diagram

#

Description
Price

1

SPACER

5333062

Unavailable

2

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$309.99

3

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

4

WASHER(10)

7552605

$5.69

4

WASHER(10)

7552605

$5.69

4

WASHER(10)

7552605

$5.69

5

BOLT(10)

7512277

$4.76

6

SEAL,COVER CASE

5410489

$13.75

7

SEAL,CLUTCHCOVER

5521301

$32.37

8

COVER, CLUTCH,FRONT

5430771

Unavailable

9

WASHER(10) Substituted by 7558301

7555776

$1.19

10

BOLT(10)

7512281

$3.97

11

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

12

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

13

DECAL, PVT [No Longer Available]

7072386

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

BOOT,CLUTCH INTAKE

5410421

$11.32

17

DUCT, AIR OUTLET

5431010

Unavailable

18

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

19

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

20

GASKET-OVERFLOW CAP

5810279

$2.41

21

PLUG, OVERFLOW,(10)

5431096

$2.02

22

SPACER

5020577

$16.80

23

FITTING,90 DEGREE

7052065

$7.14

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

25

SCREW(10)

7512025

$4.76

26

WASHER(10)

7555783

$3.97

27

DOWNTUBE,DUAL INLET Substituted by 5432336

5431185

$133.56

28

BOOT, INTAKE

5410509

Unavailable

29

DUCT, INLET, TOP

5431261

$49.21

30

SCREW(10)

7512017

$4.76

31

SEAL, INTAKE

5810480

Unavailable

32

Seal, Cover Case

5410575

$44.51

33

BRKT,RETAINER,SEAL

5222446-067

Unavailable

34

SCREW & WASHER(10)

3084205

$3.97

35

BOLT(10)

7512278

Unavailable
