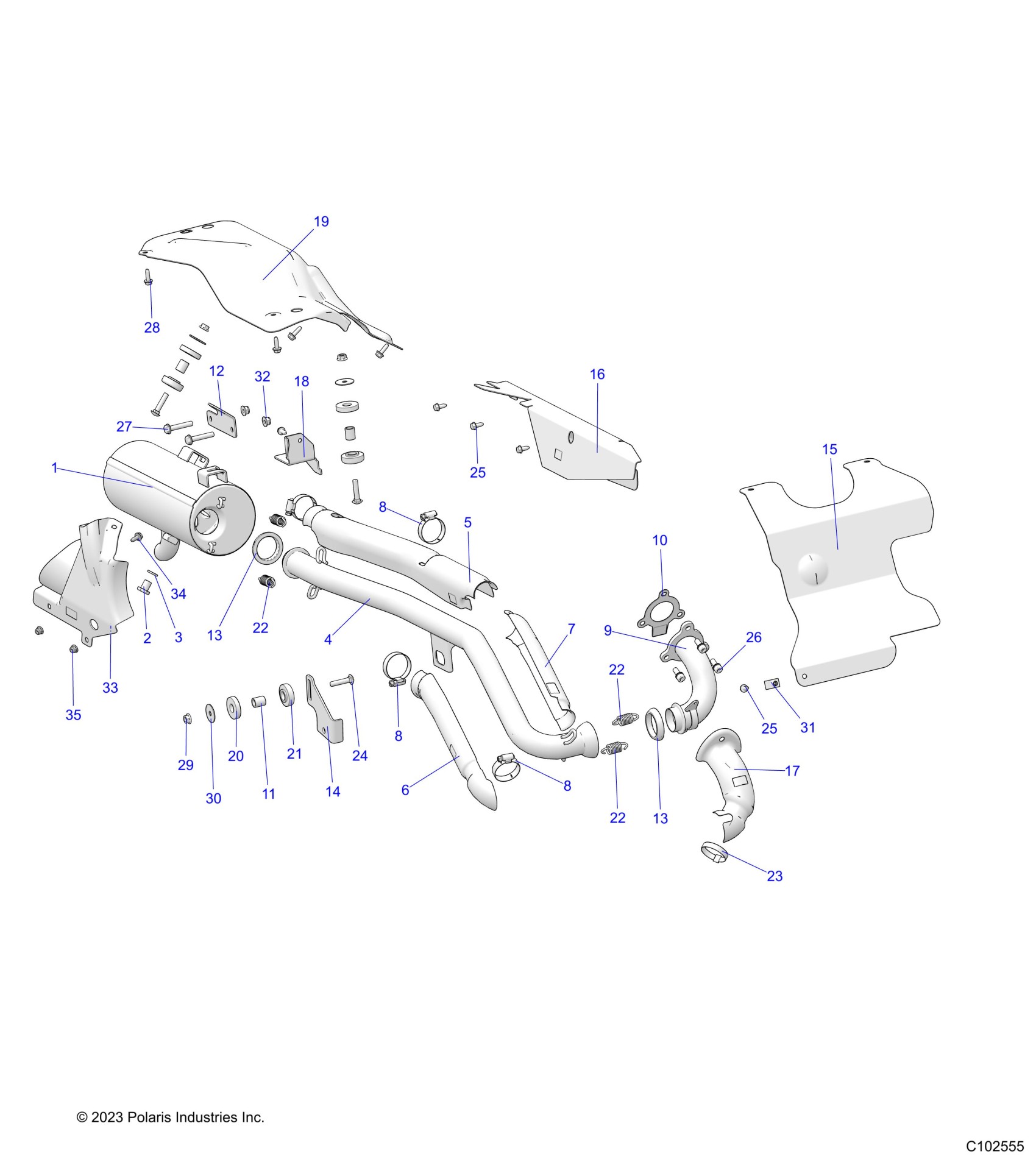

Polaris SPORTSMAN 450 HO UTL 50S (R01) - A23SEG50B1/B3 ENGINE, EXHAUST - A23SEG50B1/B3 (C102555) Diagram

#

Description
Price

1

WELD-EXHAUST,SILENCER [INCL. 1-3]

1263139

$469.99

2

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7520756

$5.56

3

WASHER-CLEAN OUT .51X75X.09

7557077

$9.99

4

ASM-EXHAUST,MID-PIPE [INCL. 4-8]

1263475

$353.40

5

SHIELD-HEAT,EXHAUST,REAR

5267366

$87.13

6

SHIELD-HEAT,EXHAUST,MID,OUTER

5267367

$77.44

7

SHIELD-HEAT,EXHAUST MID,INNER

5267368

$39.99

8

CLAMP-HOSE, 2.00-SS

7082359

$13.49

8

CLAMP-HOSE, 2.00-SS

7082359

$13.49

8

CLAMP-HOSE, 2.00-SS

7082359

$13.49

9

WELD-MANIFOLD,450 HO

1262913

$109.27

10

GASKET, EXHAUST SEALING

5263806

$6.46

11

BUSHING-EXHAUST,15.87 X 21

5144284

$6.35

12

BRACKET, SILENCER, FRAME

5241663

$10.51

13

SEAL, EXHAUST

5256385

$28.32

13

SEAL, EXHAUST

5256385

$28.32

14

BRKT-EXHAUST PIPE SUPPORT,BLK

5266943-329

$13.99

15

SHIELD-HEAT,FUEL TANK,1UP

5267108

$29.99

16

SHIELD-HEAT,AIRBOX

5268861

$56.65

17

SHIELD-EXHAUST,MANIFOLD,450

5262846

$32.37

18

BRKT-EXHAUST MOUNT,BLK

5269882-329

$13.99

19

SHIELD-FENDER

5269956

$76.89

20

WSHR-15.4X38.1X7.9 RUBBER

5414945

$4.76

21

DAMPER-VIBRATION

5414946

$4.84

22

SPRING-EXHAUST

7045211

$8.89

22

SPRING-EXHAUST

7045211

$8.89

22

SPRING-EXHAUST

7045211

$8.89

23

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.76

24

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.38

25

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

25

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

26

SCR-M8X1.25X20,HXSOC-CSSPL-SEM

7517555

$8.73

27

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.76

28

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.17

30

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

31

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

32

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

33

SHIELD-DEBRIS,FMC, BLK

5459928-070

$15.99

34

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

35

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97
