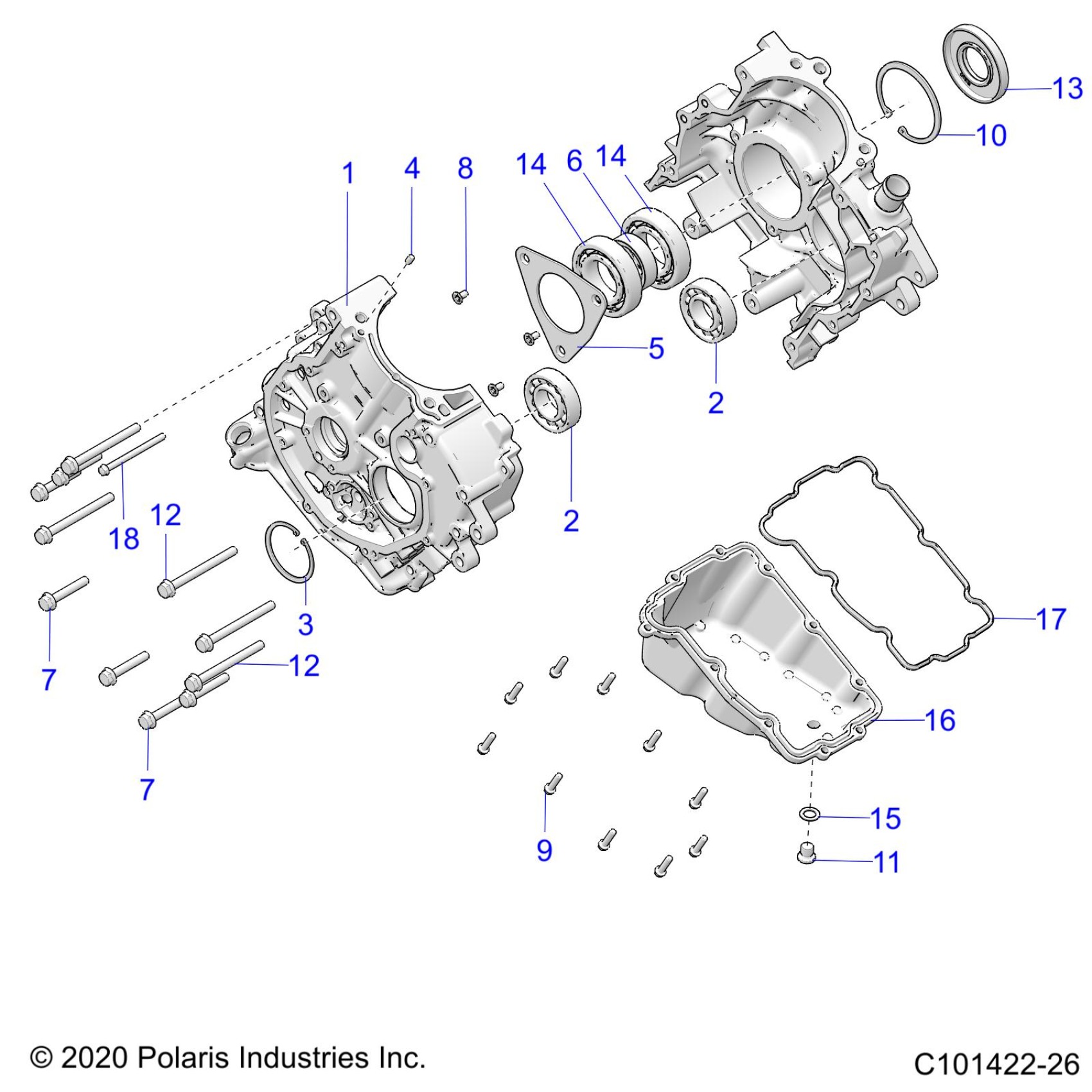

Polaris SPORTSMAN 450 HO UTL 50S (R01) - A23SEG50B1/B3 ENGINE, CRANKCASE - A23SEG50B1/B3 (C101422-26) Diagram

KIT, CRANKCASE [INCL.7, CASES, BREATHER PIPE]

2209888

$978.59

BEARING, BALL [TO 1/15/2023]

3514426

$19.99

BEARING-BALL,30X62X16 [FRM 1/15/2023]

3515827

$16.79

BEARING, BALL [TO 1/15/2023]

3514426

$19.99

BEARING-BALL,30X62X16 [FRM 1/15/2023]

3515827

$16.79

RING-RTNG,DHO-62

7710681

$7.19

PIN-DOWEL,M6X10

5137611

Unavailable

PLATE-BEARING RETAINER

5256915

$19.99

SPACER-BRG,MACH

5144728

$23.99

SCREW, M8x50

7520105

$4.79

SCREW, M8x50

7520105

$4.79

SCREW-M6X12 TORX DR FH

7517598

$11.33

SCR-HXFLG,M6X1.0X25,10.9

7519754

$3.99

RING-SNAP,80X2.5

7710660

$3.99

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

SCREW-M8X1.25X90

7520104

$5.59

SCREW-M8X1.25X90

7520104

$5.59

SEAL-CRANKSHAFT

3610171

$47.99

BEARING, BALL [TO 1/15/2023]

3514389

Unavailable

BEARING-BALL 40X80X18 DG NCAGE [FRM 1/15/2023]

3515831

$32.79

BEARING, BALL [TO 1/15/2023]

3514389

Unavailable

BEARING-BALL 40X80X18 DG NCAGE [FRM 1/15/2023]

3515831

$32.79

WASHER-19X12X1.3,COPPER

5812232

$1.59

PAN, OIL

5143696

$95.99

GASKET, OIL PAN

5414626

$11.99

SCREW-HXFLG,M6X1.0X80

7520115

$7.19
