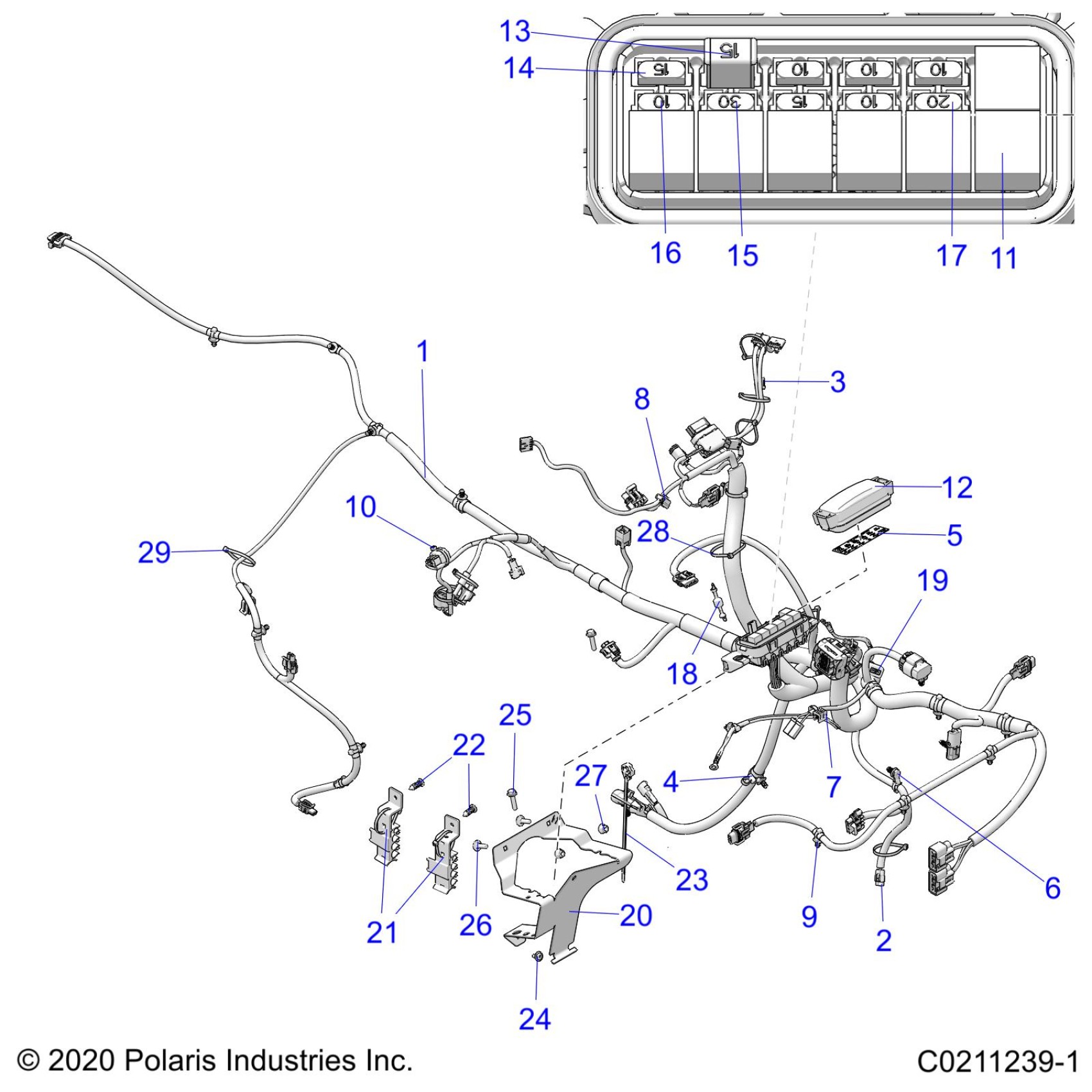

Polaris SPORTSMAN 450 HO UTILITY (R03) - A21SEG50A1/A5/CA1/CA5 ELECTRICAL, MAIN WIRE HARNESS - A21SEG50A1/A5/CA1/CA5 (C0211239-1) Diagram

HARN-MAIN,SPMN,1UP [INCL. 1-19]

2415873

Unavailable

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$7.99

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

LABEL-FUSE BOX

7300164

Unavailable

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.59

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

BREAKER, CIRCUIT, 15 AMP.

4011406

$63.99

FUSE-15AMP,MINI BLADE

4010859

$7.19

FUSE-MAIN,30 AMP

2434015

$7.19

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-PARK,20 AMP

2434017

Unavailable

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

BRKT-FUSE BLOCK,BLK

5268539-067

$35.99

CLIP-ROUTING,MIDFRAME

5457074

$3.99

CLIP-XMAS TREE, .945 X .228

7670101

$2.39

CABLE-TIE,M10X1.5 STUD MNT

7082649

$3.99

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

SCREW, RH CARRIAGE

7519249

$3.19

NUT-M6 FLANGE,NYLOC

7547274

$1.49

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
