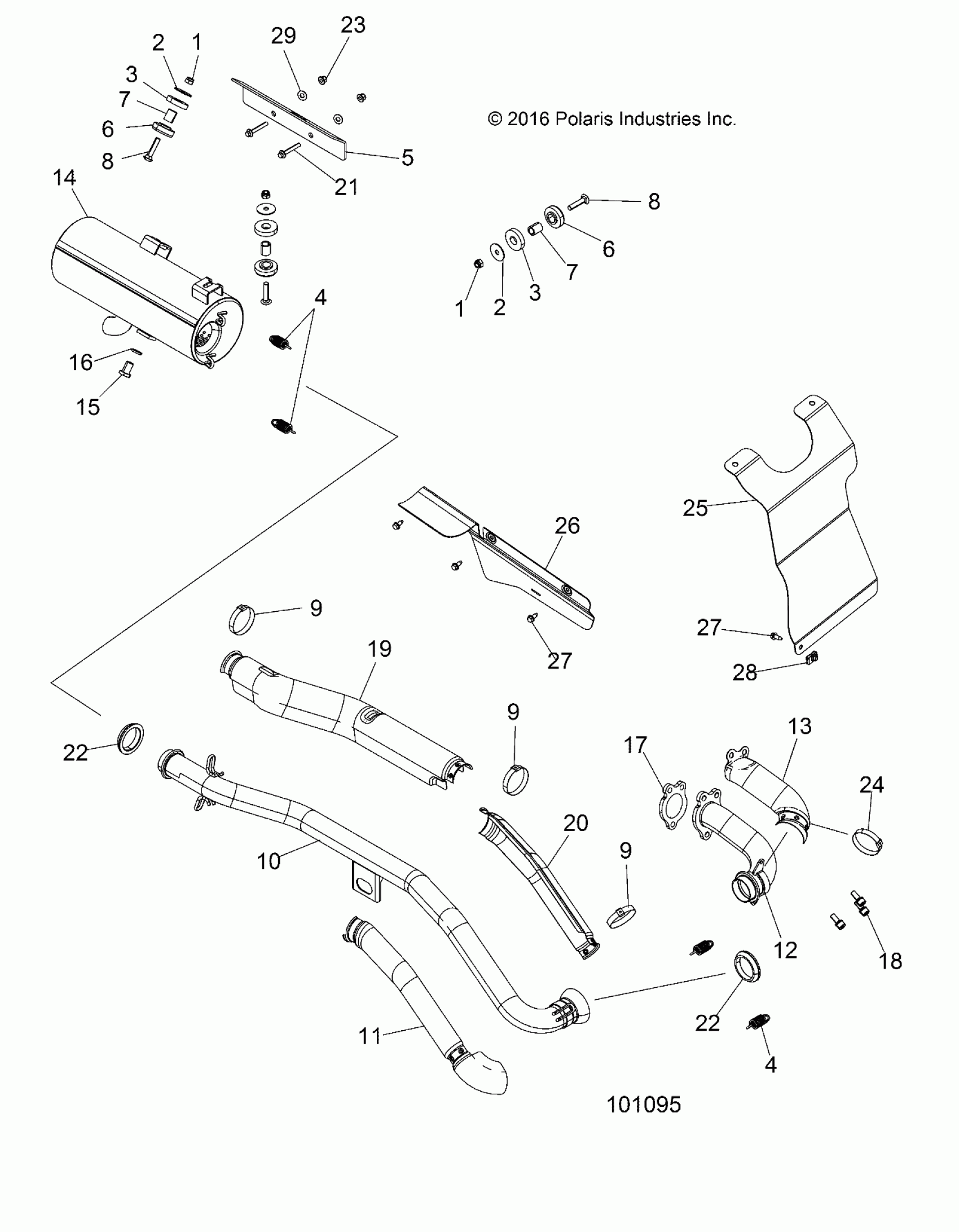

Polaris SPORTSMAN 450 HO (R11) - A17SEA50A1/A5/SEE50A1/SEG50A4 ENGINE, EXHAUST - A17SEA50A1/A5/SEE50A1/SEG50A4 Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

WASHER, RUBBER

5414945

$4.79

3

WASHER, RUBBER

5414945

$4.79

3

WASHER, RUBBER

5414945

$4.79

4

SPRING

7041804

$7.99

4

SPRING

7041804

$7.99

5

BRKT-SILENCER,FRAME,PLTD

5263678

$39.59

6

DAMPER-VIBRATION

5414946

$4.79

6

DAMPER-VIBRATION

5414946

$4.79

7

BUSHING

5010192

$6.39

7

BUSHING

5010192

$6.39

8

BOLT

7515316

$2.39

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

9

CLAMP-HOSE, 1.750-SS

7080560

$11.19

10

ASM-EXHAUST PIPE,570 EFI,SS [INCL. PIPE, SHIELDS, CLAMPS]

1262917

$334.03

11

SHIELD-HEAT,EXHAUST,MID

5260801

$59.99

12

WELD-MANIFOLD,450 HO

1262913

$107.99

13

SHIELD-EXHAUST,MANIFOLD,450

5262846

$31.99

14

SILENCER,EXHAUST, POWDER BLACK

1262445-489

$283.99

15

BOLT

7512666

$2.39

16

WASHER, CLEAN OUT

7556230

$1.49

17

GASKET-EXHAUST SEALING

5263806

Unavailable

18

SCREW

7517555

$8.79

19

SHIELD-HEAT,EXHAUST,REAR

5260802

Unavailable

20

SHIELD-HEAT,EXHAUST MID,INNER

5260808

$63.99

21

Bolt

7518341

$4.79

22

SEAL, EXHAUST

5256385

$27.99

22

SEAL, EXHAUST

5256385

$27.99

23

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

24

CLAMP

7082132

$4.79

25

SHIELD-HEAT,FUEL TANK

5263226

$31.99

26

SHIELD-HEAT,AIRBOX

5263227

$23.99

27

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

27

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

28

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

29

WASHER-FL 10.7X21.9X2.5-Y

7556099

$1.59
