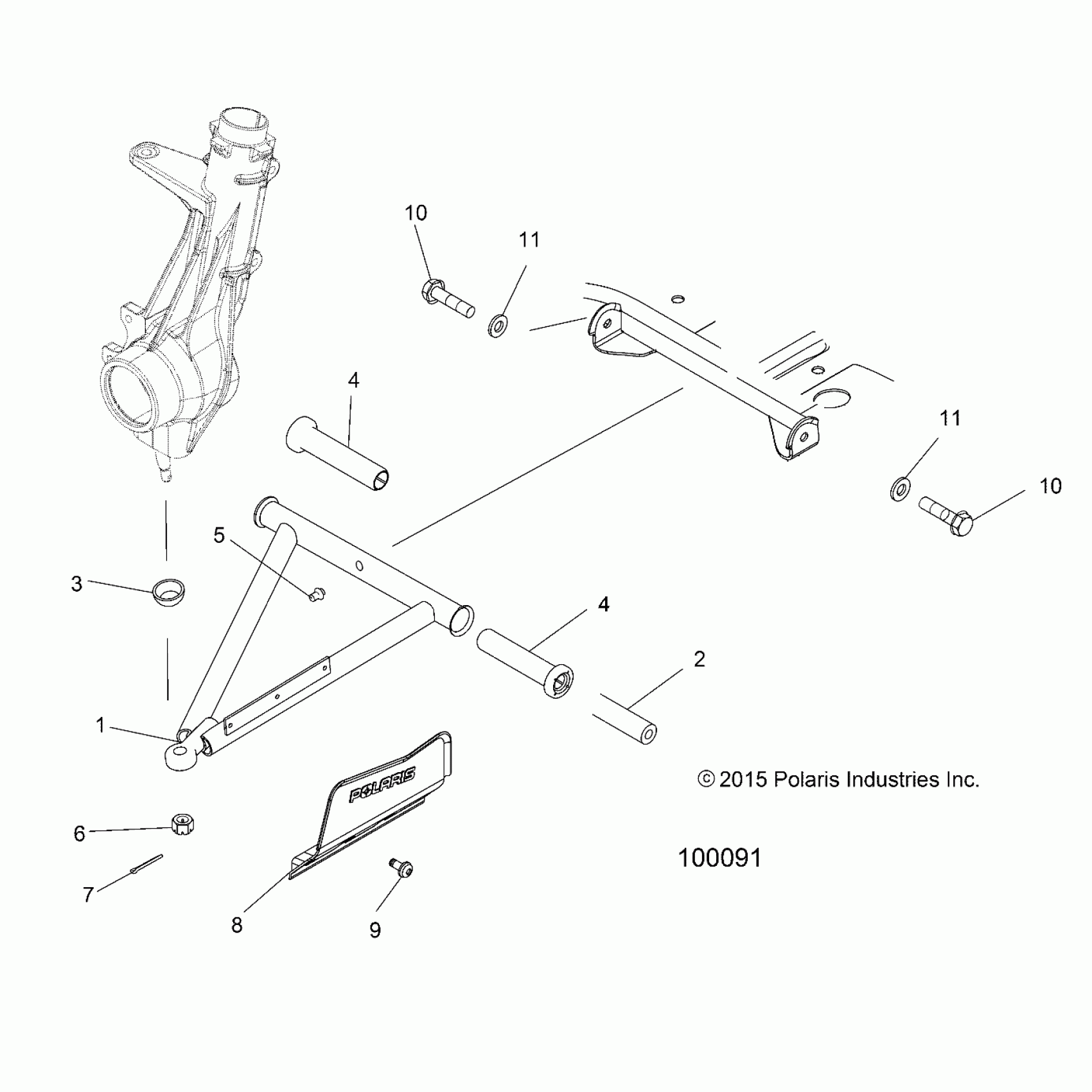

Polaris SPORTSMAN 450 HO (R11) - A16SEA45A1/A5/SEE45A1 SUSPENSION, A-ARM and STRUT MOUNTING - A16SEA45A1/A5/SEE45A1 100091] Diagram

WELD-A-FRAME,FLARED,LH,BLK

1542161-067

Unavailable

WELD-A-FRAME,FLARED,RH,BLK

1542162-067

Unavailable

SHAFT-A-ARM,C-BORE

5139929

$27.99

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

Fitting, Lubrication

7080433

$1.49

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

Pin, Cotter

7661203

$1.49

Shield, CV Front, Black, LH

5435028-070

$23.99

Shield, CV Front, Black, RH

5435029-070

$23.99

Screw

7512084

$1.49

SCREW

7520340

Unavailable

SCREW

7520340

Unavailable

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
