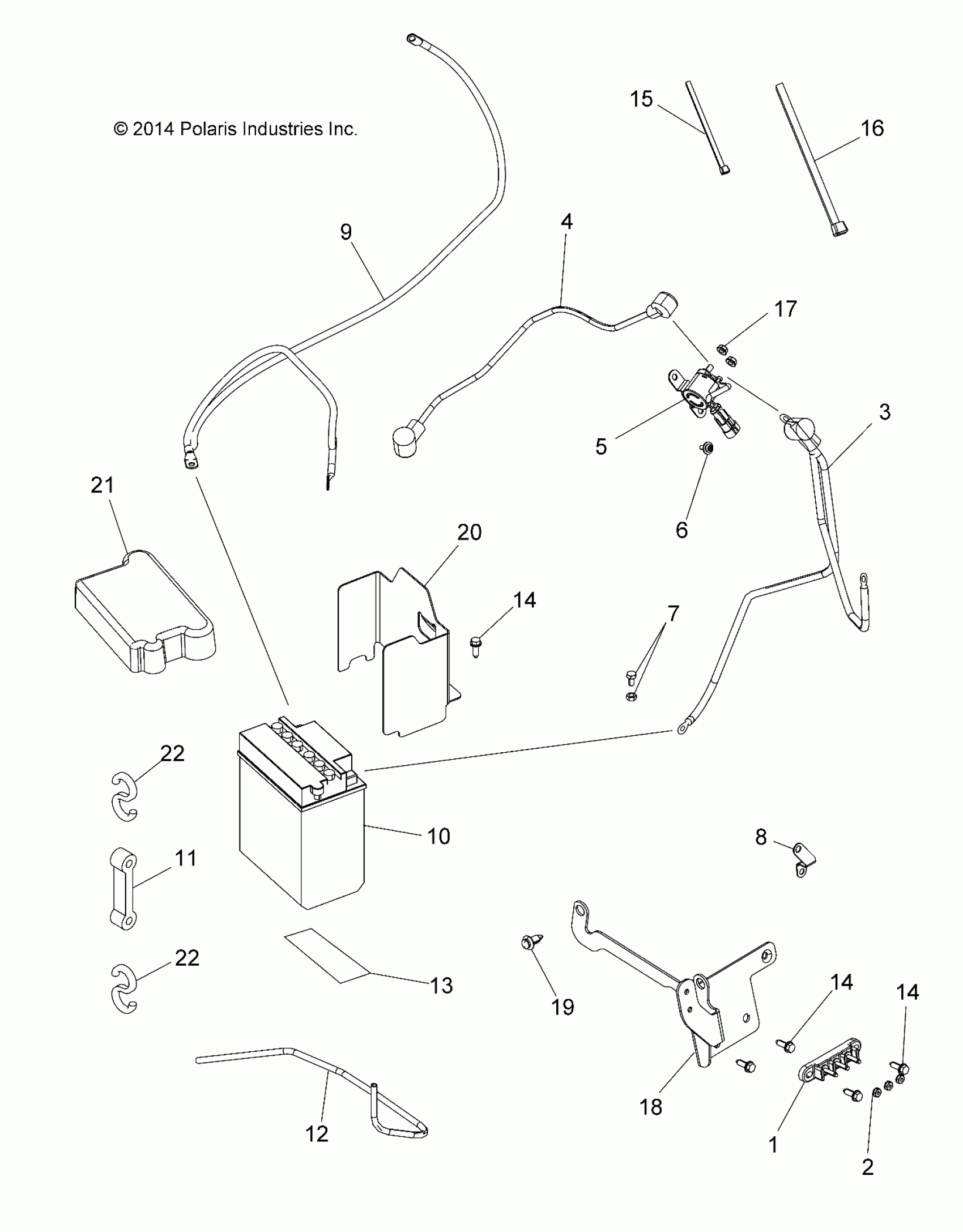

Polaris SPORTSMAN 450 HO (R11) - A16SEA45A1/A5/SEE45A1 ELECTRICAL, BATTERY - A16SEA45A1/A5/SEE45A1 Diagram

#

Description
Price

1

BLOCK, TERMINAL, 3 POST

4011892

$27.99

2

NUT

7547341

$1.49

3

CABLE, BATTERY, 6 GAUGE

4014935

$55.99

4

INSULATOR-CABLE [USE WITH 4014424-750]

5410346

$6.39

4

CABLE, BATTERY, 6 GAUGE, FLAT

4014424-750

$43.99

5

SOLENOID, STARTER

4012001

Unavailable

6

Screw

7512084

$1.49

7

KIT, BATTERY BOLT

2202213

$3.79

8

STRAP, GROUND

5260167

$14.07

9

CABLE, BATTERY, 6 GAUGE

4014936

$51.99

10

BATTERY-14AH [STD]

4140006

$99.99

10

BATTERY-SEALED,14AH,ETX15 [OPT]

4011138

$107.99

11

Strap, Battery Hold Down

5412499

$4.62

12

Tube, Battery Vent

5432077

$8.08

13

Foam, Cover

5813265

Unavailable

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

17

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

18

BRACKET, FUSE BLOCK

5259734

$27.99

19

Rivet

7661855

$1.49

20

BRACKET, BATTERY, GUARD

5259571

$31.99

21

BATTERY, COVER

5431769

$14.39

22

Hook, Battery Strap

7010032

$1.59

22

Hook, Battery Strap

7010032

$1.59
