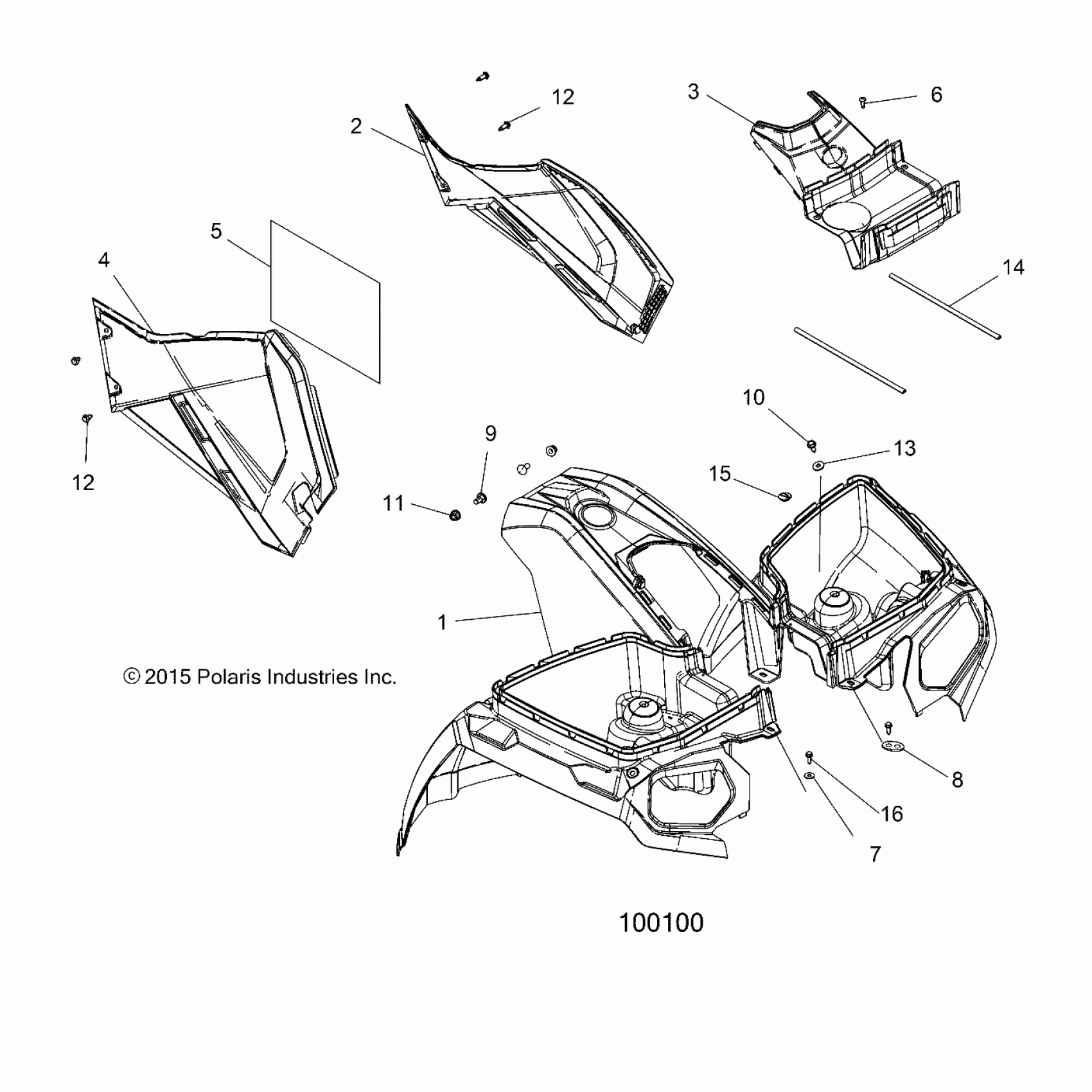

Polaris SPORTSMAN 450 HO (R11) - A16SEA45A1/A5/SEE45A1 BODY, FRONT CAB and SIDE PANELS - A16SEA45A1/A5/SEE45A1 Diagram

ASM., CAB, FRONT, SAGE BRUSH GREEN METALLIC [INCL. WARNING DECALS][A1]

2634162-498

$501.89

ASM-CAB FR,SVC,VELOCITY BLUE [INCL. WARNING DECALS][A5]

2634162-689

$663.79

PANEL, SIDE, LH, SAGE BRUSH GREEN METALLIC [A1]

5450521-498

Unavailable

PANEL-SIDE,LH,VELOCITY BLUE [A5]

5450521-689

$60.70

COVER, FRONT, SAGE BRUSH GREEN METALLIC [A1]

5439069-498

$101.17

COVER-FRONT,VELOCITY BLUE,HDPE [A5]

5439069-689

$133.56

ASM-PANEL/SHIELD,RH,S.BRSH GRN [A1][INCL. 5][TO 6-27-16]

2636441-498

$259.03

ASM-PANEL/SHIELD,RH,S.BRSH GRN [A1][INCL. 5263249 QTY 1, 7710850 QTY 5][FROM 6-27-16]

2636441-498

$259.03

ASM-PANEL/SHIELD,RH,VEL. BLUE [A5][INCL. 5][TO 6-27-16]

2636441-689

$263.08

ASM-PANEL/SHIELD,RH,VEL. BLUE [A1][INCL. 5263249 QTY 1, 7710850 QTY 5][FROM 6-27-16]

2636441-689

$263.08

FOIL-SIDE PANEL,SPMN

5814317

$20.22

SCREW

7519045

$3.17

Washer, Flat

7555859

$1.19

BRACKET, PLUG MOUNT

5258497

$5.65

BOLT

7512193

$2.38

SCREW

7515399

$1.19

NUT, FLANGED, NYLOK

7542153

$1.59

Rivet

7661855

$1.19

Rivet

7661855

$1.19

WASHER, FLAT

7555960

$3.97

SEAL, BULB

5521697-350

$40.46

PLUG-COMPARTMENT

5412981

$3.79

SCREW

7512232

$1.19
