- SPORTSMAN 450 HO (R04) - A20SEA50A1/A5/CA1/CA5
ENGINE, EXHAUST - A20SEA50A1/A5/CA1/CA5 (C0211352-1)

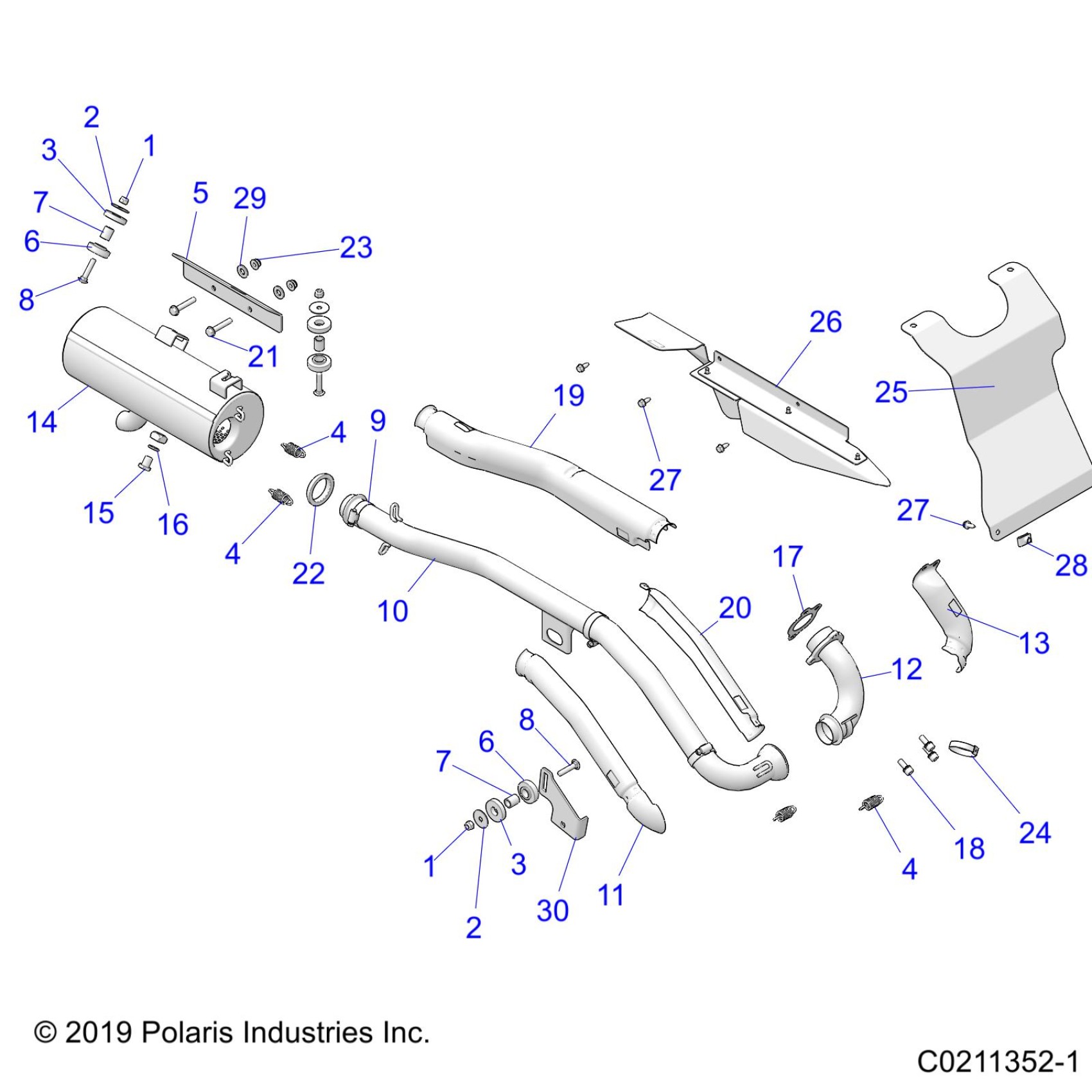

Polaris SPORTSMAN 450 HO (R04) - A20SEA50A1/A5/CA1/CA5 ENGINE, EXHAUST - A20SEA50A1/A5/CA1/CA5 (C0211352-1) Diagram
#
Description
Price
1
NUT-5/16-18 NYLOK-Y
7542324
$1.49
1
NUT-5/16-18 NYLOK-Y
7542324
$1.49
2
WASHER
7555716
$1.59
2
WASHER
7555716
$1.59
3
WASHER, RUBBER
5414945
$4.79
3
WASHER, RUBBER
5414945
$4.79
4
SPRING
7041804
$7.99
4
SPRING
7041804
$7.99
4
SPRING
7041804
$7.99
5
BRKT-SILENCER,FRAME,PLTD
5263678
$39.59
6
DAMPER-VIBRATION
5414946
$4.79
6
DAMPER-VIBRATION
5414946
$4.79
7
BUSHING
5010192
$6.39
7
BUSHING
5010192
$6.39
8
BOLT
7515316
$2.39
8
BOLT
7515316
$2.39
9
CLAMP-HOSE
7082359
$13.59
10
ASM-EXHAUST PIPE,570 EFI,SS [INCL. PIPE, SHIELDS, CLAMPS]
1263100
$275.99
11
SHIELD-HEAT,EXHAUST,MID
5260801
$59.99
12
WELD-MANIFOLD,450 HO
1262913
$107.99
13
SHIELD-EXHAUST,MANIFOLD,450
5262846
$31.99
14
WELD-EXHAUST,SILENCER [INCL. 15,16]
1263139
Unavailable
15
BOLT-�-13 X5/8 HHCS 304 SS
7520756
$5.59
16
WASHER-CLEAN OUT
7557077
$8.35
17
GASKET-EXHAUST SEALING
5263806
Unavailable
18
SCREW
7517555
$8.79
19
SHIELD-HEAT,EXHAUST,REAR
5265059
$67.99
20
SHIELD-HEAT,EXHAUST MID,INNER
5260808
$63.99
21
Bolt
7518341
$4.79
22
SEAL, EXHAUST
5256385
$27.99
23
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
24
CLAMP
7082132
$4.79
25
SHIELD-HEAT,FUEL TANK
5263226
$31.99
26
ASM-SHIELD,AIRBOX
2636957
$52.79
27
SCR-1/4-20X5/8,TAP/R-Y
7517386
$1.49
27
SCR-1/4-20X5/8,TAP/R-Y
7517386
$1.49
28
NUT-CHIMNEY 1/4-20,GR-5
7670096
$1.59
29
WASHER-FL 10.7X21.9X2.5-Y
7556099
$1.59
30
BRKT-EXHAUST PIPE SUPPORT,BLK
5266943-067
$12.79
