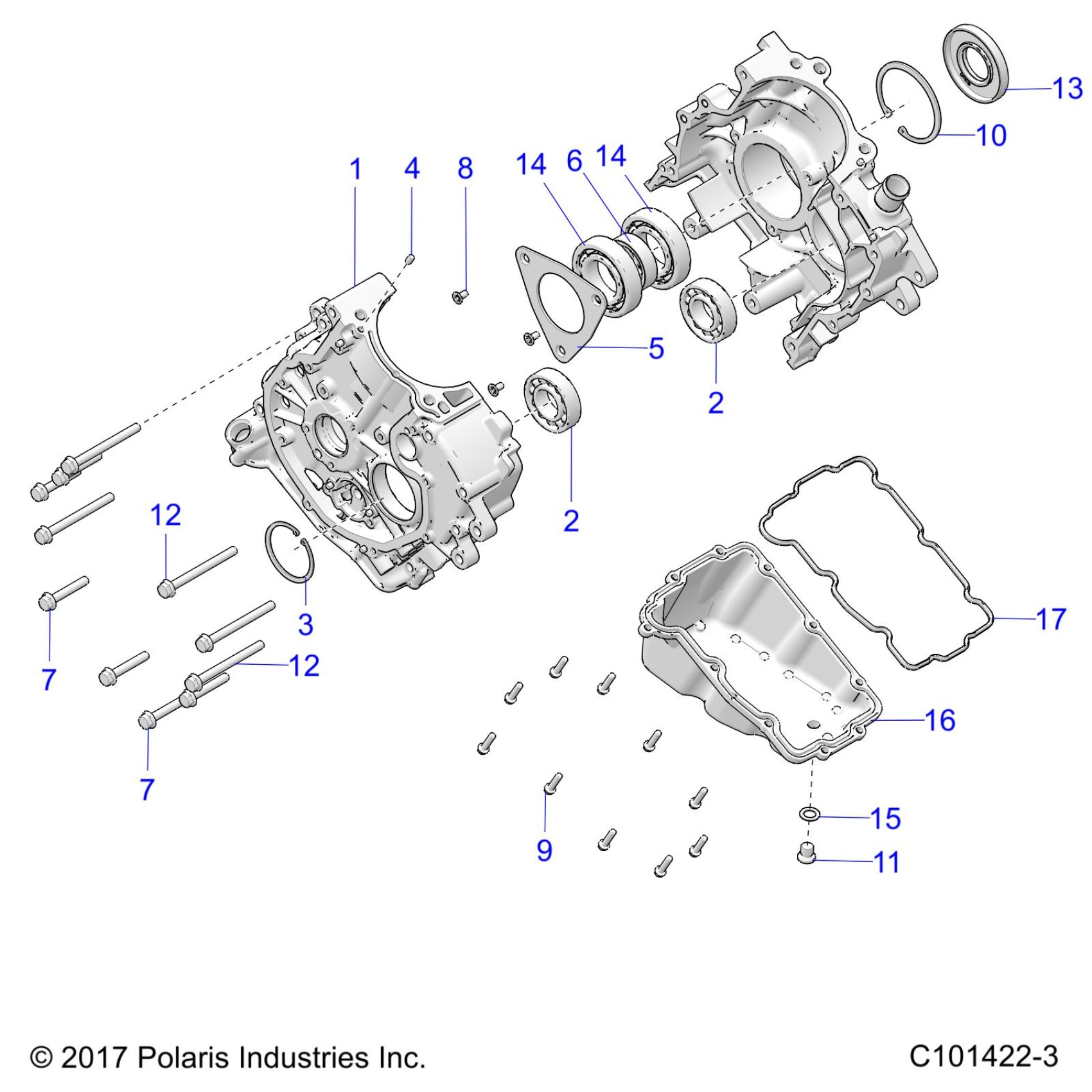

Polaris SPORTSMAN 450 HO (R04) - A20SEA50A1/A5/CA1/CA5 ENGINE, CRANKCASE - A20SEA50A1/A5/CA1/CA5 (C101422-3) Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL: 7, CASES, PINS, BREATHER PIPE]

2206361

$1,249.99

2

BEARING, BALL

3514426

$19.84

2

BEARING, BALL

3514426

$19.84

3

RING-RTNG,DHO-62

7710681

$7.14

4

PIN, DOWEL

5137611

$2.38

5

PLATE-BEARING RETAINER

5256915

$24.27

6

SPACER-BRG,MACH

5140919

$23.81

7

SCREW

7520105

$4.76

7

SCREW

7520105

$4.76

8

SCREW

7517598

$11.33

9

SCR-HXFLG,M6X1.0X25,10.9

7519754

$3.97

10

RING-SNAP,80X2.5

7710660

$4.03

11

PLUG, SOCKET

7052306

$15.37

12

SCREW

7520104

$5.56

12

SCREW

7520104

$5.56

13

SEAL-CRANKSHAFT

3610171

$48.56

14

BEARING, BALL

3514389

$32.54

14

BEARING, BALL

3514389

$32.54

15

WASHER, COPPER

5812232

$1.59

16

PAN, OIL

5138327

$101.17

17

GASKET, OIL PAN

5414626

$12.13
