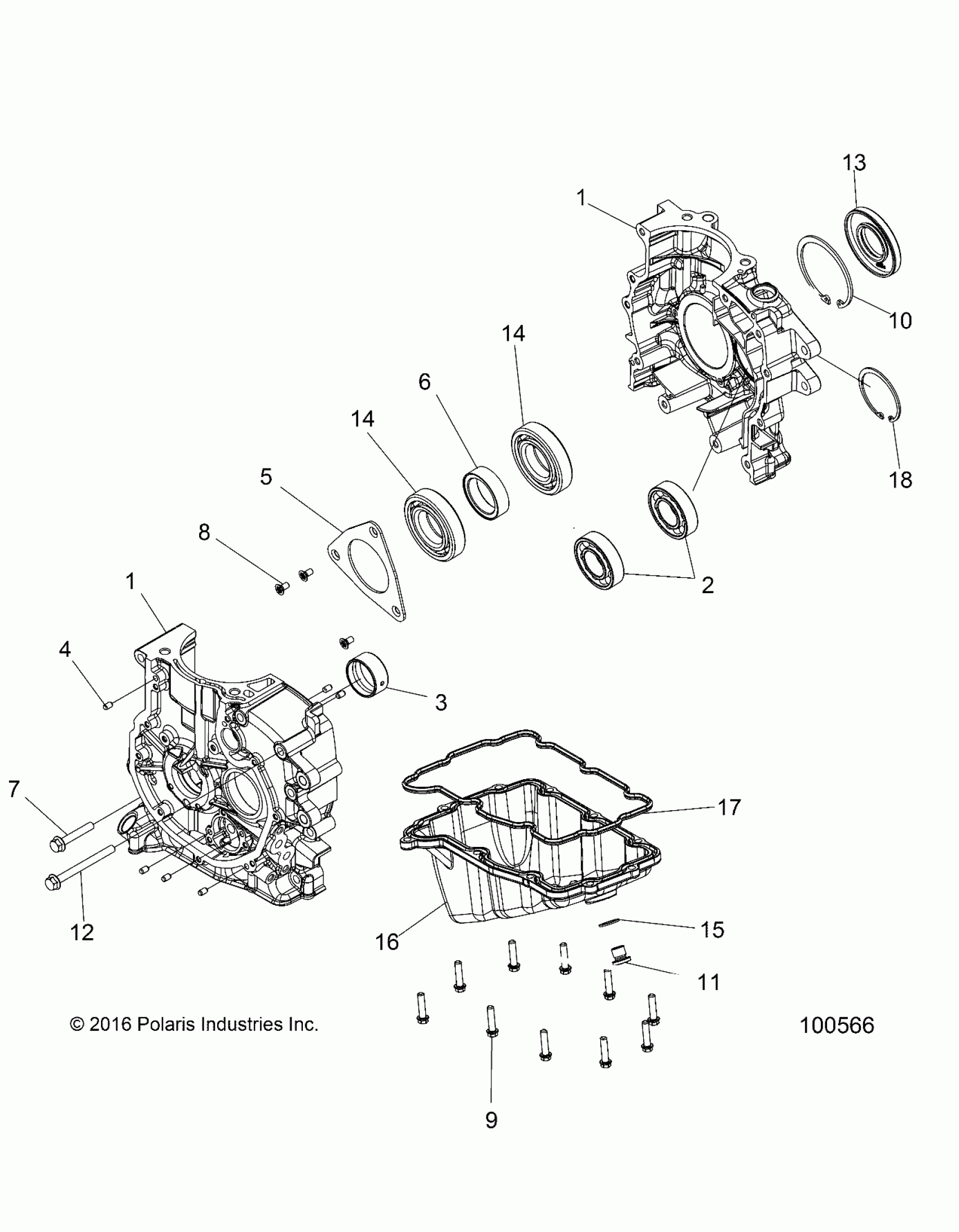

Polaris SPORTSMAN 450 HO (R04) - A19SEA50B1/B7/SEE50B7/B3/SEG50B4 ENGINE, CRANKCASE - A19SEA50B1/B7/SEE50B7/B3/SEG50B4 Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL.7,12, BEARINGS, CASES]

2206361

$978.59

1

KIT, CRANKCASE [INCL.7,12, BEARINGS, CASES]

2206361

$978.59

2

BEARING, BALL

3514426

$19.99

3

BEARING, MAIN

-------

Unavailable

4

PIN, DOWEL

5137611

Unavailable

5

PLATE-BEARING RETAINER

5256915

$19.99

6

SPACER-BRG,MACH

5140919

Unavailable

7

SCREW

7520105

$4.79

8

SCREW

7517598

$11.33

9

SCR-HXFLG,M6X1.0X25,10.9

7519754

$3.99

10

RING-SNAP,80X2.5

7710660

$3.99

11

PLUG, SOCKET

7052306

$15.37

12

SCREW

7520104

$5.59

13

SEAL-CRANKSHAFT

3610171

$47.99

14

BEARING, BALL

3514389

Unavailable

14

BEARING, BALL

3514389

Unavailable

15

WASHER, COPPER

5812232

$1.59

16

PAN, OIL

5138327

Unavailable

17

GASKET, OIL PAN

5414626

$11.99

18

RING, RETAINING

7710681

$7.19
