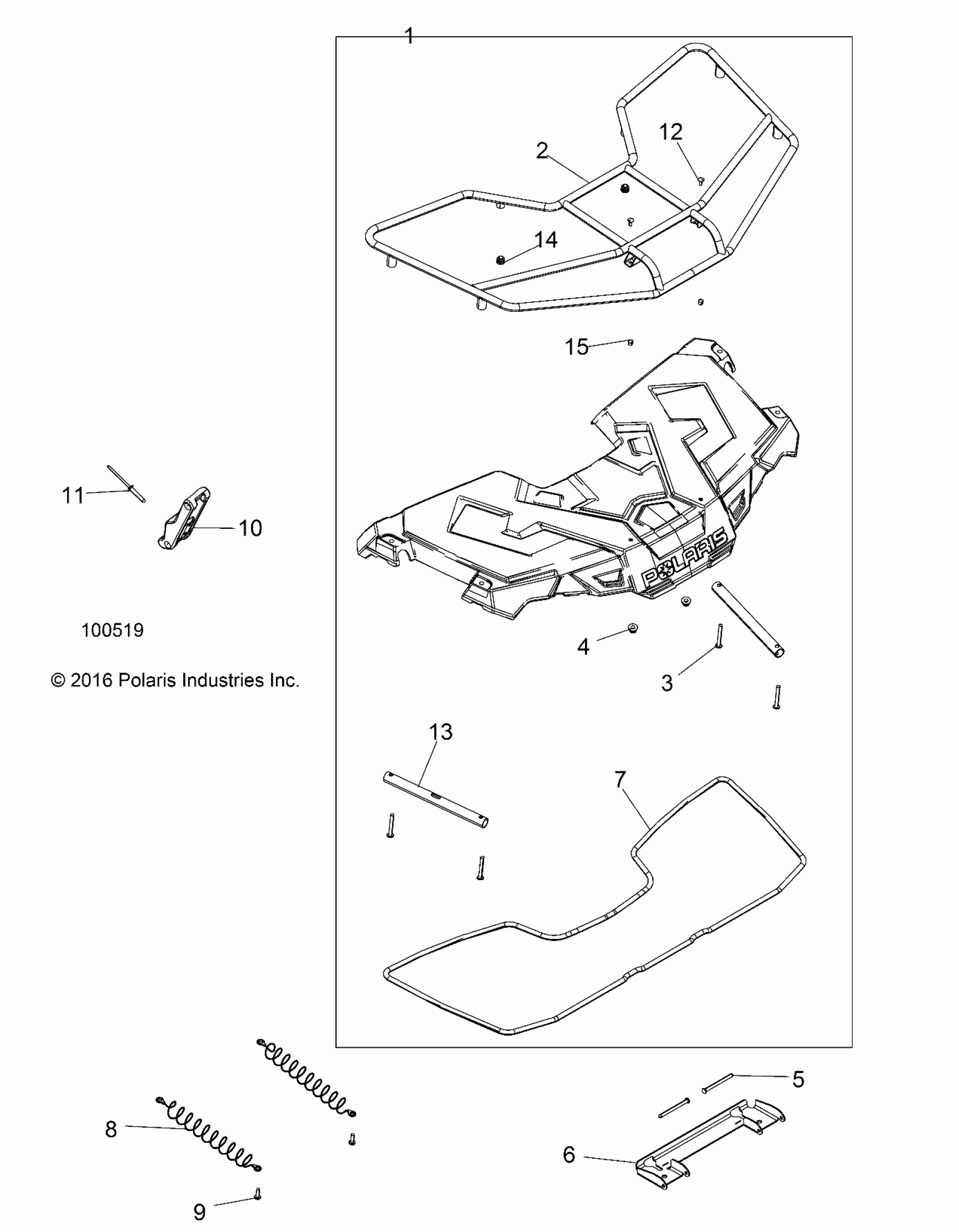

Polaris SPORTSMAN 450 HO (R04) - A19SEA50B1/B7/SEE50B7/B3/SEG50B4 BODY, STORAGE, FRONT - A19SEG50B4 Diagram

#

Description

Price

1

ASM-RACK,FRONT,W/PLUGS,BLK [INCL. RACK, WARNING DECAL, TUBES, PLUGS][SEE 2636440-070 RACK W/O WELD RACK]

2636500-070

$419.03

2

WELD-RACK,FRONT,MATTE BLK

1022583-458

$242.84

3

SCR-5/16-18X2.50 TX-M

7518462

$2.38

4

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

5

PIN, PIVOT, RACK

4013425

$1.19

6

BRACKET, PIVOT, RACK, BLACK

5259854-329

$32.37

7

SEAL, BOX, CAB, FRONT

5521833

$32.37

8

CABLE, COVER, BOX, PRE-COIL

7081741

$36.41

9

SCREW

7518238

$3.97

10

LATCH, RUBBER, LOWER

7081927

$35.71

11

RIVET

7621334

$1.49

12

SCR-CARRIAGE,M6X16

7520194

$3.97

13

TUBE-SUPPORT,RACK,FRONT,M.BLK

5338665-458

$32.37

14

PLUG-BARBED,.625

7081085

$7.27

15

PLUG-HOLE

7080398

$5.65
