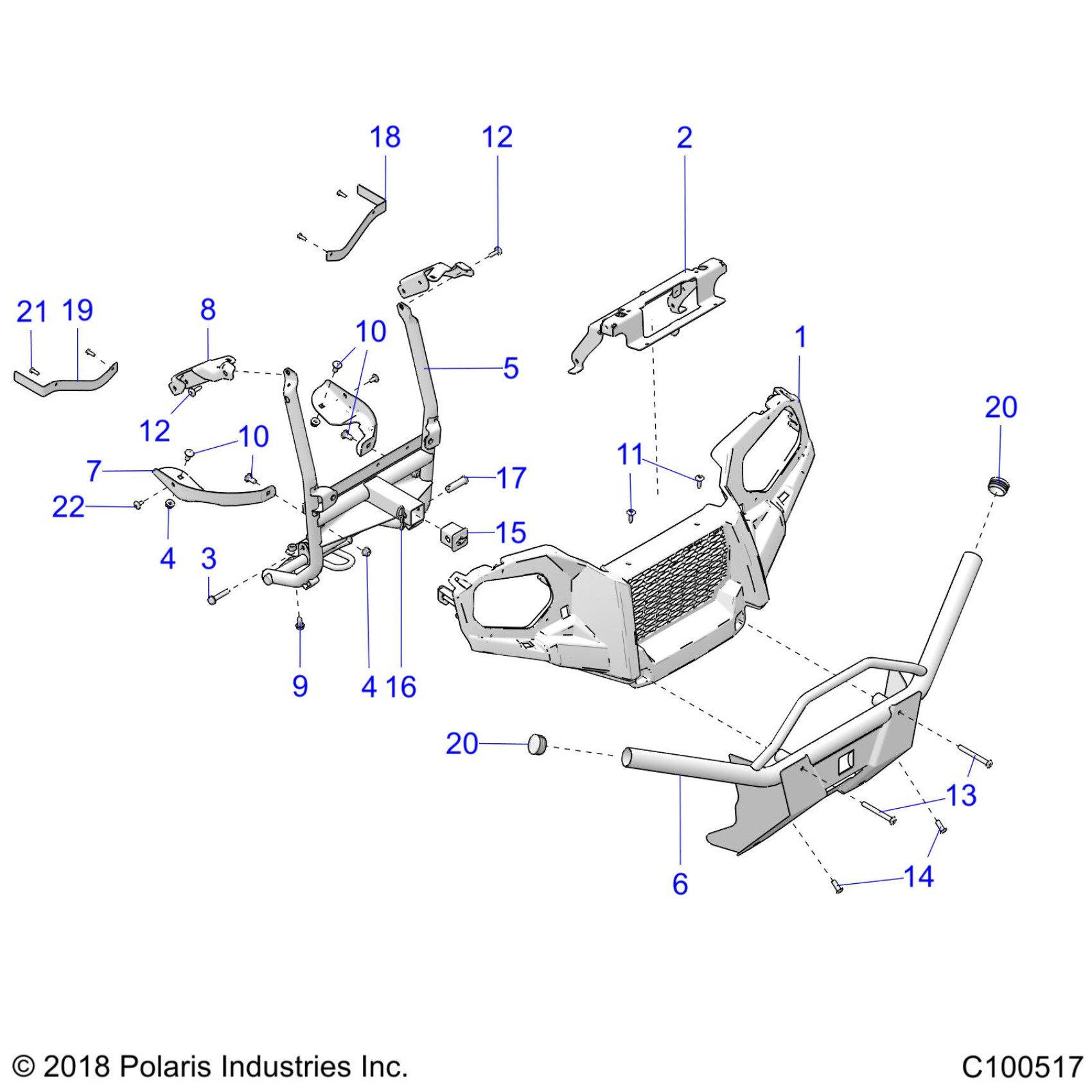

Polaris SPORTSMAN 450 HO (R04) - A19SEA50B1/B7/SEE50B7/B3/SEG50B4 BODY, FRONT BUMPER and MOUNTING - A19SEG50B4 Diagram

BUMPER-FRONT FASCIA,BLK

5438559-070

$159.99

BRACKET, RADIATOR, UPPER

5259852

$51.99

BOLT, FLANGE

7518341

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

WELD-BUMPER,FRONT,BLK [TO 1/01/2019]

1022511-067

$159.99

WELD-BUMPER,FRONT,UTILITY,BLK [FROM 1/01/2019]

1025068-067

$159.99

WELD-BUMPER,FRONT,MATTE BLK

1022574-458

$159.99

BRKT-RAD SUPPORT,RH,BLK

5262783-067

$65.99

BRKT-RAD SUPPORT,LH,BLK

5262782-067

$70.39

BRKT-FASCIA,SUPPORT,UPR,LH,BLK

5263043-067

$47.99

BRKT-FASCIA,SUPPORT,UPR,RH,BLK

5263044-067

$47.99

SCREW

7515399

$1.49

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$4.79

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$4.79

SCREW

7517685

$1.59

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

SCR-5/16-18X3.25 TX-M

7518215

$4.79

SCR-5/16-18X7/8 TX-M

7518216

$3.19

PLUG-HITCH,BLK

5453632-070

$8.79

CLIP-HITCHPIN .148X3 1/16

7661067

$2.39

PIN-CLEVIS,1/2 X 1 3/4

7661878

$2.39

BRKT-REFLECTOR,FRONT,LH,BLK

5261969-067

$35.99

BRKT-REFLECTOR,FRONT,RH,BLK

5261970-067

$35.99

CAP-BUMPER,END

5433305

$5.59

CAP-BUMPER,END

5433305

$5.59

SCR-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

SCR-1/4-20X.75,TR/TX-M

7518280

$1.49
