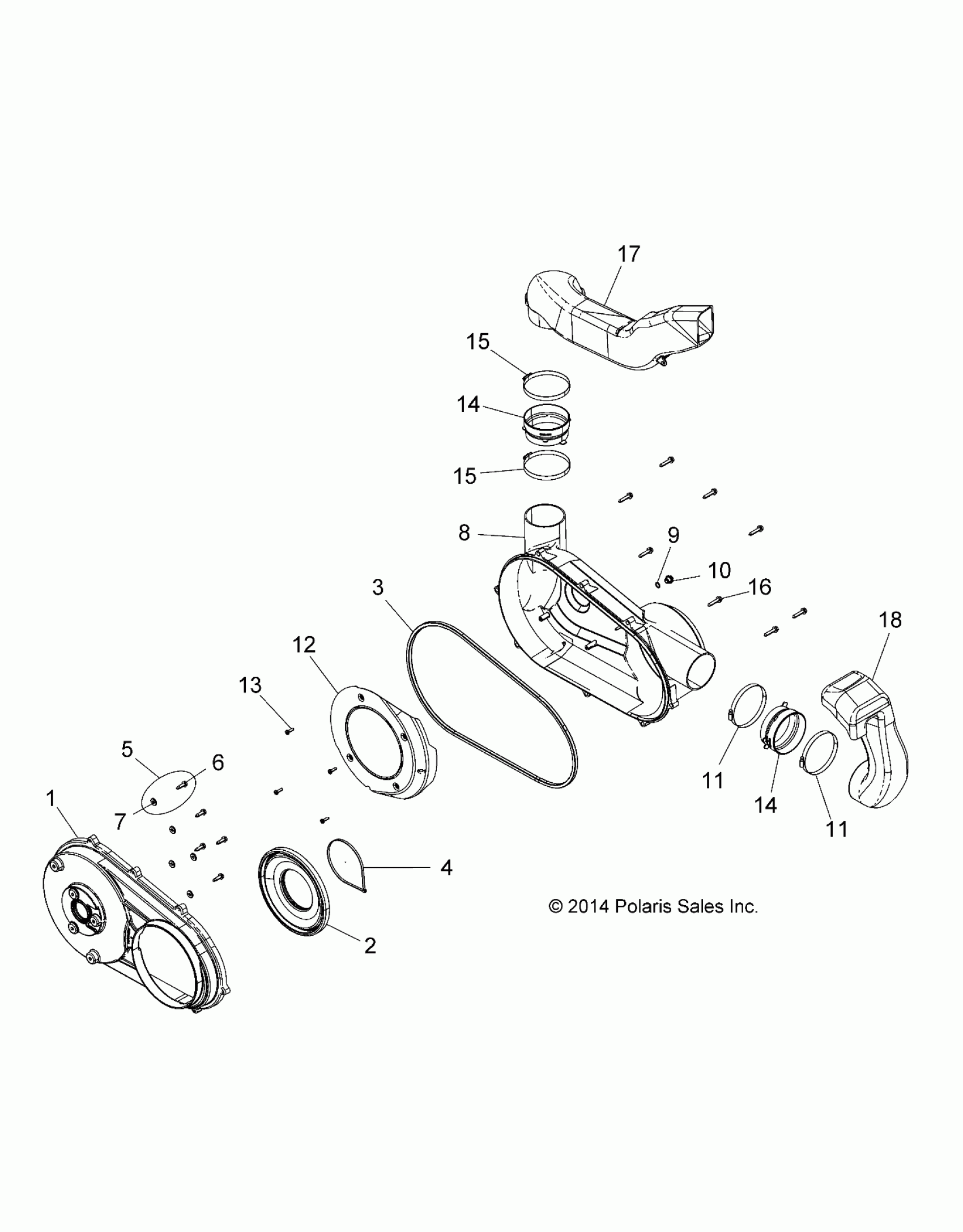

Polaris SPORTSMAN 450 HO (R04) - A19SEA50B1/B7/SEE50B7/B3/SEG50B4 BODY, CLUTCH COVER - A19SEA50B1/B7/SEE50B7/B3/SEG50B4 Diagram

#

Description
Price

1

ASM., CLUTCH COVER, INNER [INCL. COVER,2,3]

2634896

$99.99

2

SEAL, CLUTCH COVER, INNER

5414727

$59.99

3

SEAL, CLUTCH COVER, OUTER

5521738

$42.46

4

CABLE-TIE,13-102MM,NON-FLAM

7082260

$5.59

5

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

6

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

8

ASM., CLUTCH COVER, OUTER [INCL. 10,12,13,14]

2634897

$175.99

9

O RING-.364X.504X.07

5410542

Unavailable

10

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

11

CLAMP, WORM DRIVE

7081626

$7.99

11

CLAMP, WORM DRIVE

7081626

$7.99

12

COVER, CLUTCH, INTAKE, BAFFLE

5450420

$87.99

13

SCREW

7512026

$1.49

14

BOOT, DUCT, CLUTCH

5414768

$14.39

14

BOOT, DUCT, CLUTCH

5414768

$14.39

15

CLAMP, WORM DRIVE

7081626

$7.99

15

CLAMP, WORM DRIVE

7081626

$7.99

16

SCREW

7519849

$3.19

17

DUCT, CLUTCH AIR INLET

5451155

$55.99

18

DUCT, CLUTCH OUTLET

5450546

$51.99
