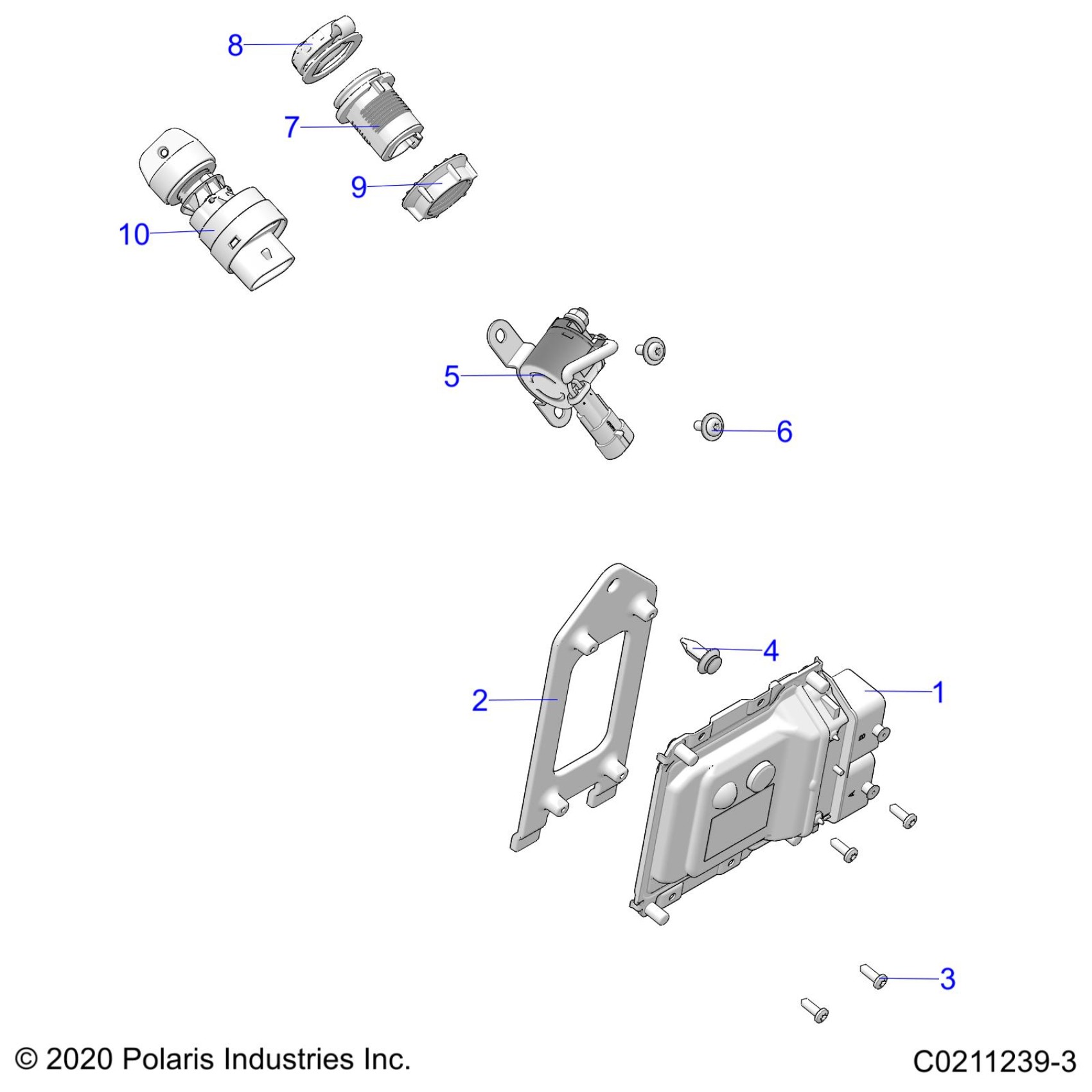

Polaris SPORTSMAN 450 HO (R03) - A21SEA50A1/A5/CA1/CA5 ELECTRICAL, SWITCHES, SENSORS and ECM - A21SEA50A1/A5/CA1/CA5 (C0211239-3) Diagram

#

Description

Price

1

ECU, BASE, M17

4012838

$440.69

2

COVER, ECM [FROM 11/9/2020][TO 2/9/2021][NOT ILLUSTRATED]

5438786

$10.39

2

COVER-ECU,RUBBER [FROM 2/9/2021][NOT ILLUSTRATED]

5815219

$7.99

2

MNT-ECM,REAR,BLK

5438708-070

$10.39

3

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

4

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

5

SOLENOID, STARTER,C1100,W/WASHER

4014471

Unavailable

6

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

7

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

7

ASM-CHARGE PORT,BASE [INCL. PLUG, CAP, and NUT]

2415295

$40.46

8

CAP-CHARGE PORT

5417215

$12.79

9

NUT-CHARGE PORT

5456622

Unavailable

10

SWITCH-KEY,3 POS,SEALED [INCL. NUT, COVER, and KEY]

4017237

$51.99

10

KEY SWITCH KEY COVER

5433534

$12.35

10

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99
