- SPORTSMAN 450 HO (R02) - A22SEA50A1/A5
ENGINE, MOUNTING & LONG BLOCK - A22SEA50A1/A5 (C102223)

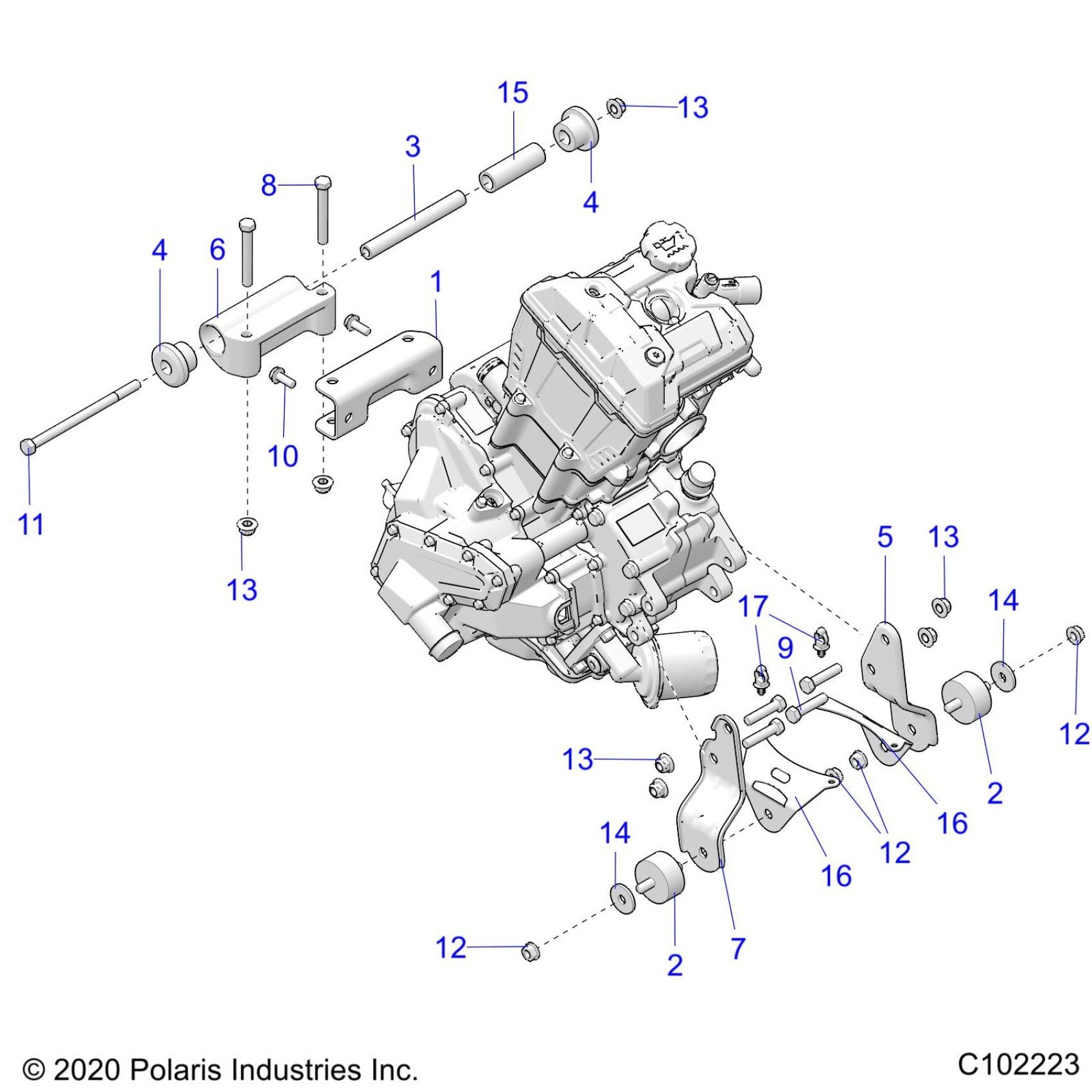

Polaris SPORTSMAN 450 HO (R02) - A22SEA50A1/A5 ENGINE, MOUNTING & LONG BLOCK - A22SEA50A1/A5 (C102223) Diagram
#
Description
Price
-
KIT, LONG BLOCK [NOTE: THE LONG BLOCK ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND OIL PUMP. PRIO
2208755
$4,162.39
1
MOUNT, ENGINE, REAR
5256926
$27.99
2
ISOLATOR-3/8-24M/M,60DURO
3024012
$39.99
2
ISOLATOR-3/8-24M/M,60DURO
3024012
$39.99
3
TUBE, ISOLATOR, REAR
5337887
$13.59
4
ISOLATOR-RUBBER,40D,SILICONE
5415404
$4.79
4
ISOLATOR-RUBBER,40D,SILICONE
5415404
$4.79
5
MOUNT, ENGINE, FRONT, LH
5259038
$14.39
6
MOUNT-ENGINE,REAR (CAST)
5634600
$71.99
7
MOUNT, ENGINE, FRONT, RH
5259039
$14.39
8
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$4.79
9
BOLT(10)
7515528
$8.79
10
Bolt, Hex, Flange
7518364
$1.59
11
SCREW, 3/87547423
7518481
$8.79
12
NUT-3/8-24 FLG LOC
7547263
$3.19
12
NUT-3/8-24 FLG LOC
7547263
$3.19
12
NUT-3/8-24 FLG LOC
7547263
$3.19
13
NUT, FLANGE, LOCK
7547108
$4.79
13
NUT, FLANGE, LOCK
7547108
$4.79
13
NUT, FLANGE, LOCK
7547108
$4.79
13
NUT, FLANGE, LOCK
7547108
$4.79
14
Washer, Flat
7555761
$2.39
14
Washer, Flat
7555761
$2.39
15
HOSE, ENGINE MOUNT
5415442
$3.99
16
BRKT-STATOR,BLK [TO 8/14/2023]
5268945-329
Unavailable
16
BRKT-STATOR,BLK [FRM 8/14/2023]
5274058-329
$12.79
16
BRKT-STATOR,BLK [TO 8/14/2023]
5268945-329
Unavailable
16
BRKT-STATOR,BLK [FRM 8/14/2023]
5274058-329
$12.79
17
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
