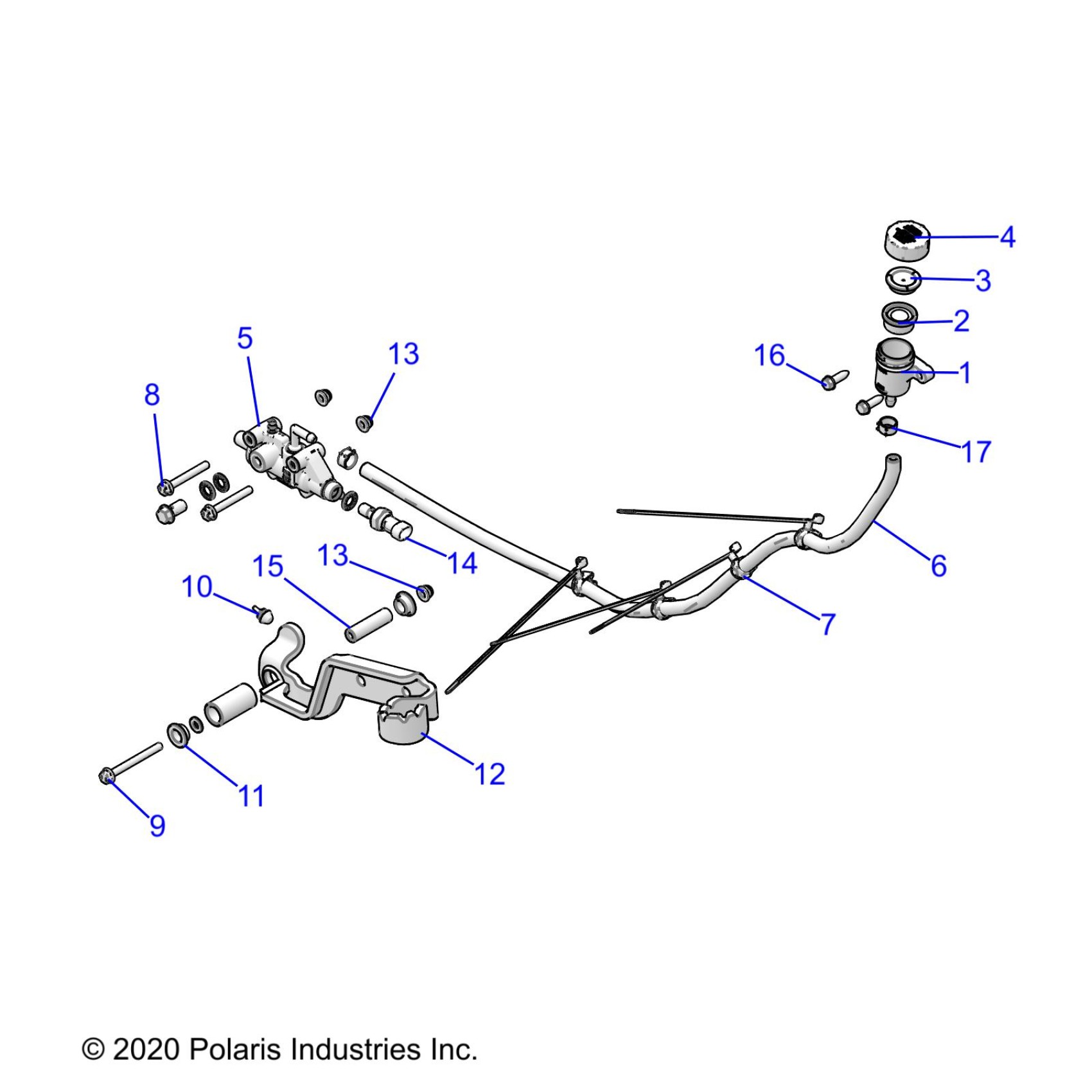

Polaris SPORTSMAN 450 HO EPS 50S (R02) - A23SEE50B1/B3 BRAKES, BRAKE PEDAL and MASTER CYLINDER - A23SEE50B1/B3 (C102406) Diagram

ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 2-4]

1911224

$36.41

CUP-RESERVOIR,BRAKE

5437040

$7.27

DIAPHRAGM, RESERVOIR, BRAKE

5413262

$4.84

RING, RESERVOIR, BRAKE

5437041

$5.65

CAP-RESERVOIR,BRAKE

5437039

$5.65

ASM-DIRMC,3/4,B/U-RING,90DEG [INCL. HOSE, CLAMPS]

1914172

$111.33

HOSE-RESERVOIR,BRAKE,805MM

1911267-805

$13.99

CLIP-MOD OMEGA,1X12MM OD HOSE

7082593

$3.97

SCR-HXFL-M6X1.0X50 10.9 ZFB

7521331-50

$2.38

SCR-HXFL-M6X1.0X65 10.9 ZFB

7521331-65

$3.17

BUMPER-GROMMET,1/4"

5412465

$1.59

BUSHING-PEDAL PIVOT

5439274

$12.70

WELD-BRAKE,PEDAL,BLK

1027737-067

$80.94

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

BRAKE SWITCH,REPAIR,FOOT [FOR USEW/FOOT MASTER CYLINDER][TO 6/12/2023]

2890648

$83.33

SWITCH-BRK,M10X1.25,SGL,30-40 [FOR USEW/FOOT MASTER CYLINDER][FRM 6/12/2023]

4081979

$83.33

SHAFT-PIVOT,BRAKE PEDAL ASM

5143138

$11.29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

HOSE CLAMP, RED

7080003

$1.19
