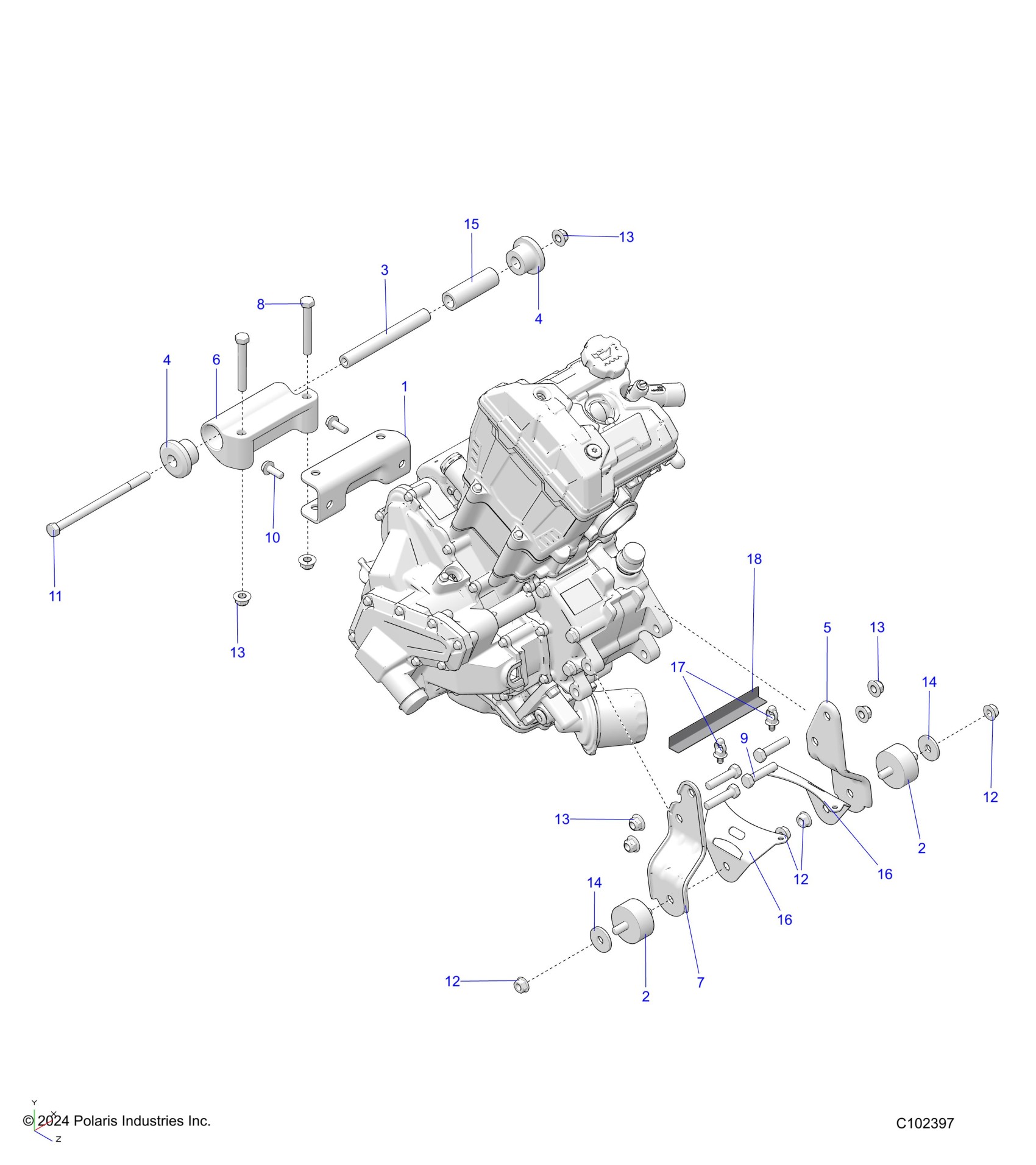

Polaris SPORTSMAN 450 EPS HO 50S (R02) - A25SEE50B1/B3 ENGINE, MOUNTING & LONG BLOCK - A25SEE50B1/B3 (C102397) Diagram

KIT, LONG BLOCK [NOTE: THE LONG BLOCK ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND OIL PUMP. PRIO

2208755

$4,162.39

MOUNT, ENGINE, REAR

5256926

$27.99

ISOLATOR-3/8-24M/M,60DURO

3024012

$39.99

ISOLATOR-3/8-24M/M,60DURO

3024012

$39.99

TUBE, ISOLATOR, REAR

5337887

$13.59

ISOLATOR-RUBBER,40D,SILICONE

5415404

$4.79

ISOLATOR-RUBBER,40D,SILICONE

5415404

$4.79

MOUNT, ENGINE, FRONT, LH

5259038

$14.39

MOUNT-ENGINE,REAR (CAST)

5634600

$71.99

MOUNT, ENGINE, FRONT, RH

5259039

$14.39

SCR-3/8-24X2 3/4HX HD CP GR5-Y

7515417

$4.79

BOLT(10)

7515528

$8.79

Bolt, Hex, Flange

7518364

$1.59

SCREW, 3/87547423

7518481

$8.79

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT, FLANGE, LOCK

7547108

$4.79

NUT, FLANGE, LOCK

7547108

$4.79

NUT, FLANGE, LOCK

7547108

$4.79

NUT, FLANGE, LOCK

7547108

$4.79

Washer, Flat

7555761

$2.39

Washer, Flat

7555761

$2.39

HOSE, ENGINE MOUNT

5415442

$3.99

BRKT-STATOR,BLK

5274058-329

$12.79

BRKT-STATOR,BLK

5274058-329

$12.79

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

TRAY-ROUTING,150X15X15

7082907

$6.39
