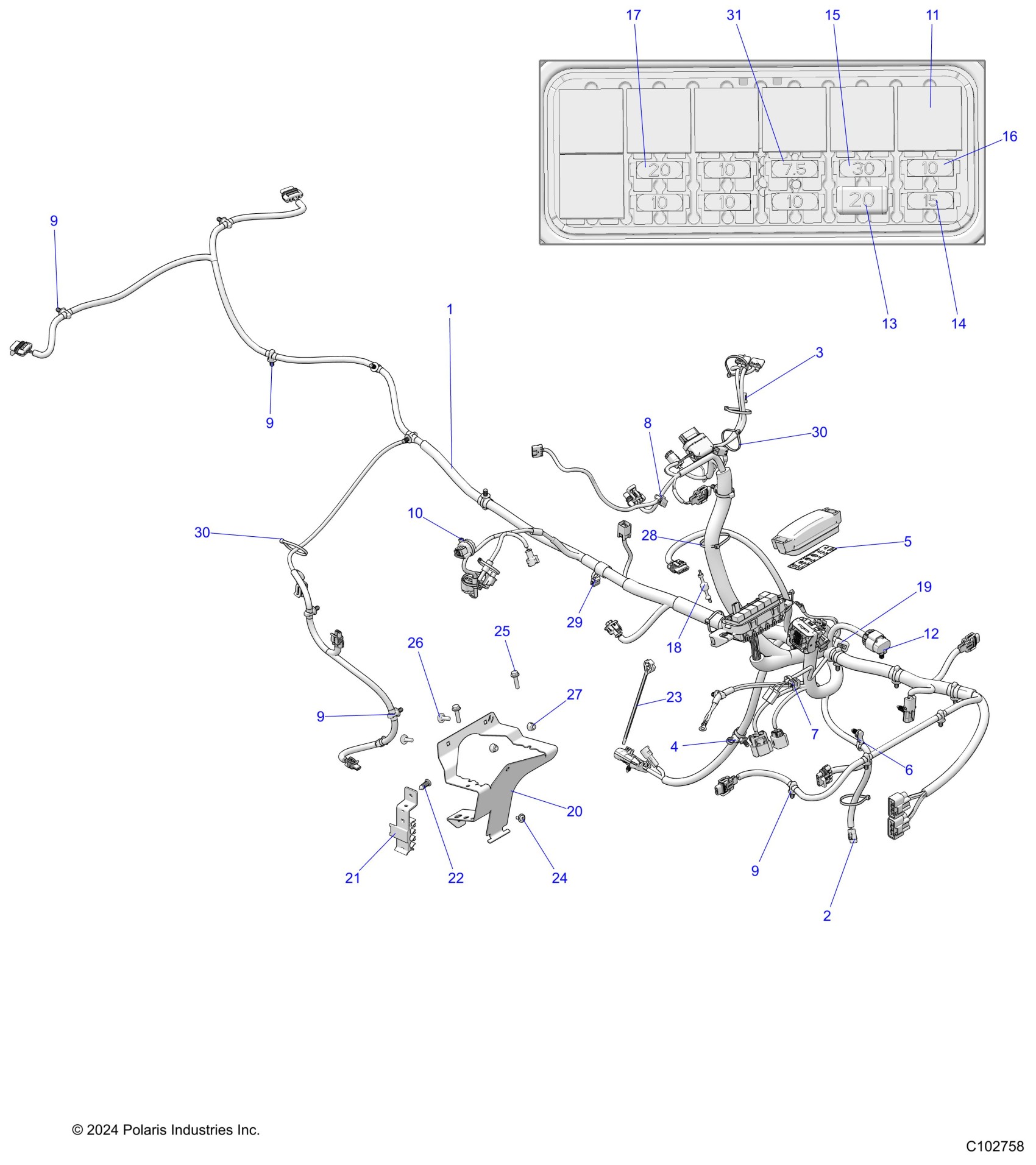

Polaris SPORTSMAN 450 EPS HO 50S (R02) - A25SEE50B1/B3 ELECTRICAL, MAIN WIRE HARNESS - A25SEE50B1/B3 (C102758) Diagram

#

Description
Price

1

HARN-MAIN,SPMN,EPS,1UP [INCL. 1-19,30]

2416121

$1,349.99

2

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$9.76

3

CONNECTOR-CAP, WINCH SWITCH

4014890

$10.65

4

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$4.03

5

LABEL-FUSE BOX

7300335

Unavailable

6

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

7

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.52

8

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.14

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

12

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

13

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

14

FUSE-15AMP,MINI BLADE

4010859

$8.08

15

FUSE-MAIN,30 AMP

2434015

$8.87

16

FUSE-IGNITION,10 AMP

2434016

$5.65

17

FUSE-PARK,20 AMP

2434017

$8.08

18

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

19

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$40.46

20

BRKT-FUSE BLOCK,BLK

5268539-067

$44.99

21

CLIP-ROUTING,MIDFRAME

5457074

$3.97

22

CLIP-XMAS TREE, .945 X .228

7670101

$2.38

23

CABLE-TIE,M10X1.5 STUD MNT

7082649

$3.97

24

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.19

25

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

26

SCREW, RH CARRIAGE

7519249

$3.17

27

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

28

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

29

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32
