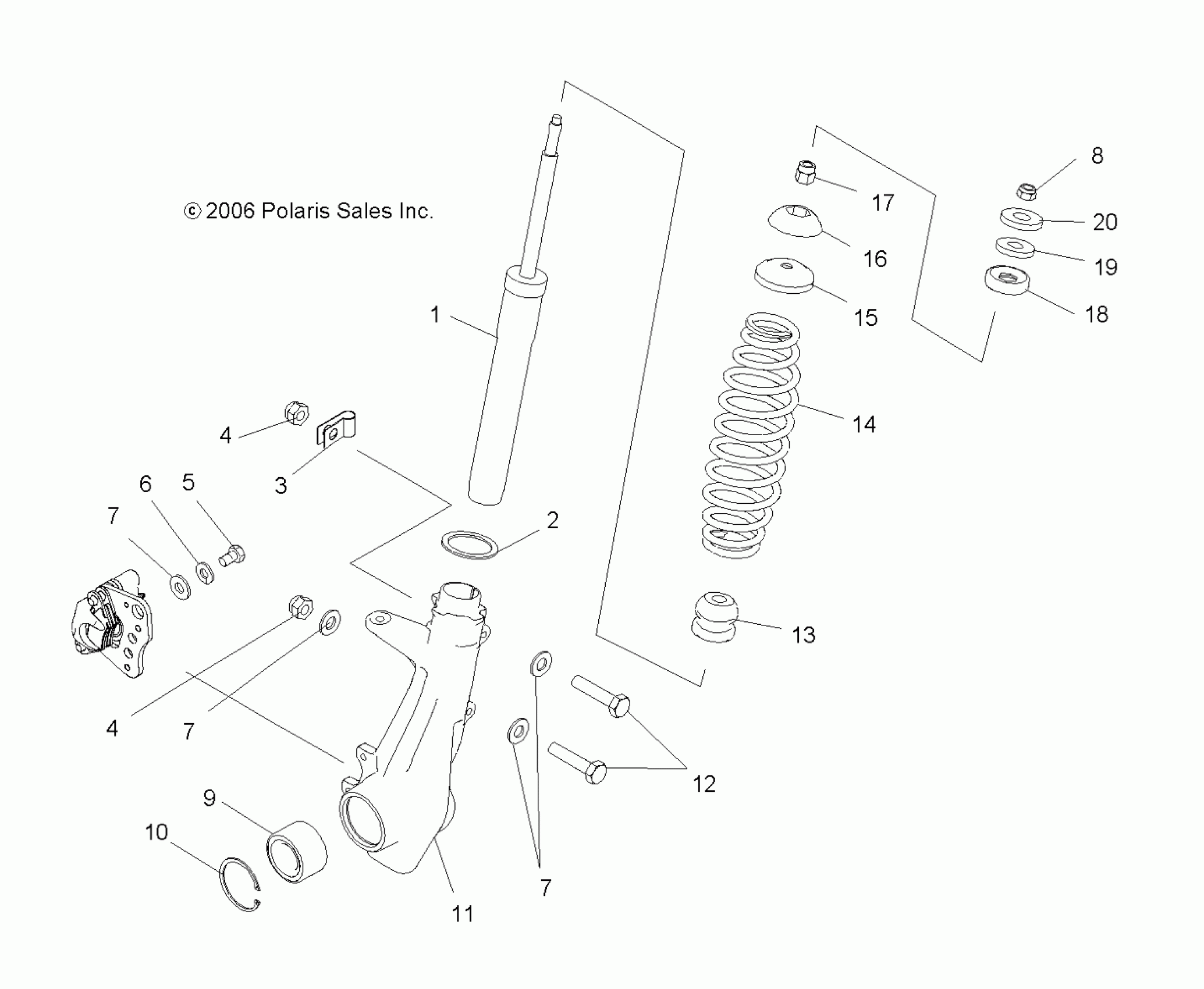

Polaris SPORTSMAN 450 - A07MH46AA/AZ SUSPENSION, STRUT, FRONT - A07MH46AA/AZ (49ATVSTRUTSP450) Diagram

#

Description
Price

1

STRUT, FRONT

7041762

$123.99

2

WASHER-2.06X2.62X.105-Y

5211115

$3.99

3

CLAMP-CABLE

7080367

$2.39

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

SCREW, CAP

7512365

$1.49

6

WASHER, SPRING LOCK

7552901

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

9

Bearing, Axle Tube, Hubstrut

3514342

Unavailable

10

RING, RETAINING

7710507

$2.39

11

Asm., Hubstrut, RH [Incl. 9,10 and Ball Joint]

1822826

$303.99

11

Asm., Hubstrut, LH [Incl. 9,10 and Ball Joint]

1822825

$303.99

12

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

13

BUMPER-MCU,17.8MM ID

5412665

$6.39

14

SPRING, COMPRESSION, BLACK

7043247-067

$91.99

15

RETAINER-SPRING,STRUT

5243364

$19.99

16

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

17

SPACER

5132062

$19.99

18

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

19

SPACER-RUBBER

5810291

$3.99

20

WASHER

7555749

$1.49
