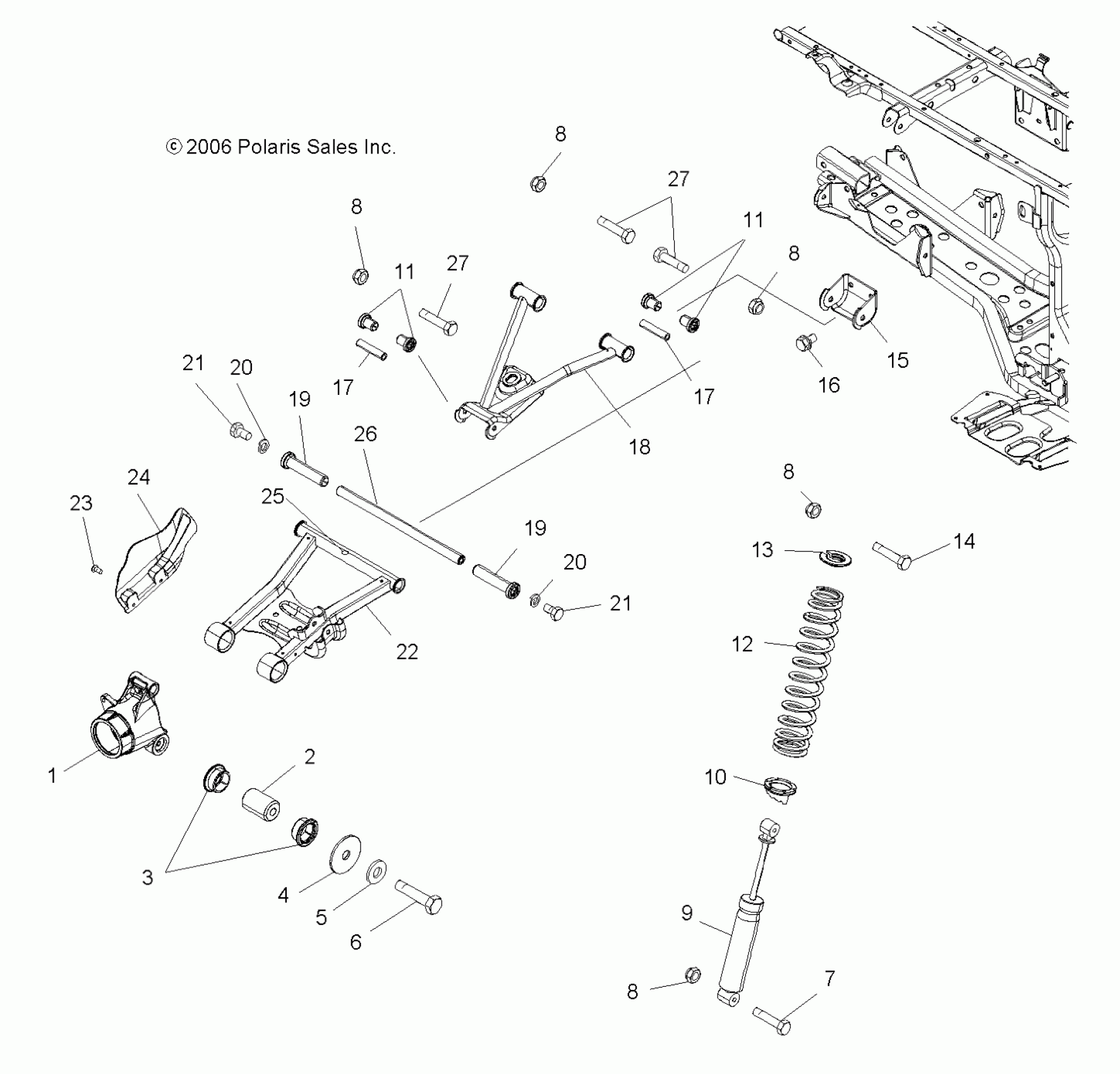

Polaris SPORTSMAN 450 - A07MH46AA/AZ SUSPENSION, REAR - A07MH46AA/AZ (49ATVSUSPRRSP450) Diagram

#

Description
Price

1

CARRIER, WHEEL BEARING

5135563

$71.43

2

Bushing, Bearing Carrier

5631142

$23.81

3

Bushing, Control, Lower

5434550

$4.76

4

WASHER, FLAT

7555740

$1.59

5

WASHER-LOCK, 7/16-B

7552614

$1.59

6

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

7

Screw

7515415

$1.19

8

Nut, Nylok

7542439

$1.19

8

Nut, Nylok

7542439

$1.19

8

Nut, Nylok

7542439

$1.19

8

Nut, Nylok

7542439

$1.19

8

Nut, Nylok

7542439

$1.19

9

SHOCK, REAR

7043100

$97.76

10

CAM, ADJUSTING, SPRING

5630551

$36.41

11

Bushing, A-Arm, Short

5434548

$2.38

11

Bushing, A-Arm, Short

5434548

$2.38

12

Spring, Compression, Rear, Black

7043091-067

$97.76

13

Retainer, Spring

5631887

$10.32

14

Screw

7515433

$1.59

15

Bracket, A-Arm Pivot

5247345

Unavailable

16

Bolt

7518364

$1.59

17

SHAFT, A-ARM, SHORT

5020826

$12.13

17

SHAFT, A-ARM, SHORT

5020826

$12.13

18

Arm, Control, Upper, Black, LH

1014320-067

$116.17

18

Arm, Control, Upper, Black, RH

1014321-067

$116.17

19

Bushing, A-Arm, Long

5434551

$5.56

19

Bushing, A-Arm, Long

5434551

$5.56

20

Washer, Spring Lock

7552603

$0.79

20

Washer, Spring Lock

7552603

$0.79

21

Screw

7512492

$1.19

21

Screw

7512492

$1.19

22

Control, Lower, Black, LH

1015117-067

$145.22

22

Control, Lower, Black, RH

1015118-067

$145.22

23

Screw

7512084

$1.19

24

SHIELD, CV REAR, BLACK, LH

5435008-070

$24.27

24

SHIELD, CV REAR, BLACK, RH

5435009-070

$24.27

25

Fitting, Lubrication

7080433

$1.19

26

Shaft, A-Arm

5133806

$33.24

27

BOLT

7515472

$2.38

27

BOLT

7515472

$2.38
