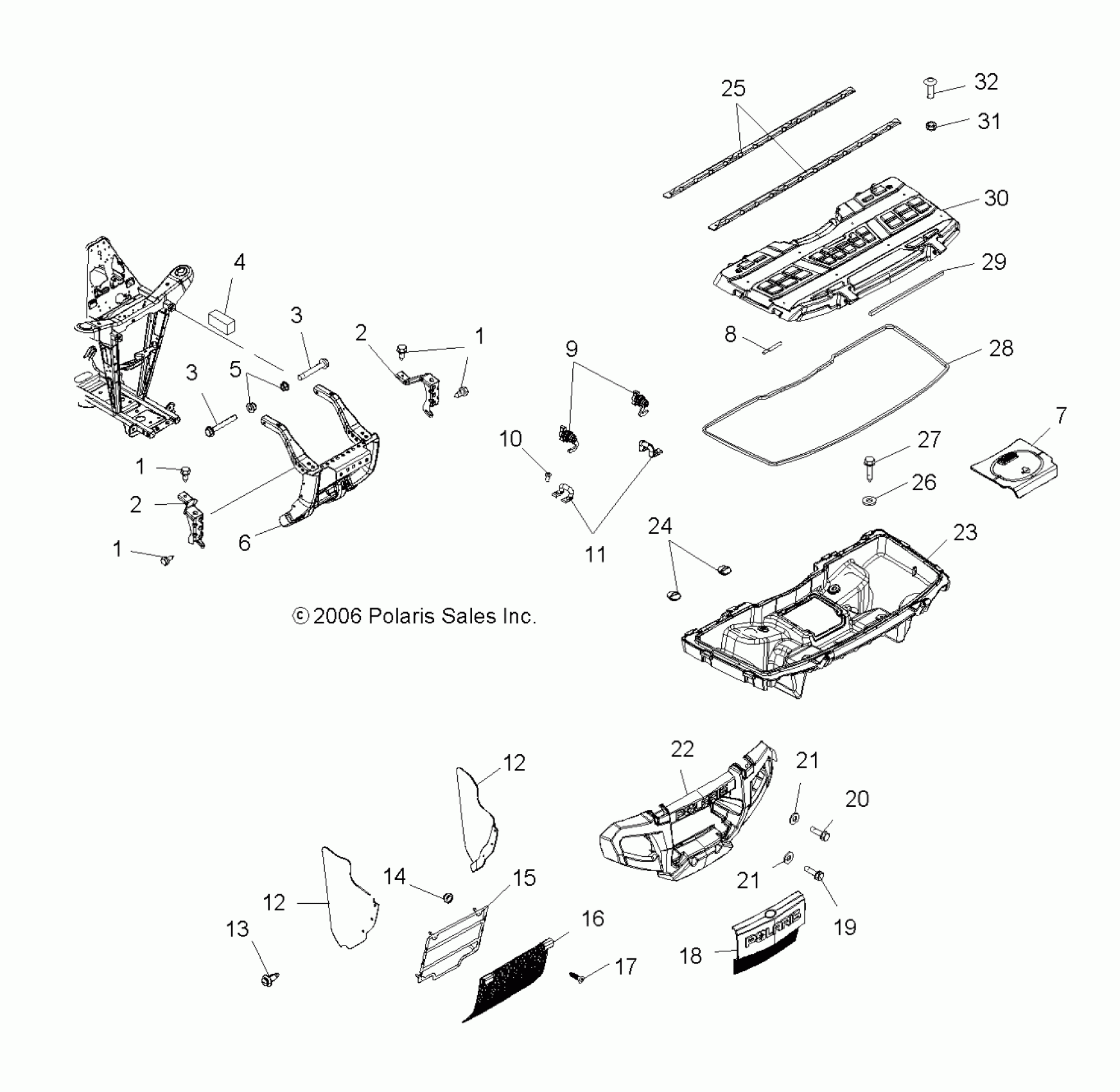

Polaris SPORTSMAN 450 - A07MH46AA/AZ STORAGE, FRONT and BUMPER MOUNTING - A07MH46AA/AZ (49ATVBUMPERSP450) Diagram

#

Description
Price

1

SCREW

7515399

$1.19

1

SCREW

7515399

$1.19

1

SCREW

7515399

$1.19

2

Support, Rack, Black, LH

1014591-067

$204.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

3

BOLT, FLANGE

7518341

$4.76

3

BOLT, FLANGE

7518341

$4.76

4

PLUG, FRAME

5810467

Unavailable

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

6

Guard, Brush, Black

1015033-067

$319.51

7

Cover, Radiator, Front

5413189

Unavailable

8

Pin, Hinge, Front

5134576

$6.35

9

Latch, LH [If built before 1/25/07]

7081241

Unavailable

9

Latch, LH [If built after 1/25/07]

7081421

$7.84

9

Latch, RH [If built before 1/25/07]

7081242

Unavailable

9

Latch, RH [If built after 1/25/07]

7081422

$12.21

10

SCREW

7512076

$1.19

11

Latch, Wire

5334257

$10.51

12

Shield, Side, Radiator, LH

5434314

$44.99

12

Shield, Side, Radiator, RH

5434315

Unavailable

12

Shield, Side, Radiator, LH

5434314

$44.99

12

Shield, Side, Radiator, RH

5434315

Unavailable

13

Rivet

7661855

$1.19

14

Grommet, Rubber Mount

5412504

$3.97

15

Cover, Radiator

5435046

$52.60

16

Grill, Brush Guard, Black

5247507-067

$64.99

17

Screw

7518046

Unavailable

18

Panel, Bumper, Front, Black

5435357-070

$56.65

19

Screw

7518383

$3.97

20

Bolt

7518382

$5.69

21

Washer, Flat

7556341

$1.99

21

Washer, Flat

7556341

$1.99

22

Asm., Bumper, Front, Black [Incl. Reflector Decal][If built before 9/01/06]

2633271-070

$234.99

22

Asm., Bumper, Front, Black [Incl. Reflector Decal][If built after 9/01/06]

2633520-070

$234.99

23

Asm., Box, Lower, Front [Incl. 7,11,24,28]

2633377

$384.99

24

PLUG-COMPARTMENT [TO 1/11/2022]

5412981

$3.79

24

PLUG-COMPARTMENT [FR 1/11/2022]

5418084

$3.79

25

Channel, Lid, Front, Flat Black Wrinkle

5247653-418

$77.44

26

Washer, Flat

7556175

$5.99

27

SCREW

7517208

$1.98

28

Seal

5521693

$28.32

29

Seal, Lid/Bumper

5521706

$28.32

30

Asm., Front Cover [Incl. 28,29 and Warning Decal]

2633162

$157.84

31

Nut, Nylok

7542122

$1.19

32

Screw

7518427

$1.19
