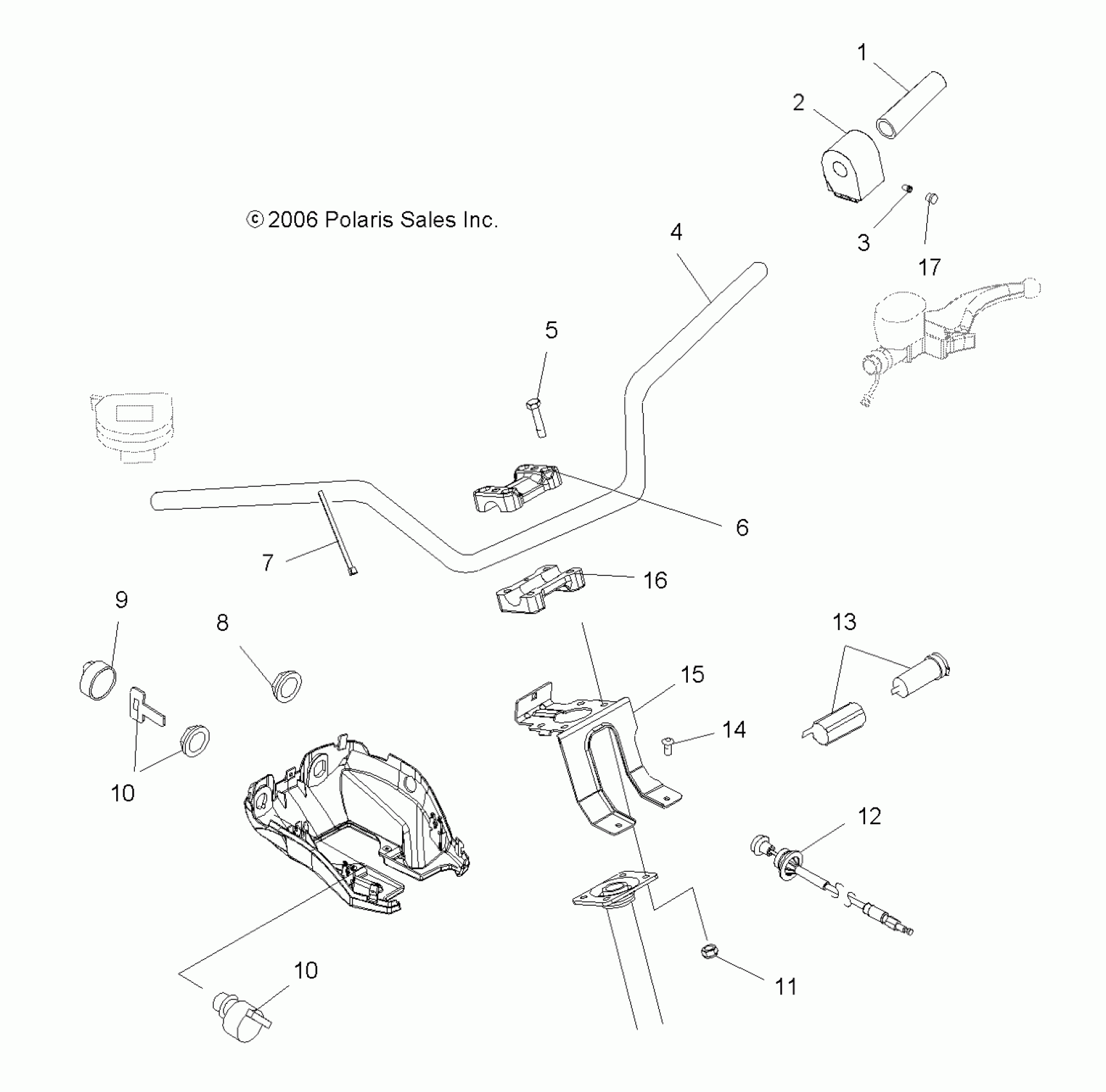

Polaris SPORTSMAN 450 - A07MH46AA/AZ HANDLEBAR and CONTROLS - A07MH46AA/AZ (49ATVHANDLEBARSP450) Diagram

#

Description
Price

1

Grip, Handlebar, Black

5412900-070

$28.32

2

Control, LH, Hi/Lo/Off

4011385

$47.49

3

SCREW, SET

7517625

$4.76

4

TUBE, HANDLEBAR, BLACK

5244581-067

$99.99

5

SCREW

7515189

$1.19

6

BLOCK, HANDLEBAR, PEGGED

5631972

$32.37

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

Nut, Choke

7080922

$3.17

9

KEY SWITCH KEY COVER

5433534

$13.75

10

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

10

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

10

Switch, Key, 3 Position [Incl. Key]

4011002

$109.27

10

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

10

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

10

Switch, Key, 3 Position [Incl. Key]

4011002

$109.27

11

Nut, Nylok

7542122

$1.19

12

CABLE, CHOKE

7081171

$80.94

13

Receptacle, Pod Mount, 12V

4010638

$28.32

14

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

15

BRACKET, POD MOUNTING, BLACK

5244969-067

$44.99

16

BLOCK, HANDLEBAR

5631973

$32.37

17

PLUG, HOLE

5432952

$6.46
