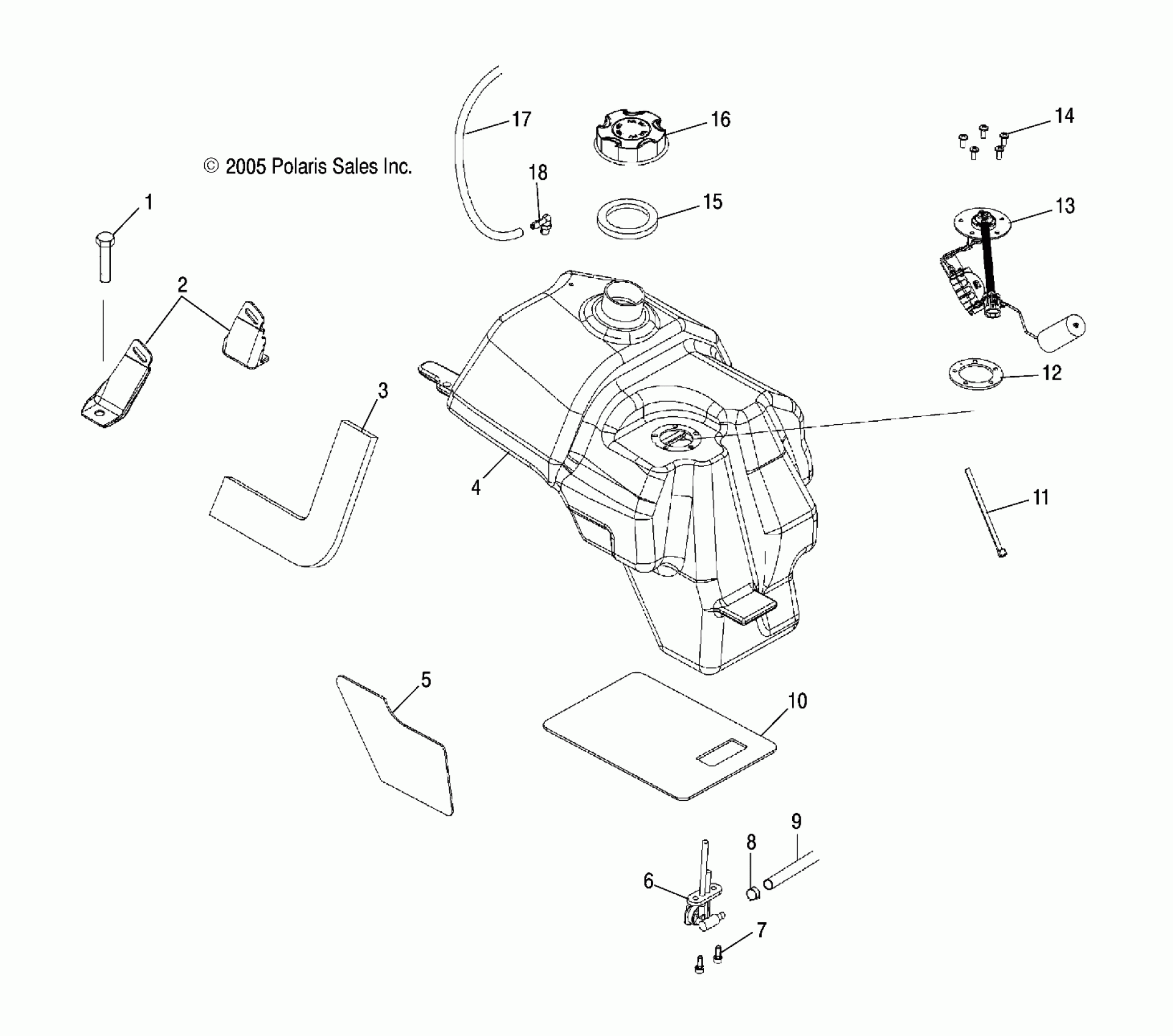

Polaris SPORTSMAN 450 - A07MH46AA/AZ FUEL SYSTEM - A07MH46AA/AZ (4999200059920005A14) Diagram

Description

Price

Screw

7515179

$2.39

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

SEAL, FOAM

5812265

$27.99

Asm., Fuel Tank w/Sender [Incl. 5-14]

2520556

Unavailable

Foil

5813044

$20.22

Valve, Fuel, On/Off/Reserve

7052331

$35.99

Screw

7515136

$1.49

HOSE CLAMP, RED

7080003

$1.49

HOSE, FUEL

8450117-250

Unavailable

Foil

5813045

$19.99

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

Gasket

5810858

$74.99

Sender, Fuel

2410554

Unavailable

Screw

7518257

$3.79

GASKET

5812123

$5.65

Cap, Gas Tank

5433687

$20.22

LINE, FUEL

8360009-600

Unavailable

Vent, Tank

5431053

$19.99
