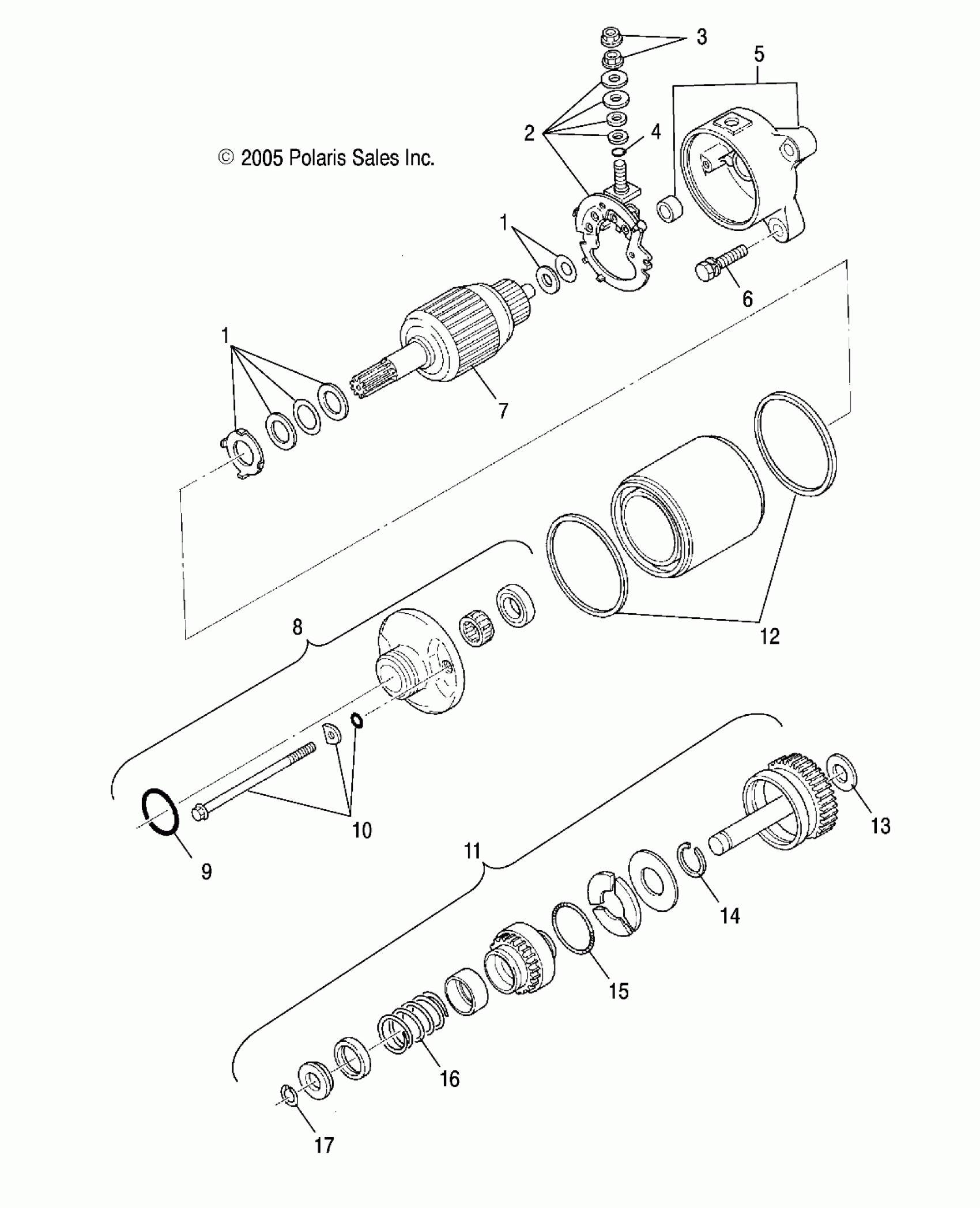

Polaris SPORTSMAN 450 - A07MH46AA/AZ ENGINE, STARTING MOTOR - A07MH46AA/AZ (4999200059920005E01) Diagram

#

Description
Price

-

Asm., Starting Motor [Incl. 1-5,7-10,12]

3084981

Unavailable

1

Washer Set

3084982

Unavailable

1

Washer Set

3084982

Unavailable

2

Brush, Carbon Set

3088169

$115.99

3

NUT, FLANGE

3083649

$3.99

4

O-RING

3084408

Unavailable

5

Asm., Cover, Rear

3085034

$91.99

6

ASM., BOLT AND WASHER

3082038

$3.99

7

Asm., Armature

3085353

Unavailable

8

Asm., Front Bracket [Incl. 9]

3085033

$137.60

9

O-Ring

3240114

$5.59

10

Asm., Bolt Set [Incl. 4]

3084983

$23.99

11

Asm., Gear Shaft [Incl. 14-17]

3087030

Unavailable

12

RING, RUBBER

3084405

Unavailable

13

WASHER

7555908

$3.17

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19
