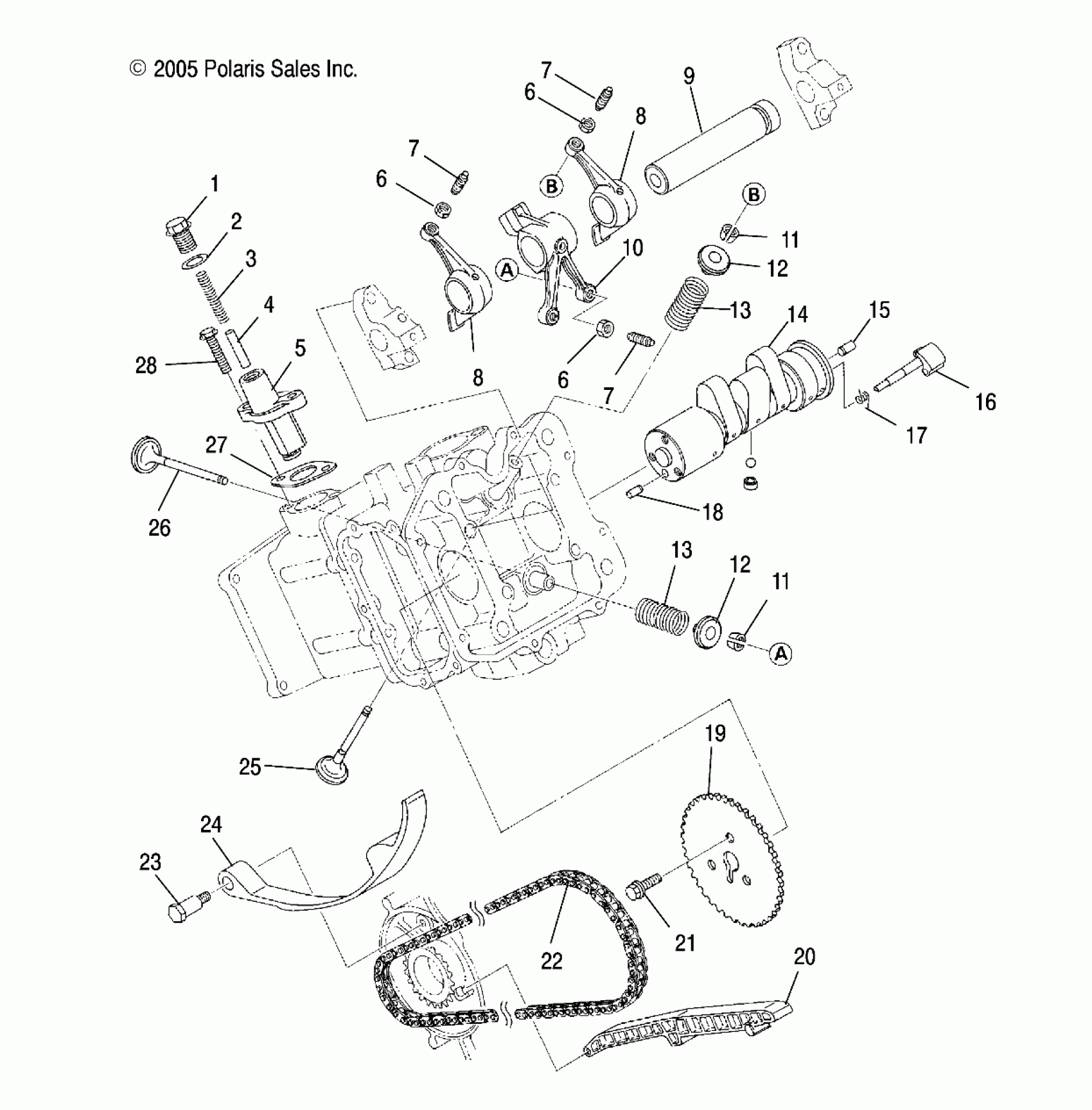

Polaris SPORTSMAN 450 - A07MH46AA/AZ ENGINE, INTAKE and EXHAUST - A07MH46AA/AZ (4999200059920005D09) Diagram

#

Description
Price

1

PLUG

3087129

Unavailable

2

GASKET, PLUG

3087130

$11.19

3

SPRING, TENSIONER

3087131

Unavailable

4

PIN

3087132

$10.39

5

Asm., Tensioner [Incl. 1-4]

3086493

Unavailable

6

Nut

3084912

$3.99

6

Nut

3084912

$3.99

6

Nut

3084912

$3.99

7

Screw, Adjusting

3084911

$9.59

7

Screw, Adjusting

3084911

$9.59

7

Screw, Adjusting

3084911

$9.59

8

ASM., ROCKER ARM, INTAKE [INCL. 6,7]

3084910

$115.99

8

ASM., ROCKER ARM, INTAKE [INCL. 6,7]

3084910

$115.99

9

SHAFT, ROCKER

3084909

$51.99

10

Asm., Rocker Arm, Exhaust [Incl. 6,7]

3084913

$131.99

11

VALVE, COLLET

3084908

$3.99

11

VALVE, COLLET

3084908

$3.99

12

RETAINER, VALVE SPRING

3087203

Unavailable

12

RETAINER, VALVE SPRING

3087203

Unavailable

13

SPRING, VALVE

3086892

$23.99

13

SPRING, VALVE

3086892

$23.99

14

Asm., Camshaft [Incl. 15-18]

3085855

$303.99

15

PIN, DOWEL

3086838

$7.19

16

LEVER, RELEASE

3085348

Unavailable

17

SPRING, RETURN

3085076

Unavailable

18

PIN, DOWEL

3084899

$7.19

19

SPROCKET 2

3084914

$75.99

20

GUIDE, CHAIN

3084916

Unavailable

21

ASM., BOLT AND WASHER

3081657

$4.79

22

CHAIN, TIMING

3084915

$95.99

23

ASM., BOLT, PIVOT LEVER

3084924

Unavailable

24

LEVER

3084917

$91.99

25

VALVE, INTAKE

3085349

$63.99

26

VALVE, EXHAUST

3085412

$87.99

27

GASKET, TENSIONER

3086448

$6.39

28

BOLT, FLANGE

3083361

Unavailable
