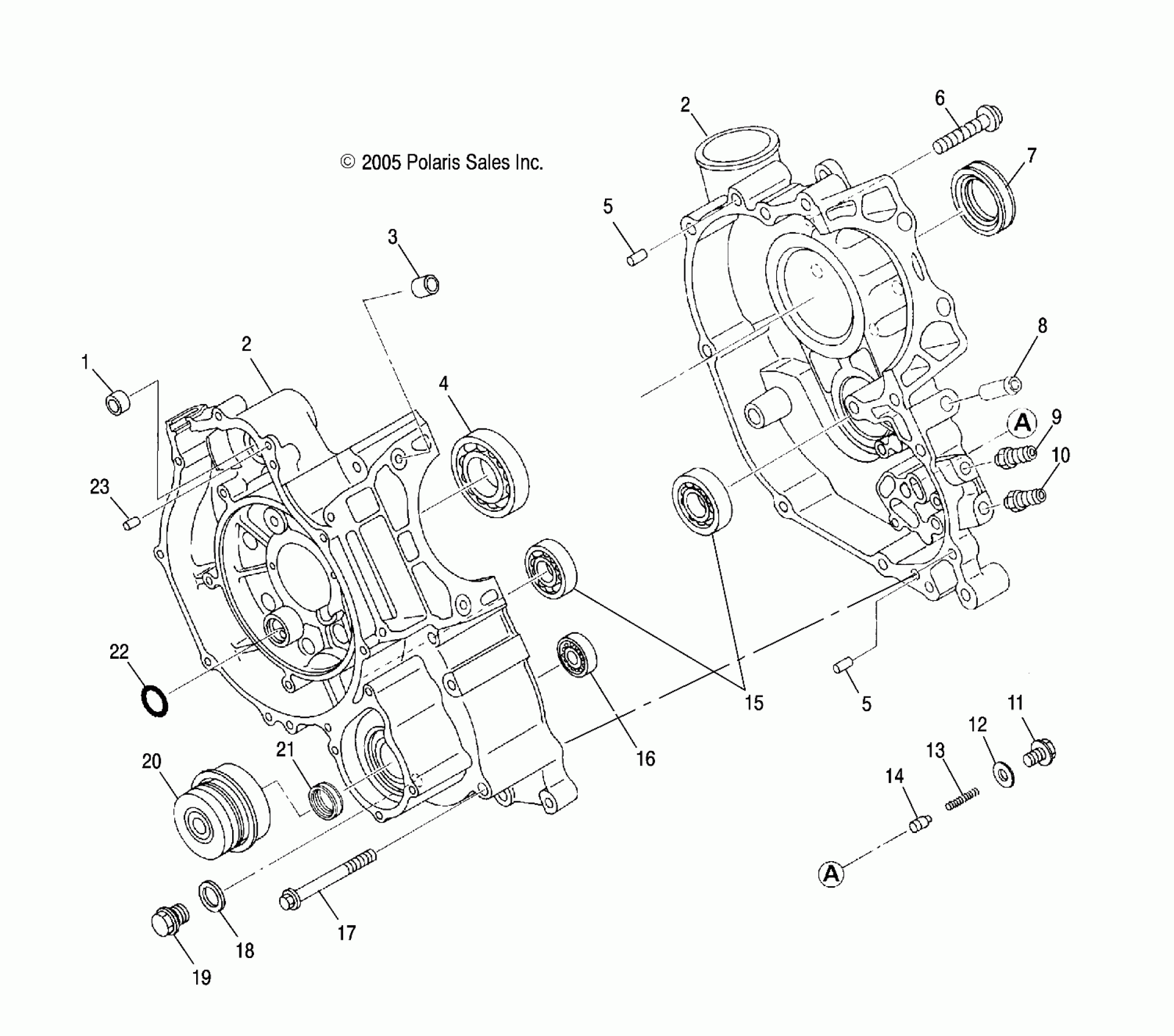

Polaris SPORTSMAN 450 - A07MH46AA/AZ ENGINE, CRANKCASE - A07MH46AA/AZ (4999200059920005D04) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

Asm., Crankcase [Incl. 1,4,5,7,8,15-17,20,21,23]

3089240

$1,199.99

2

Asm., Crankcase [Incl. 1,4,5,7,8,15-17,20,21,23]

3089240

$1,199.99

3

PIPE, KNOCK

3087266

Unavailable

4

BEARING, BALL

3080676

Unavailable

5

Pin, Dowel

3084840

$6.46

5

Pin, Dowel

3084840

$6.46

6

Asm., Screw and Washer

3084205

$3.97

7

SEAL, OIL

3084839

$28.32

8

PIPE, AIR BREATHER

3085525

Unavailable

9

UNION

3087154

Unavailable

10

Union

3084842

$32.37

11

PLUG

3084845

Unavailable

12

GASKET, ALUMINUM

3084846

$5.65

13

SPRING

3084844

$4.84

14

VALVE, ONE WAY

3086810

Unavailable

15

BEARING, BALL

3084834

Unavailable

16

BEARING, BALL

3084835

$31.75

17

BOLT, FLANGE

3084841

$3.17

18

GASKET

3082956

$4.84

19

PLUG

3086749

Unavailable

20

SEAL, MECHANICAL

3084837

$68.79

21

SEAL, OIL

3084836

Unavailable

22

O-RING

3084847

$6.46

23

PIN, DOWEL

3086838

$7.14
