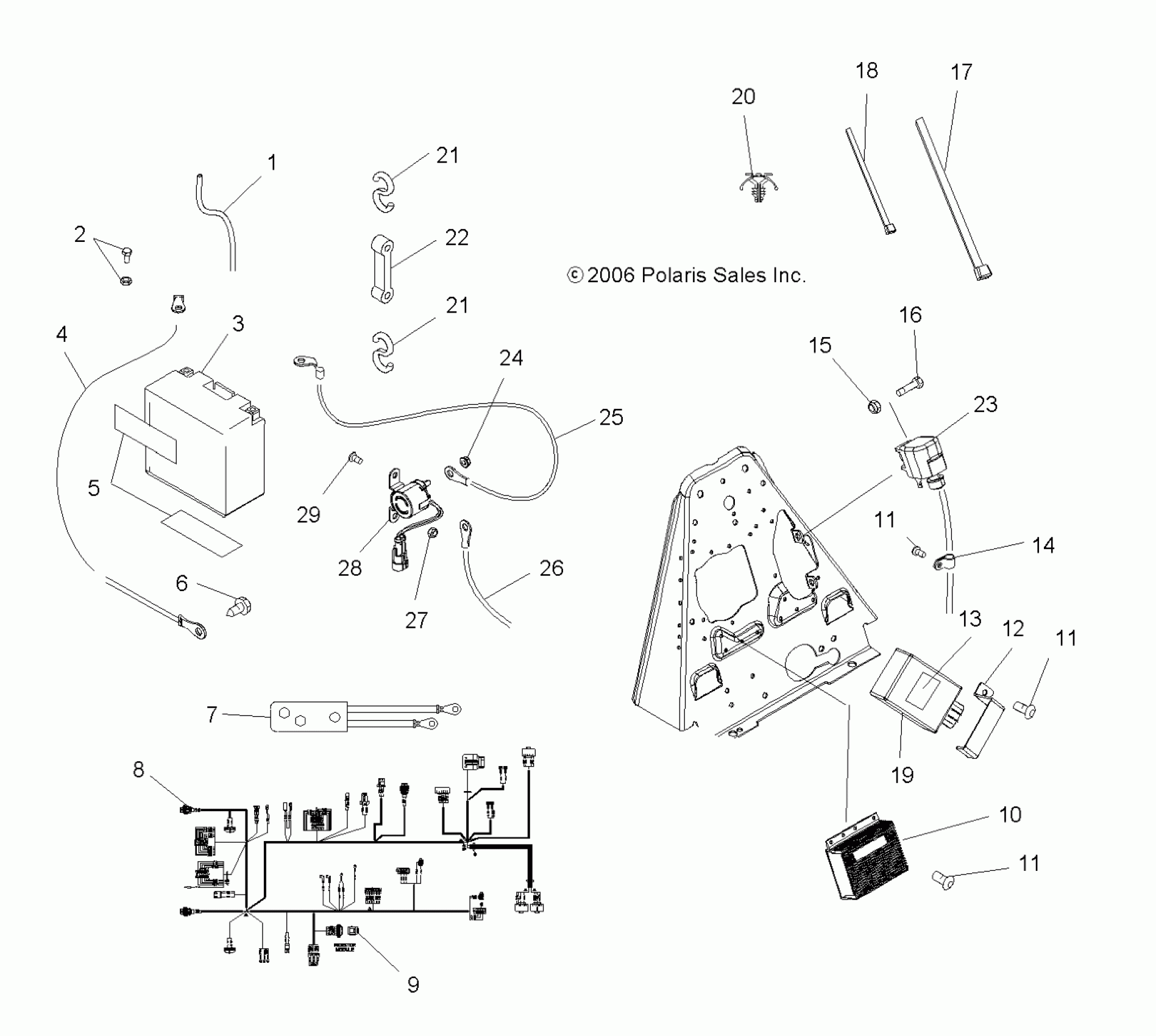

Polaris SPORTSMAN 450 - A07MH46AA/AZ ELECTRICAL - A07MH46AA/AZ (49ATVELECTSP450) Diagram

#

Description
Price

1

Tube, Vent

5432077

$8.08

2

Kit, Battery Bolt

2200361

$3.99

3

Battery

4140006

$99.99

4

Cable, Elect.

4010074

Unavailable

5

PAD-BATTERY

5810290

$7.27

6

Bolt

7512232

$1.49

7

Harness, Winch [If built before 9/04/06]

2410535

$93.08

7

Harness, Winch [If built after 9/04/06]

2410837

$93.08

8

Kit, Fusible Link, .8 MM

2202607

$39.99

8

Harness, Main [Incl. 9, Fuse Link Kit]

2410795

$739.99

9

Kit, Harness, Resistor Module

2204890

$127.99

10

Control, Module

4011568

$487.49

11

SCREW

7512024

$4.79

11

SCREW

7512024

$4.79

11

SCREW

7512024

$4.79

12

BRACKET, CDI

5246747

$7.99

13

Pad

5810317

Unavailable

14

CLAMP, CABLE

7080960

$4.79

15

Nut, Nylok

7541925

$1.49

16

BOLT

7512007

$3.99

17

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CDI

3089775

Unavailable

20

MOUNT, CABLE TIE

7080965

$7.19

21

Hook, Battery Strap

7010032

$1.59

21

Hook, Battery Strap

7010032

$1.59

22

STRAP, BATTERY HOLDDOWN

5412499

$4.62

23

Coil, Ignition

3089239

$195.99

24

NUT, HEX, FLANGE

7547270

$3.99

25

Cable, Battery/Solenoid

4010471

Unavailable

26

Cable, Solenoid/Starter

4010093

$47.99

27

Nut, Nylok

7518287

$3.19

28

Solenoid, Starter

4010947

Unavailable

29

Screw

7512084

$1.49
