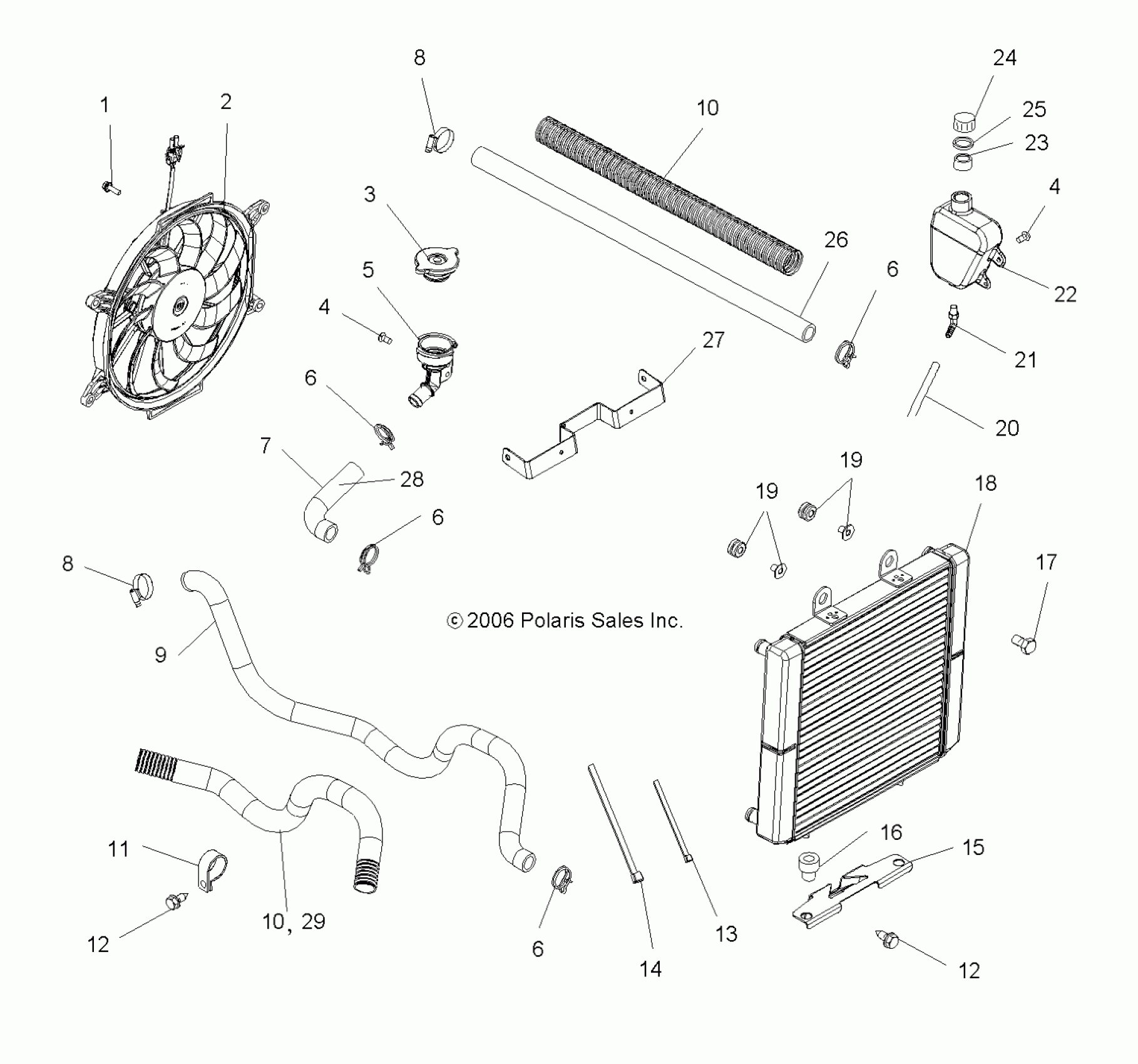

Polaris SPORTSMAN 450 - A07MH46AA/AZ COOLING SYSTEM - A07MH46AA/AZ (49ATVCOOLSP450) Diagram

#

Description
Price

1

Bolt

7517975

$5.59

2

Asm., Fan and Motor

2410383

$189.59

3

Cap, Pressure

1240044

Unavailable

4

Screw

7512084

$1.49

4

Screw

7512084

$1.49

5

NECK, FILLER

5412402

$23.99

6

Clamp

7080826

$4.79

6

Clamp

7080826

$4.79

6

Clamp

7080826

$4.79

6

Clamp

7080826

$4.79

7

Hose, Filler Neck

5412405

Unavailable

8

CLAMP, HOSE

7080696

$5.59

8

CLAMP, HOSE

7080696

$5.59

9

Hose, Engine, Lower

5412404

$61.77

10

Guard, Hose, Plastic [Qty. 1 used if built after 9/04/06]

5521550

Unavailable

10

Guard, Hose, Plastic [Qty. 1 used if built after 9/04/06]

5521550

Unavailable

11

Clamp, Hose

7080908

$8.99

12

SCREW

7517386

$1.49

12

SCREW

7517386

$1.49

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

Bracket, Radiator, Lower, Black

5247047-067

$74.99

16

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

17

Screw

7515179

$2.39

18

Radiator, Crossflow [If built after 9/04/06]

1240305

$409.26

18

Radiator, Crossflow [If built before 9/04/06]

1240152

Unavailable

19

ASM., GROMMET AND INSERT

5411975

$3.19

19

ASM., GROMMET AND INSERT

5411975

$3.19

20

Line, Fuel

8450003-1525

$84.99

21

FITTING, 90 DEGREE

7052065

$7.19

22

Tank, Surge

5431673

Unavailable

23

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

24

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

Hose, Engine, Upper

5412403

$54.04

27

Bracket, Radiator, Upper, Black

5246754-067

$54.99

28

Tubing, Convoluted

5521602

Unavailable

29

Guard, Hose [If built after 9/04/06]

5521750

Unavailable
